Cubic Boron Bitride-CBN abrasive is knwon as the second hardest superabrasive material,cubic boron nitride is the ideal material to used in resin,metal,vitrified and electroplated bond CBN grinding tools for maching of steel, HSS tools and hard alloys.
Features of A01 grade CBN abrasive:

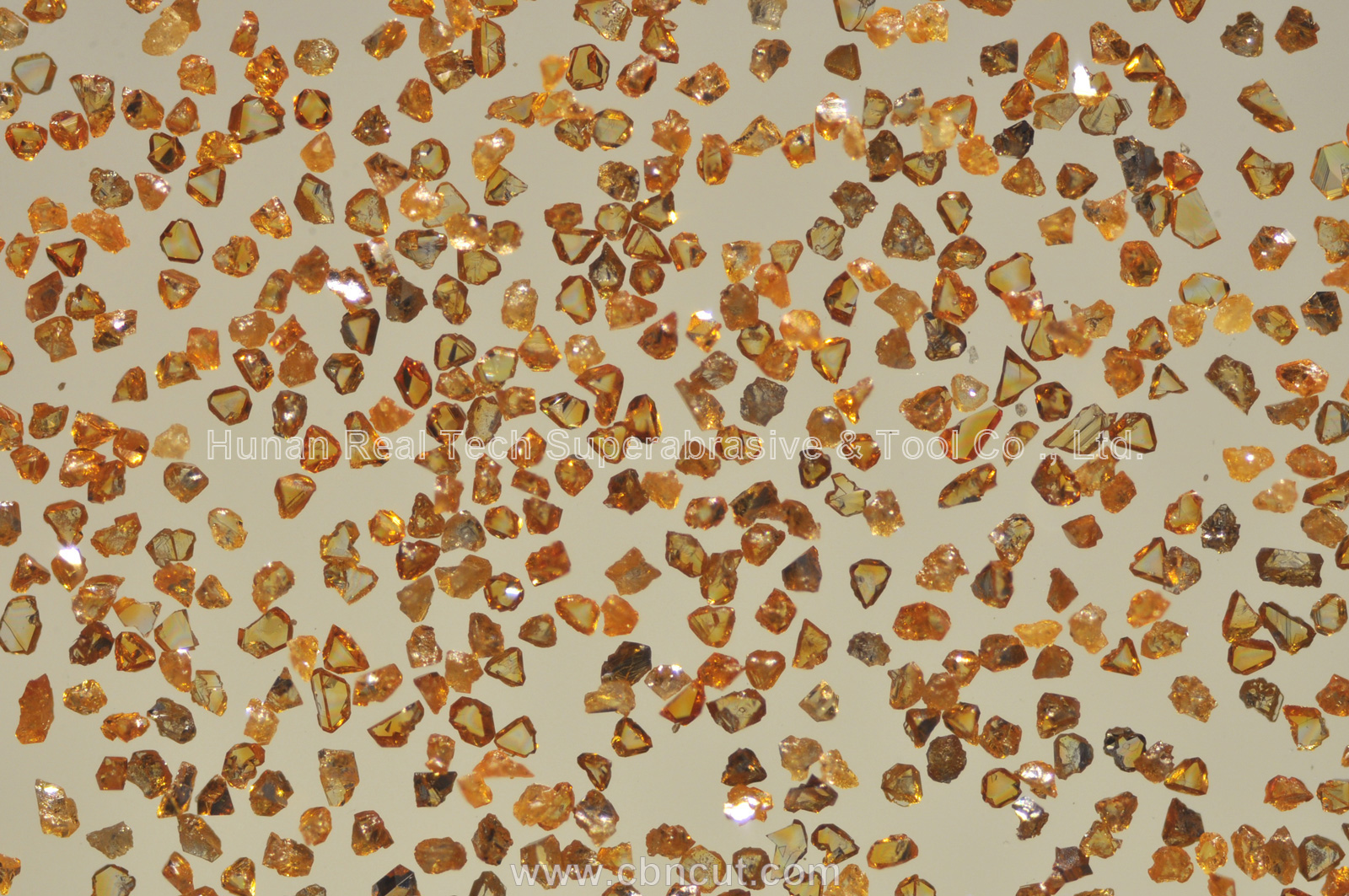

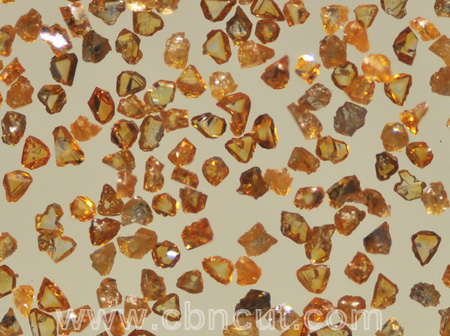

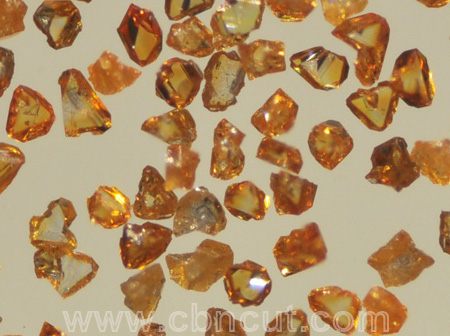

- Amber colored cubic boron nitride crystal
- Semi tough and better than A00 grade CBN grit.
- Irregular monocrystal shape
- Suitable for resin bond and electroplated CBN tools like CBN grinding wheels,CBN polishing tools .
Cubic Boron Nitride Grain Size Availability
| Grade/Size | 40/50 | 50/60 | 60/70 | 70/80 | 80/100 | 100/120 | 120/140 | 140/170 | 170/200 | 200/230 | 230/270 | 270/325 | 325/400 |
| CBN-A00 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| CBN-A01 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| CBN-A02 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| CBN-A50 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| CBN-A80 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| CBN-A90 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| CBN-B00 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| CBN-B50 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
CBN Abrasive Mesh Sizes Comparison Chart
|
REALTEC |
International Standard |
FEPA (Euro) |
USA |
JAPAN |
Theoretical Basic Size |
RUSSIA |
||||||||
|
GB/T6406-1995 |
ISO |
ANSI B74.16-1971 |
JIS4130-1998 |
9206-80 |
||||||||||
| Mesh | Grain Size | Grain | Mesh | Size | Grain | Mesh | Mesh | Grain Size | Mesh | Grain Size | Inch | Millimeter | Mesh | Grain Size |
| 40/50 | 425/300 | 427 | 40/50 | 425/300 | B427 | 355/300 | 40/50 | 425/300 | 40/50 | 425/300 | 0.015 | 0.378 | 500/400 | 500/400 |
| 50/60 | 300/250 | 301 | 50/60 | 300/250 | B301 | 300/250 | 50/60 | 300/250 | 50/60 | 300/250 | 0.011 | 0.288 | 400/315 | 400/315 |
| 60/80 | 250/180 | 252 | 60/80 | 250/180 | B252 | 250/180 | 60/80 | 250/180 | 60/80 | 250/180 | 0.009 | 0.226 | 250/200 | 250/200 |
| 80/100 | 180/150 | 181 | 80/100 | 180/150 | B181 | 180/150 | 80/100 | 180/150 | 80/100 | 180/150 | 0.0069 | 0.174 | 200/160 | 200/160 |
| 100/120 | 150/125 | 151 | 100/120 | 150/125 | B151 | 150/125 | 100/120 | 150/125 | 100/120 | 150/125 | 0.0058 | 0.148 | 160/125 | 160/125 |
| 120/140 | 125/106 | 126 | 120/140 | 125/106 | B126 | 125/106 | 120/140 | 125/106 | 120/140 | 125/106 | 0.0048 | 0.123 | 125/100 | 125/100 |
| 140/170 | 106/90 | 107 | 140/170 | 106/90 | B107 | 106/90 | 140/170 | 106/90 | 140/170 | 106/90 | 0.0041 | 0.103 | 100/80 | 100/80 |
| 170/200 | 90/75 | 91 | 170/200 | 90/75 | B91 | 90/75 | 170/200 | 90/75 | 170/200 | 90/75 | 0.0034 | 0.866 | 80/63 | 80/63 |
| 200/230 | 75/63 | 76 | 200/230 | 75/63 | B76 | 75/63 | 200/230 | 75/63 | 200/230 | 75/63 | 0.0030 | 0.075 | 63/50 | 63/50 |
| 230/270 | 63/53 | 64 | 230/270 | 63/53 | B64 | 63/53 | 230/270 | 63/53 | 230/270 | 63/53 | 0.0026 | 0.066 | 50/40 | 50/40 |
| 270/325 | 53/45 | 54 | 270/325 | 53/45 | B54 | 53/45 | 270/325 | 53/45 | 270/325 | 53/45 | 0.0022 | 0.057 | ||
| 325/400 | 45/38 | 46 | 325/400 | 45/38 | B46 | 45/38 | 325/400 | 45/38 | 325/400 | 45/38 | 0.0019 | 0.048 | ||
