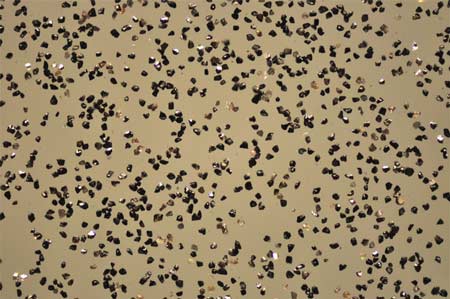

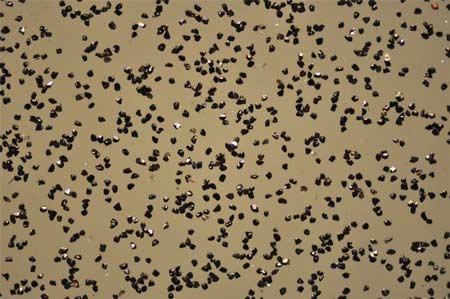

CBN Micron Powder B00
The CBN micron powder is processed from the Cubic Boron Nitrade abrasives and used for polishing and lapping and super finishing applications.
Feature:Black color CBN micron powder
Application:For CBN polishing and grinding tools
Bond Recommendation:Resin Bond CBN Tools
| Micron size | 0-0.5 | 0-1 | 0-2 | 1-1.5 | 1-3 | 1-4 | 3-6 | 4-8 | 5-10 | 6-12 | 8-16 | 10-20 | 12-22 | 15-25 | 22-36 | 20-30 | 30-40 | 36-54 |
| CBN B00 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
CBN micron powder sizes comparison chart
| Product Designation Size (um) | Chinese Standard (um) | Factory Workshop Standard |
Appox. US Mesh |
| 0-0.25 | 0-0.25 | W0.25 | — |
| 0-0.4 | 0-0.5 | W0.5 | — |
| 0-0.8 | 0-1 | W1 | 15000# |
| 0.4-0.8 | 0.5-1 | — | — |
| 0.4-1.2 | 0.5-1.5 | W1.5 | — |
| 0-1.6 | 0-2 | W2.5 | — |
| 1.2-2.3 | 1.5-3 | W3.5 | 8000# |
| 1.6-3.1 | 2-4 | — | 5000# |
| 1.9-3.9 | 2.5-5 | W5 | 4000# |
| 2.3-4.7 | 3-6 | W7 | 3000# |
| 3.1-6.2 | 4-8 | — | 2500# |
| 3.9-7.8 | 5-10 | W10 | 2000# |
| 4.7-9.3 | 6-12 | — | 1500# |
| 6.2-9.3 | 8-12 | W14 | 1200# |
| 7.8-15.5 | 10-20 | W20 | 800# |
| 9.3-17.1 | 12-22 | — | 700# |
| 15.5-23.3 | 20-30 | — | 600# |
| 17.1-27.9 | 22-36 | W28 | — |
| 27.9-41.9 | 36-54 | W40 | 400# |
