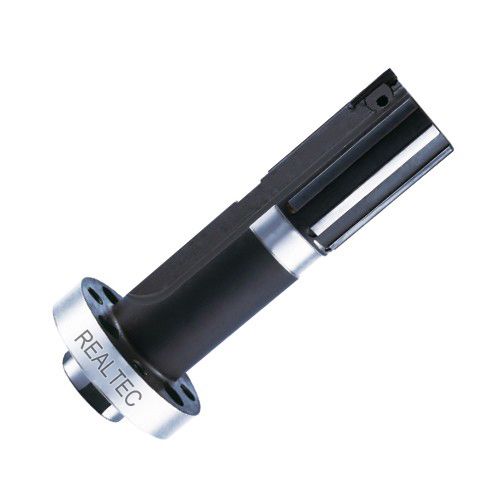

D34.048 PCD Boring cutter for engine cylinder bore milling
Machining parts: small engine cylinder bore
Processing parameters:
Speed:1500rpm
Feed:500mm/min
Emulsion liquid:65%
Workpiece material:A380 Aluminium alloy
The effect of processing:
Aperture:D34.048
Roundness:0.002mm
Cylindrical degree:0.003
Roughness required:Ra0.25-0.75,Actual roughness:Ra0.32
Features:
◆Innovative design guarantees high precision, high efficiency and stable processing
◆Special clamping mechanism, easy adjustment and reliable performance
◆Innovative design and special clamping mechanism guarantee the cutting stability of fine boring blade
◆Closed-loop mechanical design
Cutting force forms a closed-loop, which can guarantee the stability of blade cutting and the stability of the clamping mechanism in the process of high feed.
Note:cutting edge can increase the chip breaker, which guarantee the stability of the chip removal and avoid chip scratching from the hole wall.
