PDC Cutter Domed Shape 32mm length
PDC cutter (Polycrystalline Diamond Compact) consist of PCD（Polycrystalline Diamond) layer sintered with tungsten carbide substrate under ultra-high temperature and pressure.
PDC cutters are widely used in concrete drilling,grinding in construction,petroleum & oil field PDC drilling bits,PDC rock drilling bits,geological PDC drilling bits,gas exploration bits,PCD coal mining drill bits .
We can supply the following sizes PDC cutters and also can do Customs Made according to request.

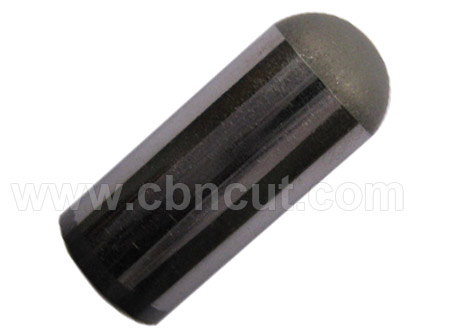

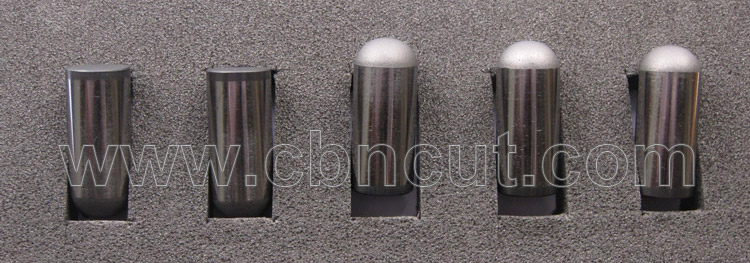

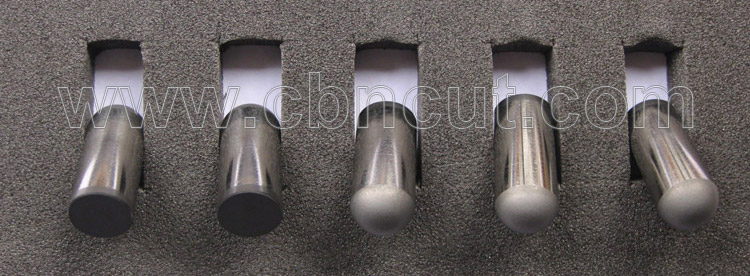

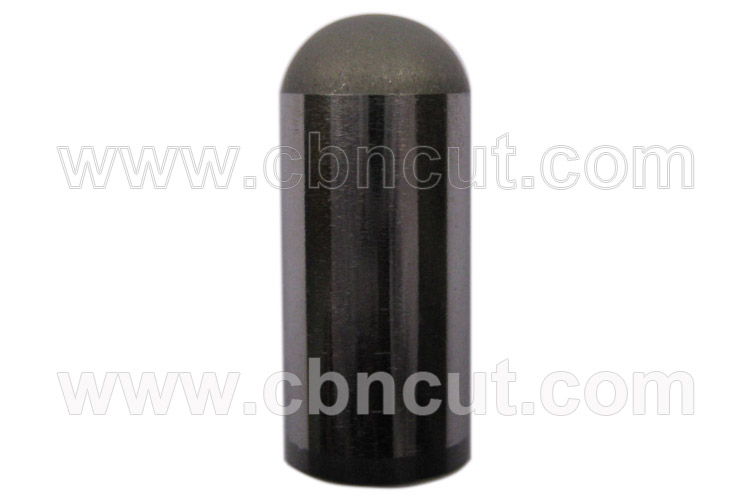

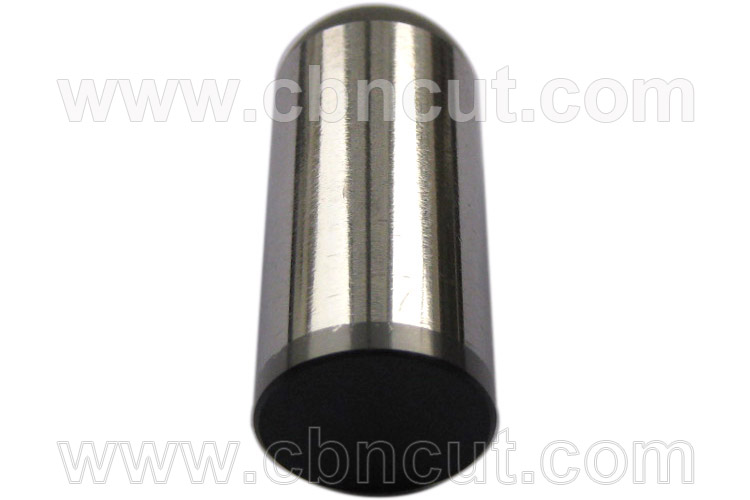

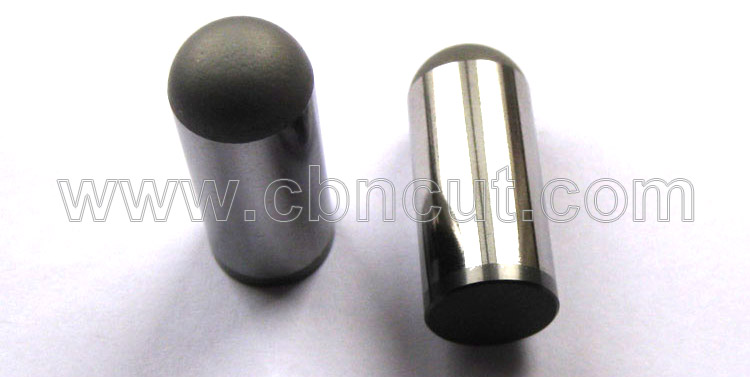

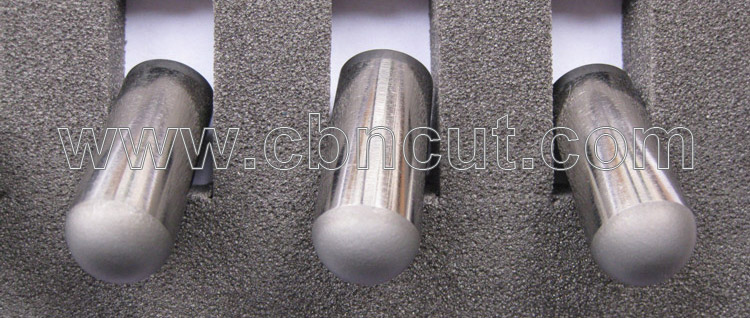

The 32mm dome shaped PDC cutter is very long and they can be made according to request.
Commonly used sizes for PDC (Polycrystalline Diamond Compact) Cutters:
| Code | D | T | PCD |
| D04 | 4.00 | 5-10 | 1-2 |
| D05 | 5.00 | 5-10 | 1-2 |
| D06 | 6.00 | 5-10 | 1-2 |
| D0803 | 8.20 | 8.0 | 3.53 |
| D0808 | 8.20 | 8.0 | 2.0 |
| D0811 | 8.20 | 11.0 | 2.0 |
| D1004 | 10.00 | 4.5 | 2.0 |
| D1008 | 10.00 | 8.0 | 2.0 |
| D1010 | 10.00 | 10.0 | 2.0 |
| D1011 | 10.00 | 11.0 | 2.0 |
| D1013 | 10.00 | 13.0 | 2.0 |
| D1303 | 13.30 | 3.53 | 2.0 |
| D1304 | 13.30 | 4.0 | 2.0 |
| D1308 | 13.44 | 8.0 | 2.2 |
| D1310 | 13.44 | 10.0 | 2.2 |
| D1313 | 13.44 | 13.0 | 2.2 |
| D1316 | 13.44 | 16.0 | 2.2 |
| D1608 | 16.00 | 8.0 | 2.2 |
| D1610 | 16.00 | 10.0 | 2.2 |
| D1613 | 16.00 | 13.2 | 2.2 |
| D1616 | 16.00 | 16.0 | 2.2 |
| D1619 | 16.00 | 19.0 | 2.2 |
| D1908 | 19.05 | 8.0 | 2.2 |
| D1913 | 19.05 | 13.2 | 2.2 |
| D1916 | 19.05 | 16.31 | 2.2 |
| D1919 | 19.05 | 19.00 | 2.2 |
| D2508 | 25.40 | 8.0 | 2.4 |
| D2513 | 25.40 | 13.2 | 2.4 |
