CBN Grinding Wheels For Refrigeration Industry
Application:
1.Automotive:Stator, rotor, blade, inner and outer ring gear,gasket,port plate,seal,bearing etc
2.Refrigeration:Valve plate,piston,slide
3.Cutting Tools:Carbide tools,PCBN tools grinding
4.Others:LED glass,Ceramic parts

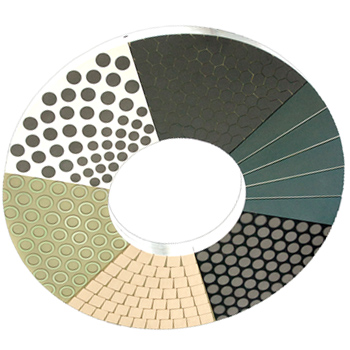

This big diameter grinding wheel used for powder metallurgy,HSS (High Speed Steel),SS,Cast iron,Bearing steel,Copper alloy,Glass,Seramics and other materials,for single and double face grinding.
★ rpm≤120 low speed grinding,flatness≤0.02mm/1000mm
★ High precision after machining(flatness≤0.003mm)with good surface condition.
★ Low machining cost,clean working .
