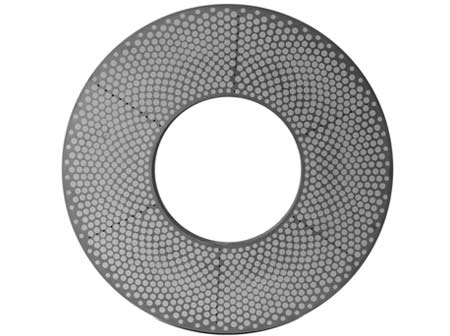

Large Diameter Ceramic Bond CBN Grinding Wheel-Cylinder Dot type

Big Diameter Ceramic Bond CBN Grinding Wheel

Features:

1.Fast Grinding

2.High abrasive,wheel abrasive layer is very abrasive

3.Grinding force is high and big,grinding temperature is low

4.After grinding,workpiece can reach high precesion on tolerance,reach good surface roughness,good flatness

Application:High Speed Steel,Bearing Steel,Tool Steel,Stainless Steel,Metal Powder Products/powder metallurgy,cast iron

and other hard to grind precision grinding.

Typical Workpiece：Air conditioner refrigerator compressor sliding vane,Valve plate,Automobile steering pump,Blade,Rotor,Stator

Gauge block,Thin wall bearing and other high flatness workpiece.

Used on Machinery:Can be used on our double face grinding machine,also can be used on Germany ,South Korea and Italy imported grinding machine.

Diameter:600mm-1500mm

Hole:200mm-500mm

Wheel body thickness:50mm-100mm

Diamond grit size:100#-1500#

CBN abrasive layer shape:Cylinder shape,Hexahedral shape,Fan Shaped,Cube Shaped

Durability:To grinding HSS sliding vane with dimention 25mm×25mm on our grinding machine,reach 1,000,000 workpieces.

Surface roughness of workpiece reach 0.1um-1.2um

Workpiece after grinding ,can reach flatness 0.001mm-0.004mm, parallelism ≤0.002mm,equal altitude ≤0.002mm

Large Ceramic CBN Grinding Wheel-Hexagonal	Large Ceramic CBN Grinding Wheel-Lattice	Large Ceramic CBN Grinding Wheel-Dot
