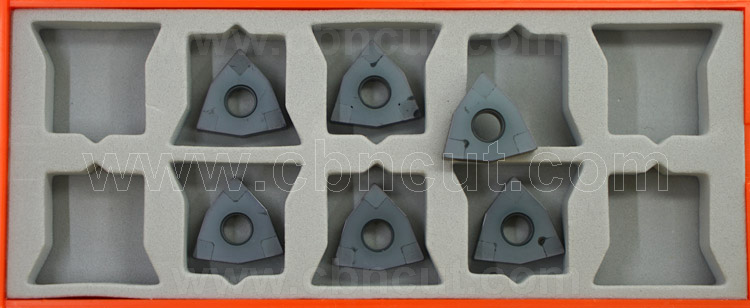

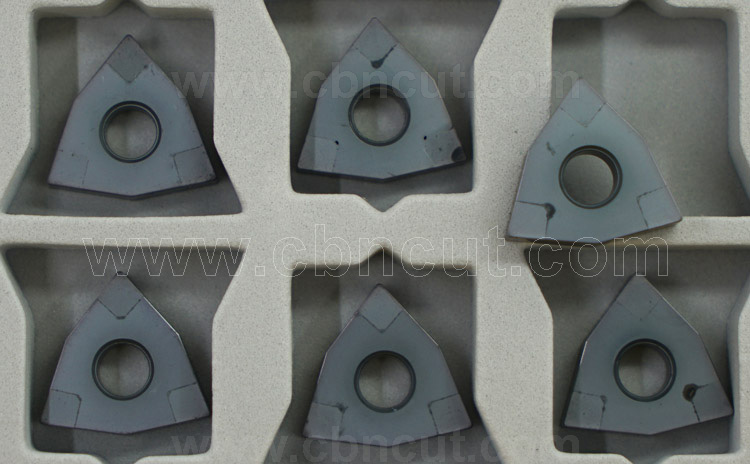

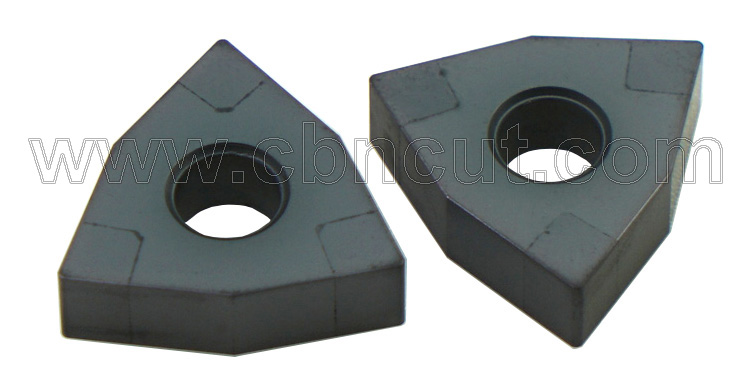

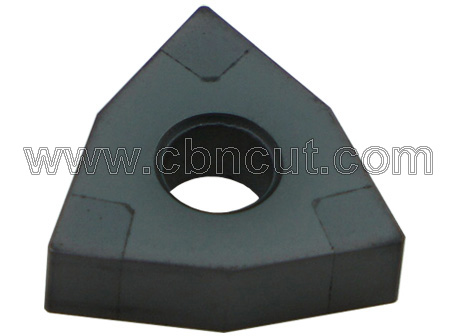

WNGA WNMA Coated CBN Inserts C07
WNGA and WNMA coated CBN inserts offer big cutting depth,suitable for heavy turning and machining applications.
WNGA060404 WNGA060408 WNGA080408 WNGA080412 WNGA080416
WNMA060404 WNMA060408 WNMA080408 WNMA080412 WNMA080416
| ISO | Inch | L | Φ IC | S | r |
| WNGA060404 | 331 | 6.6 | 9.525 | 4.76 | 0.4 |
| WNGA060408 | 332 | 6.6 | 9.525 | 4.76 | 0.8 |
| WNGA080412 | 431 | 8.72 | 12.7 | 4.76 | 0.4 |
| WNGA080408 | 432 | 8.72 | 12.7 | 4.76 | 0.8 |
| WNGA080412 | 433 | 8.72 | 12.7 | 4.76 | 1.2 |
| WNGA080416 | 434 | 8.72 | 12.7 | 4.76 | 1.6 |
