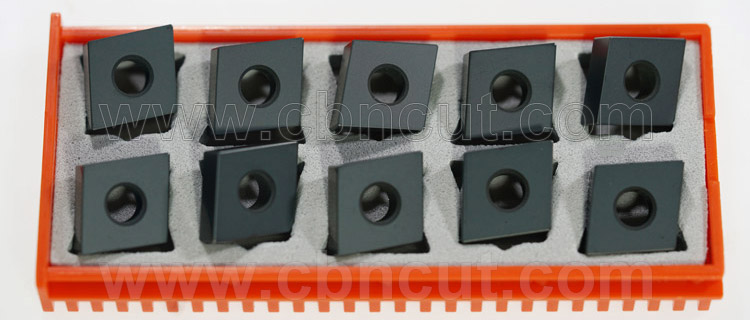

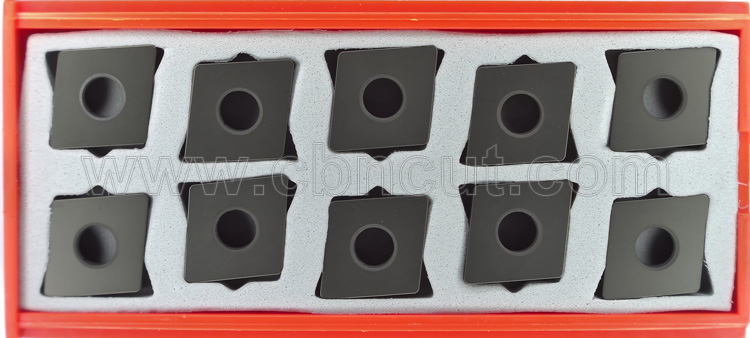

CNGA CNMA Solid CBN Insert
CNGA and CNMA Solid CBN Insert ,the CBN PCBN edge provide big cutting depth which is suitable for heavy turning and milling cast iron and steel workpieces.

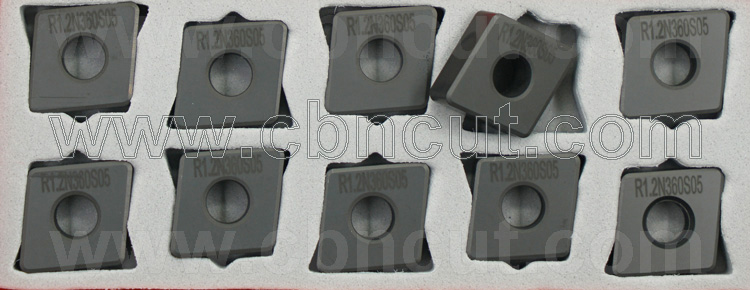

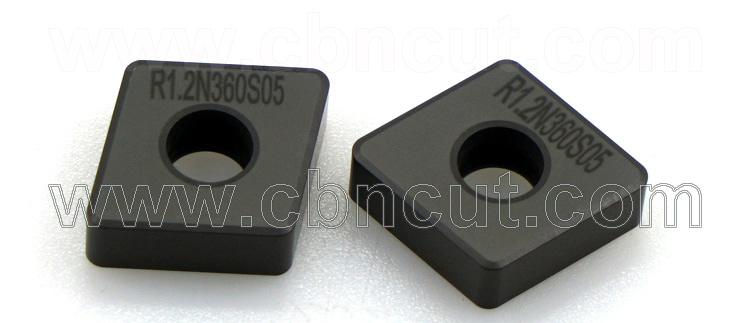

CNGA120404 (431) CNGA120408 (432) CNGA120412 (433) CNGA120416 (434) CNGA120712(443) CNGA120716(444)
CNMA120404 (431) CNMA120408 (432) CNMA120412 (433) CNMA120416 (434) CNMA120712(443) CNMA120716(444)
CBN edge chamfer and edge preparation:S01020 S02020 S05020 etc
CNGA and CNMA solid CBN insert availbility
| ISO | L | Φ IC | S | r |
| CNGA090304 | 9.525 | 9.525 | 4.76 | 0.4 |
| CNGA090308 | 9.525 | 9.525 | 3.18 | 0.8 |
| CNGA090312 | 9.525 | 9.525 | 3.18 | 1.2 |
| CNGA090404 | 9.525 | 9.525 | 4.76 | 0.4 |
| CNGA090408 | 9.525 | 9.525 | 3.18 | 0.8 |
| CNGA090412 | 9.525 | 9.525 | 3.18 | 1.2 |
| CNGA120404 | 12.7 | 12.7 | 4.76 | 0.4 |
| CNGA120408 | 12.7 | 12.7 | 4.76 | 0.8 |
| CNGA120412 | 12.7 | 12.7 | 4.76 | 1.2 |

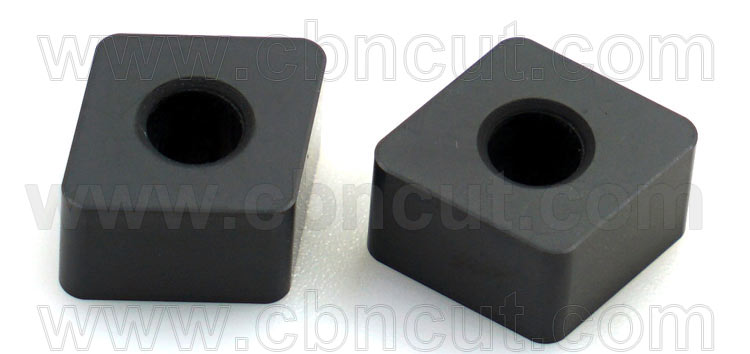

| CNGA120704 | 12.7 | 12.7 | 7.94 | 0.4 |
| CNGA120708 | 12.7 | 12.7 | 7.94 | 0.8 |
| CNGA120712 | 12.7 | 12.7 | 7.94 | 1.2 |
| CNGA120716 | 12.7 | 12.7 | 7.94 | 1.6 |
| CNGA120804 | 12 | 12.7 | 8.0 | 0.4 |
| CNGA120806 | 12 | 12.7 | 8.0 | 0.6 |
| CNGA120812 | 12 | 12.7 | 8.0 | 1.2 |
| CNGA160708 | 16 | 15.875 | 7.94 | 0.8 |
| CNGA160712 | 16 | 15.875 | 7.94 | 1.2 |
| CNGA160716 | 16 | 15.875 | 7.94 | 1.6 |
