SNGA Solid CBN Insert,120404,120406,120408,120412,120416,120712 etc.

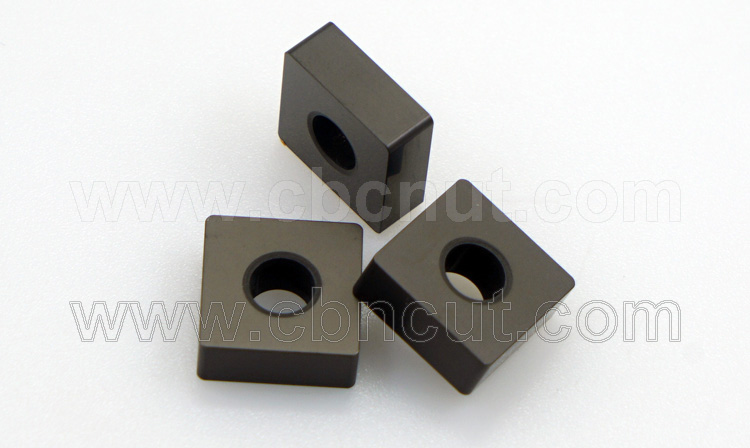

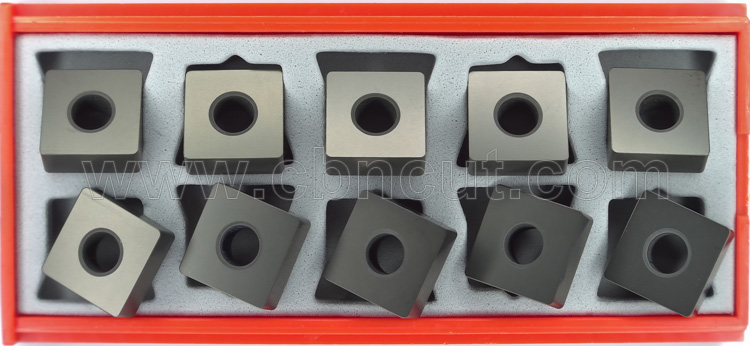

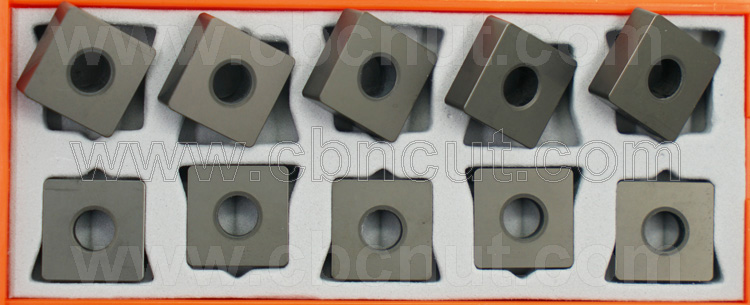

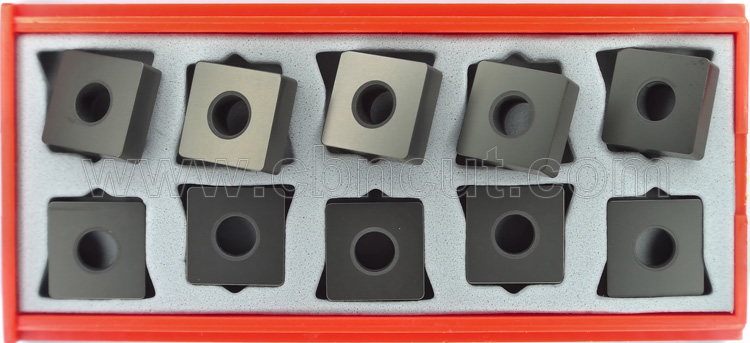

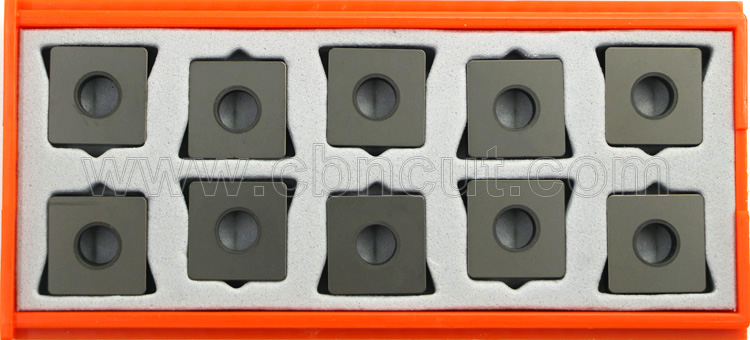

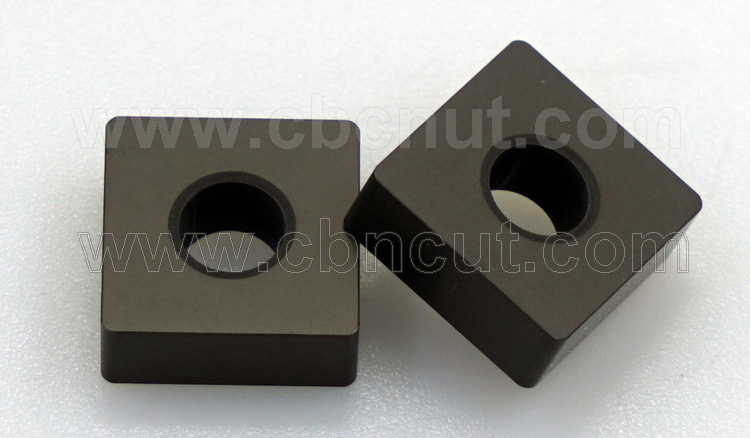

SNGA SNMA Solid CBN Insert

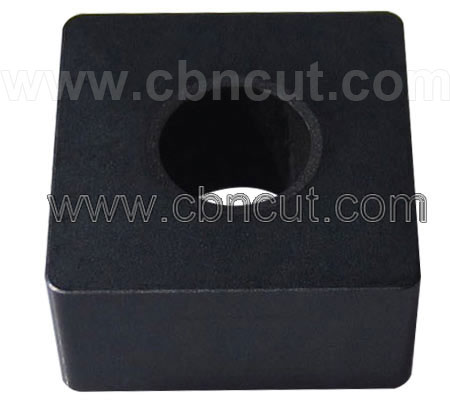

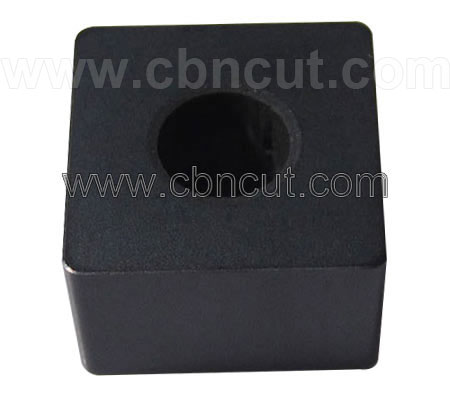

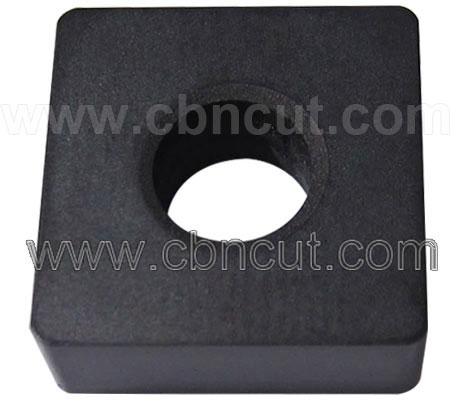

Solid CBN Insert with a laser drilled hole in the center,this type of solid CBN inserts can replace the welded SNGA and SNMA inserts and can offer big cutting depth,they are suitable for heavy turning applications.

SNGA and SNMA solid CBN inserts used for turning and milling cast iron,high chome alloy,high nickel alloy and hardened steel workpieces.

SNGA120404 SNGA120408 SNGA120412 SNGA120416 SNGA120712 SNGA150708 SNGA150712 SNGA150716

SNMA120404 SNMA120408 SNMA120412 SNGA120416 SNMA120712 SNMA150708 SNMA150712 SNMA150716

SNGA solid CBN insert

ISO	Inch	L	S	r
SNGA 090304	321	9.525	3.18	0.4
SNGA 090306	321.5	9.525	3.18	0.6
SNGA 090308	322	9.525	3.18	0.8
SNGA 090312	323	9.525	3.18	1.2
SNGA 090404	341	9.525	4.76	0.4
SNGA 090408	342	9.525	4.76	0.8
SNGA 090412	323	9.525	4.76	1.2
SNGA 120404	431	12.7	4.76	0.4
SNGA 120408	432	12.7	4.76	0.8
SNGA 120412	433	12.7	4.76	1.2
SNGA 120416	434	12.7	4.76	1.6
SNGA 120712	453	12.7	7.94	1.2
SNGA 150608	542	15.875	7.94	0.8
SNGA 150612	543	15.875	7.94	1.2
SNGA 150616	544	15.875	7.94	1.6
SNGA 150712	553	15.875	7.94	0.4
SNGA 201020		20	10	2.0
SNGA 201024		20	10	2.4
