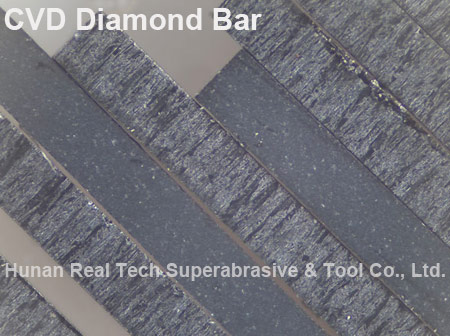

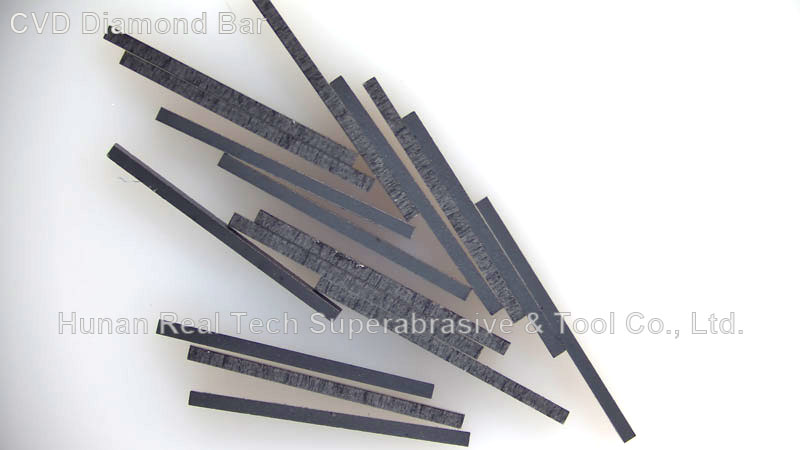

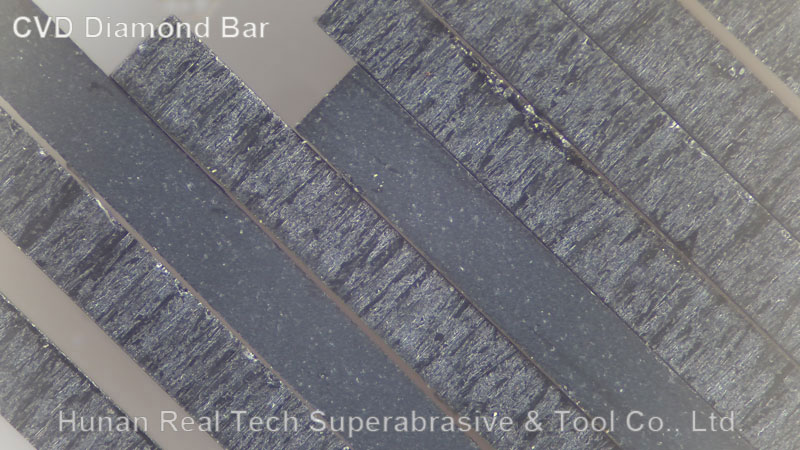

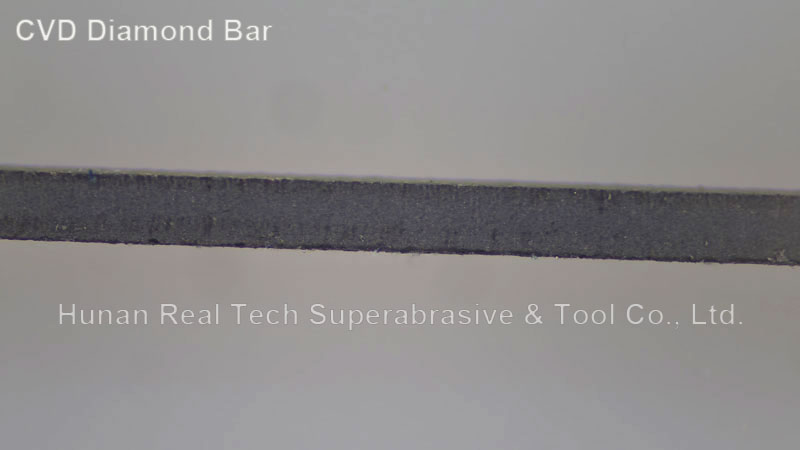

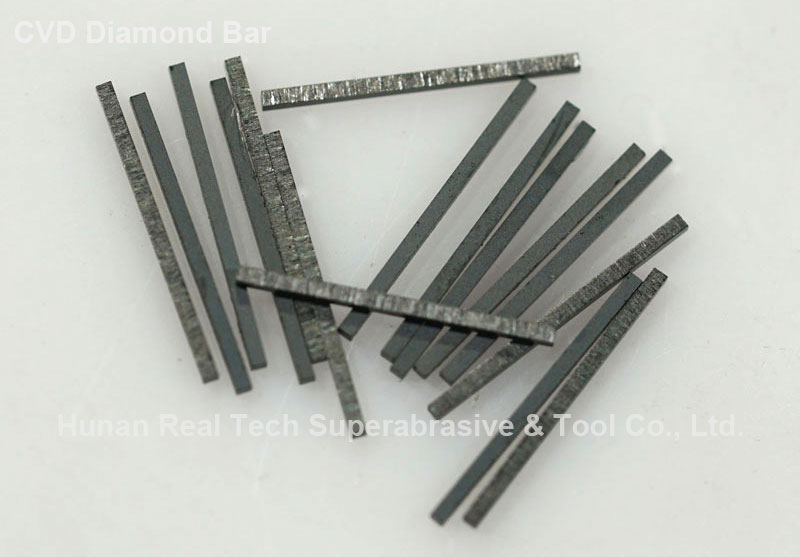

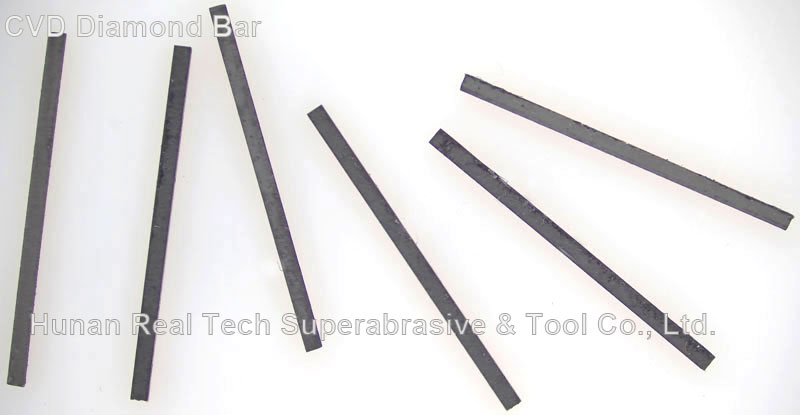

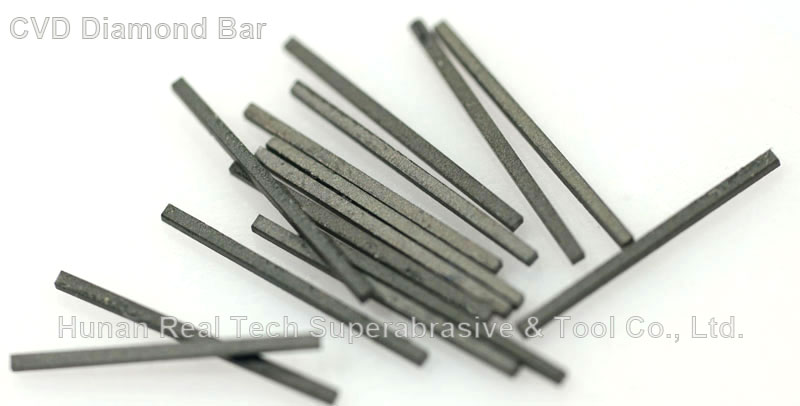

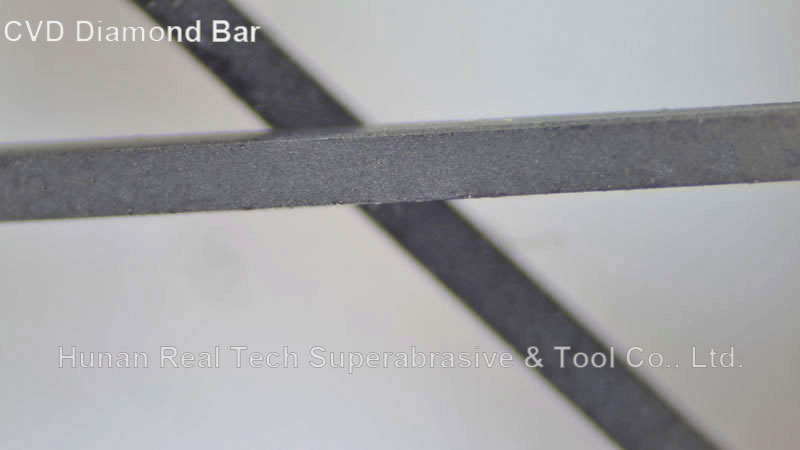

CVD Bar,CVD Log
CVD bar,CVD diamond bar used for wearing tools since the CVD is with extremely wear resistance.
The CVD bar , CVD log sizes can be made according to request,the length and the width and thickness can be custom made.
Length of CVD bar:1.0mm to 12.0mm
Width of CVD bar:0.2mm-5.0mm
Thickness of CVD bar:0.2mm to 2.5mm
CVD diamond products can be made with different shapes and can be used for wire drawing die blanks,dressing tool blanks,dressing logd,dressing tools,cutting tool blanks etc.
We can supply different quality standards that the CVD can be used in different industries and applications.
| Property | Economy grade | Premium grade |
| Material Composition | Carbon | Carbon |
| Content of percentage | 100% | 100% |
| Density(Gram/CM3) | 3.51 | 3.51 |
| Vicker's hardness(KG/mm2) | 8100 | 10000 |
| Young's Modulus(Gpa) | 1000 | 1100 |
| Chermal conductivity(W/M.K) | 1000 | 1450 |
| Thermal stability(℃) | 790 | 800 |
| Wear resistance ratio | 200000 | 400000 |
| Break strength | 340 | 560 |
CVD Diamond Products
| CVD Square Diamond Blank | CVD Round Diamond Blank |
| CVD Diamond Bar | CVD Diamond Log |
| CVD Dresser for rough dressing | CVD dresser for finish dressing |
