CVD Dresser,CVD diamond dresser,CVD wheel dresser,CVD wheel dressing tool.
CVD Diamond Dresser used for dressing grinding wheels,this CVD diamond dresser used for the dressing and can reach the wheel surface with good and smooth shape condition.
Diameter of the CVD dressing tool:10mm
Length of the CVD dressing tool:50mm
CVD diamond products can be made with different shapes and can be used for wire drawing die blanks,dressing tool blanks,dressing logd,dressing tools,cutting tool blanks etc.
We can supply different quality standards that the CVD can be used in different industries and applications.
| Property | Economy grade | Premium grade |
| Material Composition | Carbon | Carbon |
| Content of percentage | 100% | 100% |
| Density(Gram/CM3) | 3.51 | 3.51 |
| Vicker's hardness(KG/mm2) | 8100 | 10000 |
| Young's Modulus(Gpa) | 1000 | 1100 |
| Chermal conductivity(W/M.K) | 1000 | 1450 |
| Thermal stability(℃) | 790 | 800 |
| Wear resistance ratio | 200000 | 400000 |
| Break strength | 340 | 560 |
CVD Diamond Products
| CVD Square Diamond Blank | CVD Round Diamond Blank |
| CVD Diamond Bar | CVD Diamond Log |

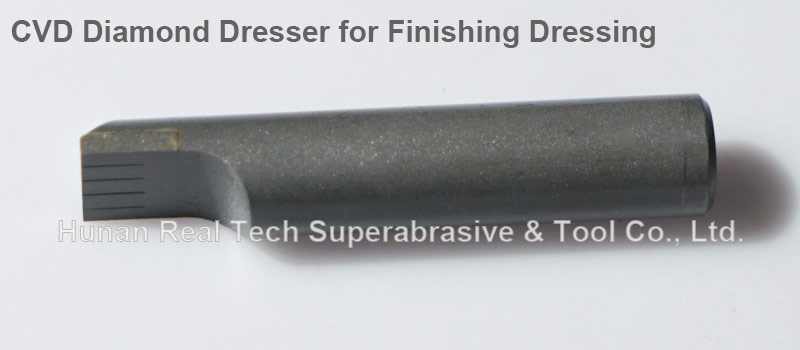

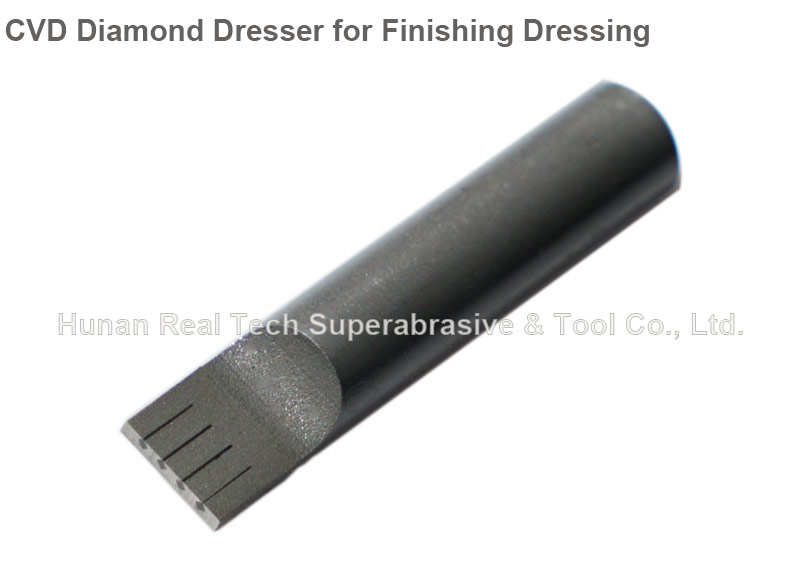

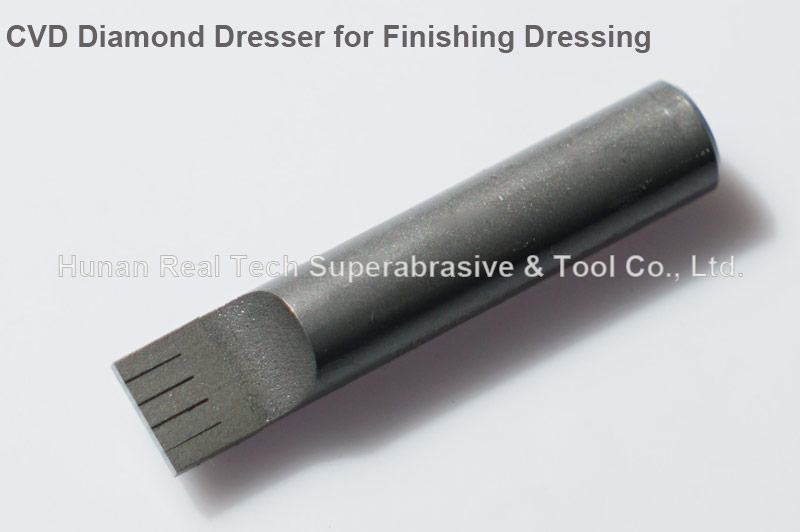

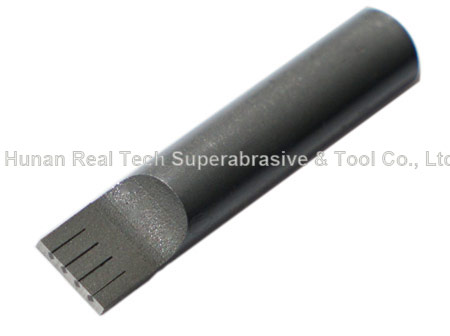

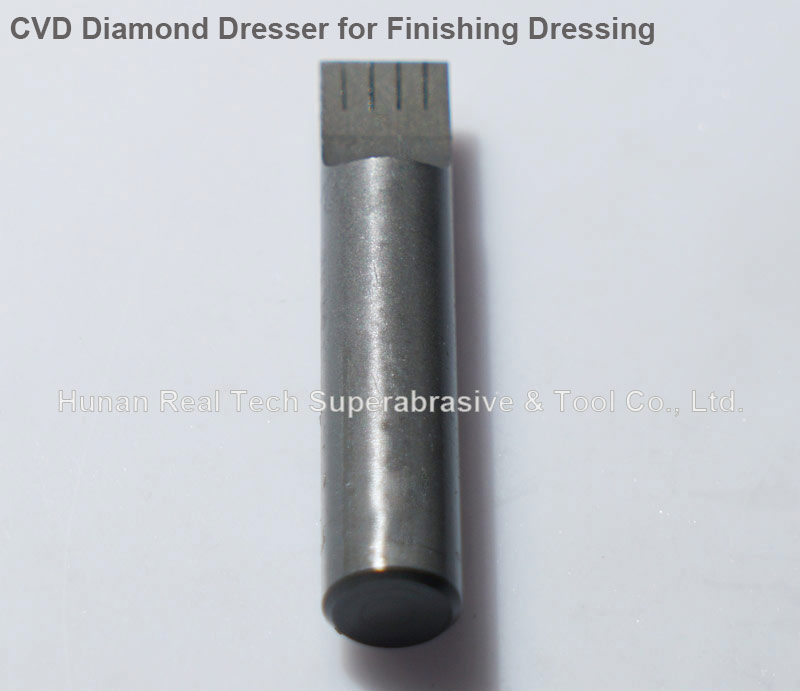

| CVD Dresser for rough dressing | CVD dresser for finish dressing |
