CVD diamond blank,CVD dresser,CVD logs,CVD diamond tips,CVD diamond dresser,CVD diamond wire drawing die blanks etc.Features wear resistance and stable at high temperature.
CVD is short calling for Chemical Vapor Deposition.
CVD Blank of square shape.
Thick film CVD diamond blank used for CVD cutters, CVD diamond dressers, CVD diamond wire drawing die, electronics etc.
CVD diamond dresser and CVD logs can be supplied with rectangular and square shapes .The special shapes of CVD diamond dresser are available on your request
CVD diamond products can be made with different shapes and can be used for wire drawing die blanks,dressing tool blanks,dressing logd,dressing tools,cutting tool blanks etc.
We can supply different quality standards that the CVD can be used in different industries and applications.
| Property | Economy grade | Premium grade |
| Material Composition | Carbon | Carbon |
| Content of percentage | 100% | 100% |
| Density(Gram/CM3) | 3.51 | 3.51 |
| Vicker's hardness(KG/mm2) | 8100 | 10000 |
| Young's Modulus(Gpa) | 1000 | 1100 |
| Chermal conductivity(W/M.K) | 1000 | 1450 |
| Thermal stability(℃) | 790 | 800 |
| Wear resistance ratio | 200000 | 400000 |
| Break strength | 340 | 560 |
CVD Diamond Products

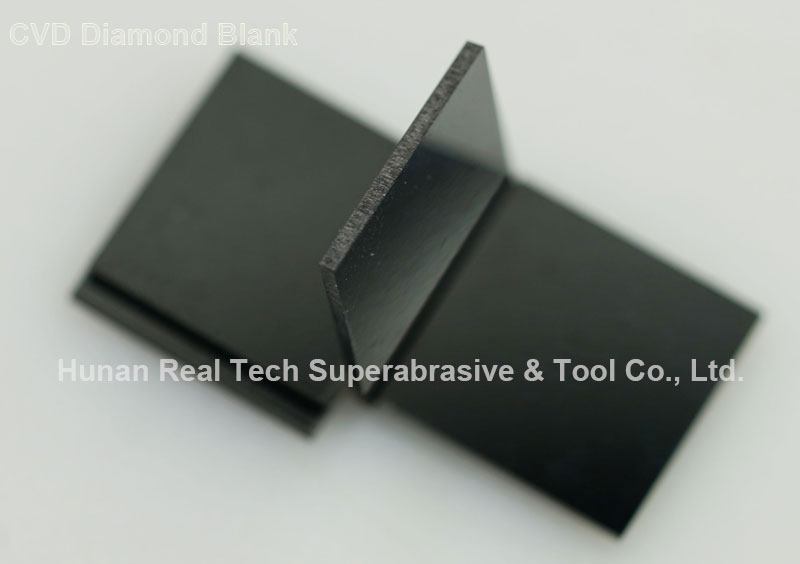

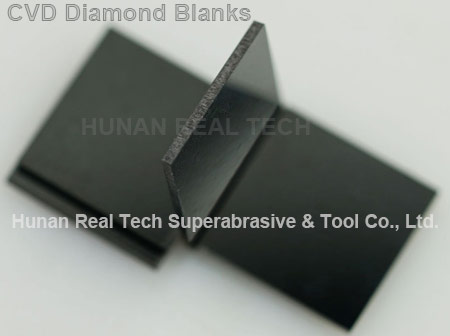

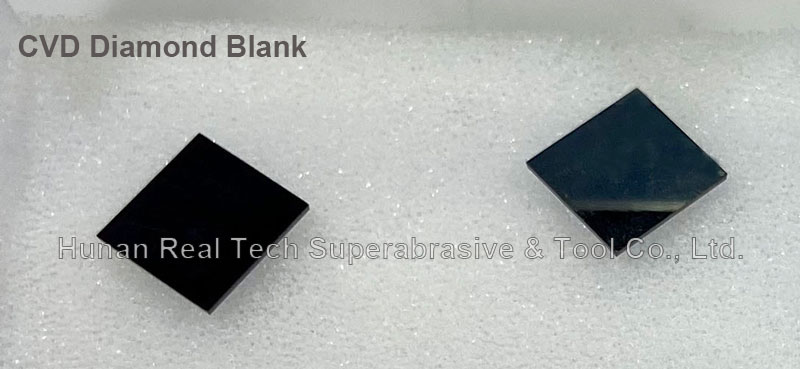

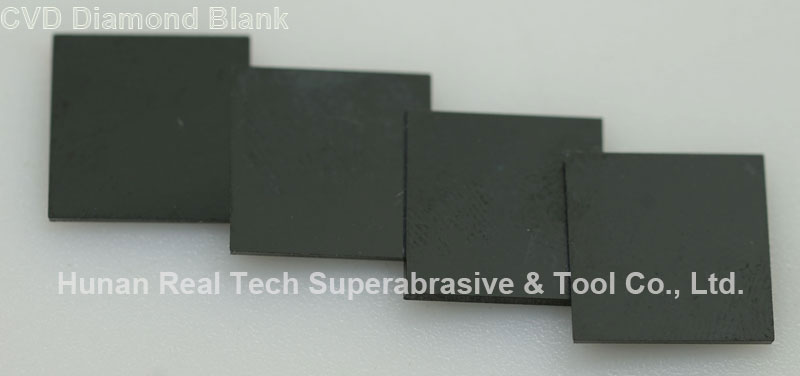

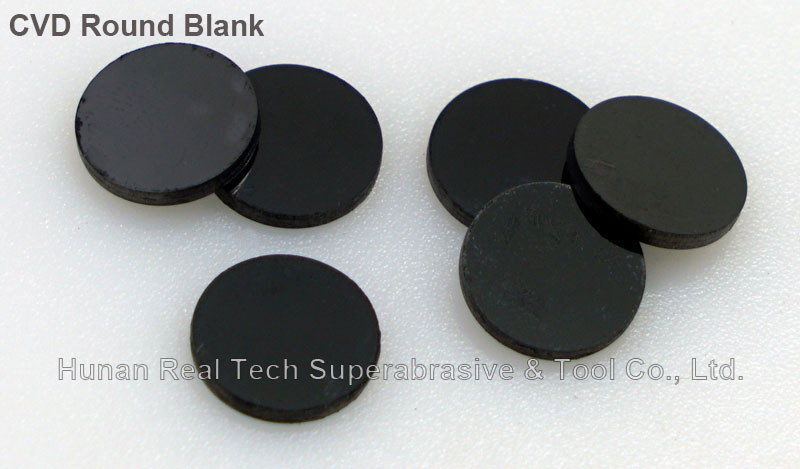

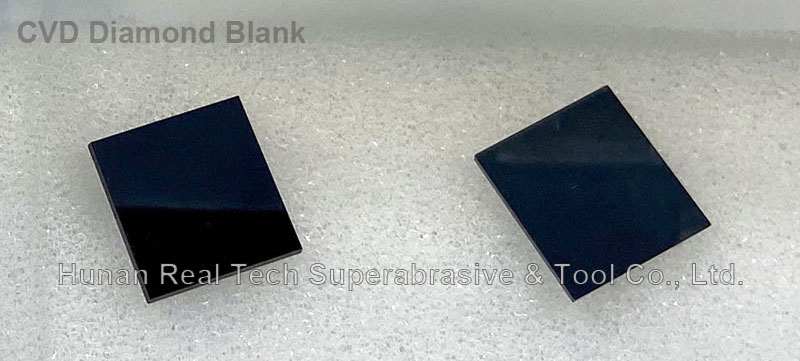

| CVD Square Diamond Blank | CVD Round Diamond Blank |

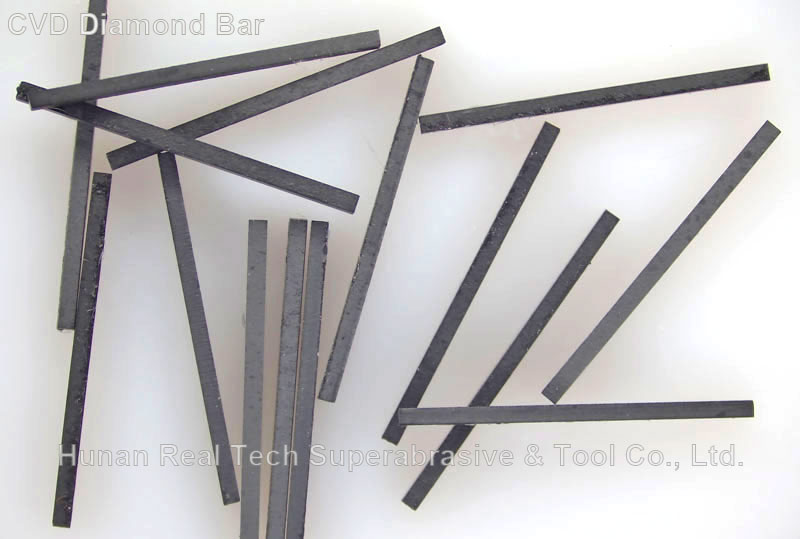

| CVD Diamond Bar | CVD Diamond Log |
| CVD Dresser for rough dressing | CVD dresser for finish dressing |
