Carbide Shim,Carbide Seat,shim for turning insert

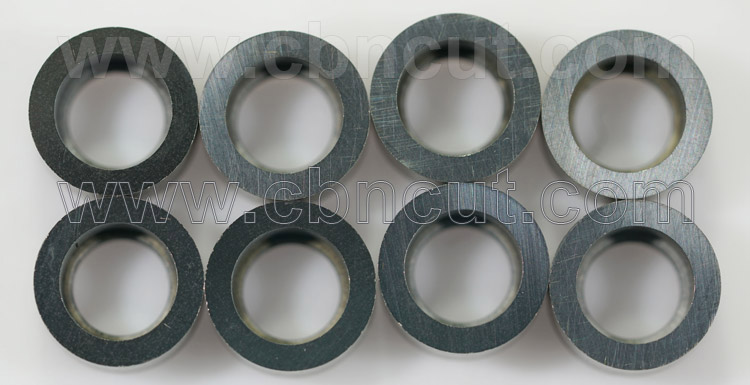

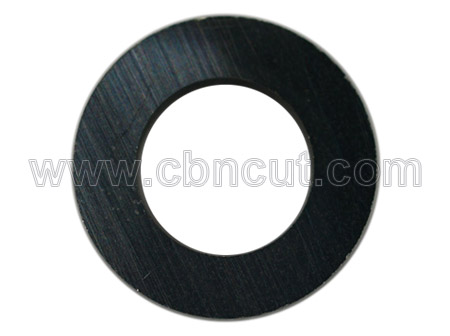

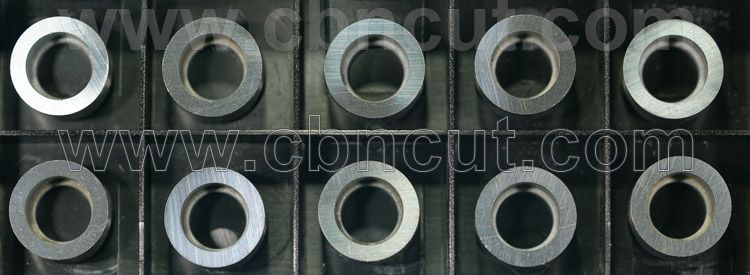

Carbide Shim and Carbide Seat for CBN and PCD turning inserts,the carbide shim can be made according to request.

The shim can be made fit for RNGN120400 RNGN120700 solid CBN PCBN insert.

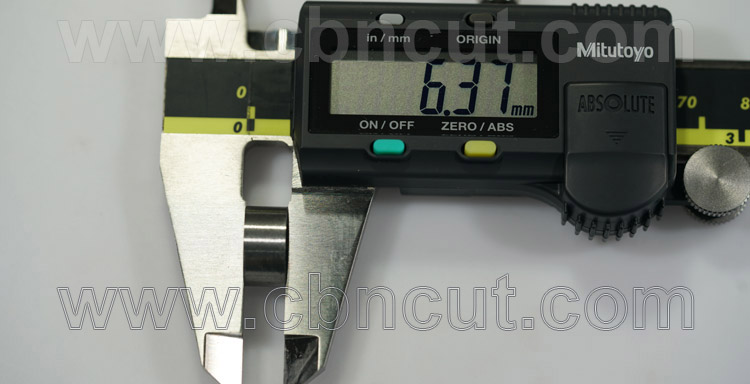

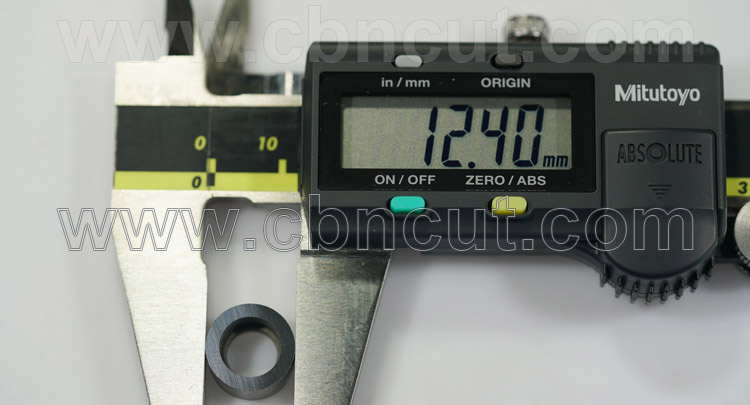

Diameter can be 12.5mm or 12.4mm ,thickness can be 6.35mm or other

Carbide Shim and Carbide Seat

Carbide Shim Carbide Seat

Carbide Shim

Carbide Seat
