Tool Holder for CBN Insert,Ceramic Insert and Carbide Insert,the holder is used for the turning inserts for external machining.
Tool bar for the turning inserts like the RNGN120700 and RNGN120400 etc.
External turning tool holders.
Right and and Left hand and Central（non direction）tool holders.

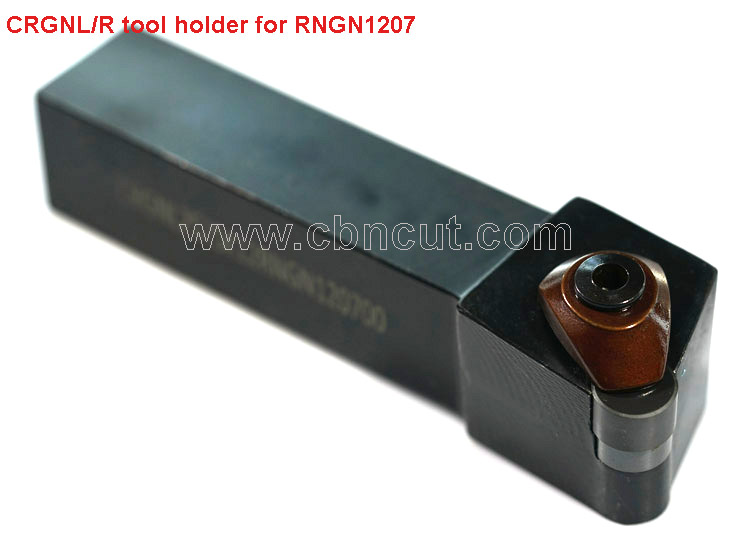

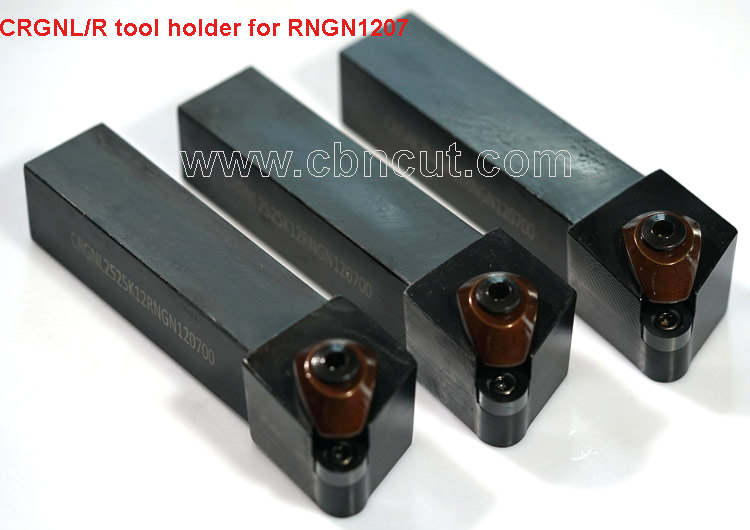

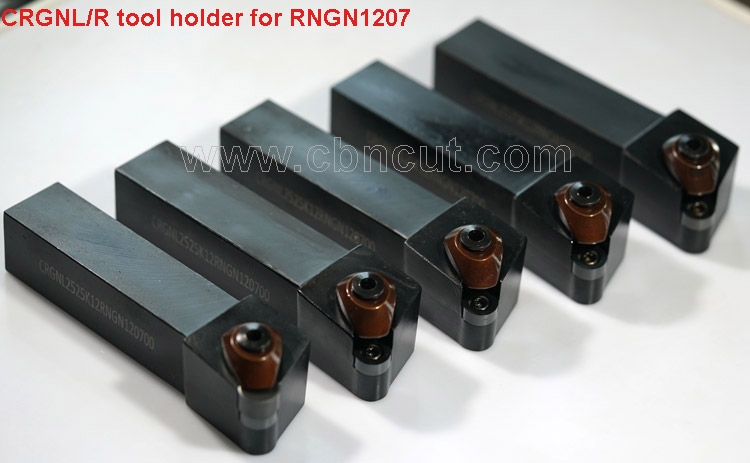

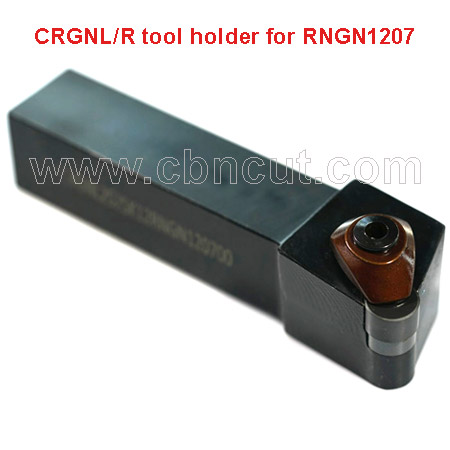

CRGNR Square Shank Right Hand Toolholder
CRGNL Square Shank Left Hand Toolholder
CRGNL2525M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm
CRGNR2525M1204 Right hand for RNGN120400 OAL=150mm
CRGNL2525M1207 Left hand for RNGN120400 OAL=150mm
CRGNR2525M1207 Right hand for RNGN120400 OAL=150mm
CRGNL2525P1204 Left hand for RNGN120400 OAL=170mm
CRGNR2525P1204 Right hand for RNGN120400 OAL=170mm
CRGNL2525P1207 Left hand for RNGN120400 OAL=170mm
CRGNR2525P1207 Right hand for RNGN120400 OAL=170mm
CRGNL2525R1204 Left hand for RNGN120400 OAL=200mm
CRGNR2525R1204 Right hand for RNGN120400 OAL=200mm
CRGNL2525R1207 Left hand for RNGN120400 OAL=200mm
CRGNR2525R1207 Right hand for RNGN120400 OAL=200mm
CRGNL2525S1204 Left hand for RNGN120400 OAL=250mm
CRGNR2525S1204 Right hand for RNGN120400 OAL=250mm
CRGNL2525S1207 Left hand for RNGN120400 OAL=250mm
CRGNR2525S1207 Right hand for RNGN120400 OAL=250mm
CRGNL2525T1207 Left hand for RNGN120400 OAL=300mm
CRGNR2525T1207 Right hand for RNGN120400 OAL=300mm
Other length and size of the holders can be made according to request.
Spare parts of clamp,seat,shim,screw also available.
CRGNL3232M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm
CRGNR3232M1204 Right hand for RNGN120400 OAL=150mm
CRGNL3232M1207 Left hand for RNGN120400 OAL=150mm
CRGNR3232M1207 Right hand for RNGN120400 OAL=150mm
CRGNL3232P1204 Left hand for RNGN120400 OAL=170mm
CRGNR3232P1204 Right hand for RNGN120400 OAL=170mm
CRGNL3232P1207 Left hand for RNGN120400 OAL=170mm
CRGNR3232P1207 Right hand for RNGN120400 OAL=170mm
CRGNL3232R1204 Left hand for RNGN120400 OAL=200mm
CRGNR3232R1204 Right hand for RNGN120400 OAL=200mm
CRGNL3232R1207 Left hand for RNGN120400 OAL=200mm
CRGNR3232R1207 Right hand for RNGN120400 OAL=200mm
CRGNL3232S1204 Left hand for RNGN120400 OAL=250mm
CRGNR3232S1204 Right hand for RNGN120400 OAL=250mm
CRGNL3232S1207 Left hand for RNGN120400 OAL=250mm
CRGNR3232S1207 Right hand for RNGN120400 OAL=250mm
CRGNL3232T1207 Left hand for RNGN120400 OAL=300mm
CRGNR3232T1207 Right hand for RNGN120400 OAL=300mm
CRGNL4040M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm
CRGNR4040M1204 Right hand for RNGN120400 OAL=150mm
CRGNL4040M1207 Left hand for RNGN120400 OAL=150mm
CRGNR4040M1207 Right hand for RNGN120400 OAL=150mm
CRGNL4040P1204 Left hand for RNGN120400 OAL=170mm
CRGNR4040P1204 Right hand for RNGN120400 OAL=170mm
CRGNL4040P1207 Left hand for RNGN120400 OAL=170mm
CRGNR4040P1207 Right hand for RNGN120400 OAL=170mm
CRGNL4040R1204 Left hand for RNGN120400 OAL=200mm
CRGNR4040R1204 Right hand for RNGN120400 OAL=200mm
CRGNL3232R1207 Left hand for RNGN120400 OAL=200mm
CRGNR3232R1207 Right hand for RNGN120400 OAL=200mm
CRGNL3232S1204 Left hand for RNGN120400 OAL=250mm
CRGNR3232S1204 Right hand for RNGN120400 OAL=250mm
CRGNL3232S1207 Left hand for RNGN120400 OAL=250mm
CRGNR3232S1207 Right hand for RNGN120400 OAL=250mm
CRGNL3232T1207 Left hand for RNGN120400 OAL=300mm
CRGNR3232T1207 Right hand for RNGN120400 OAL=300mm
Tool holders and spare parts table
