Tool Holder for CBN Insert,Ceramic Insert and Carbide Insert

Tool bar for the turning inserts

External turning tool holders.

Right and and Left hand and Central（non direction）tool holders.

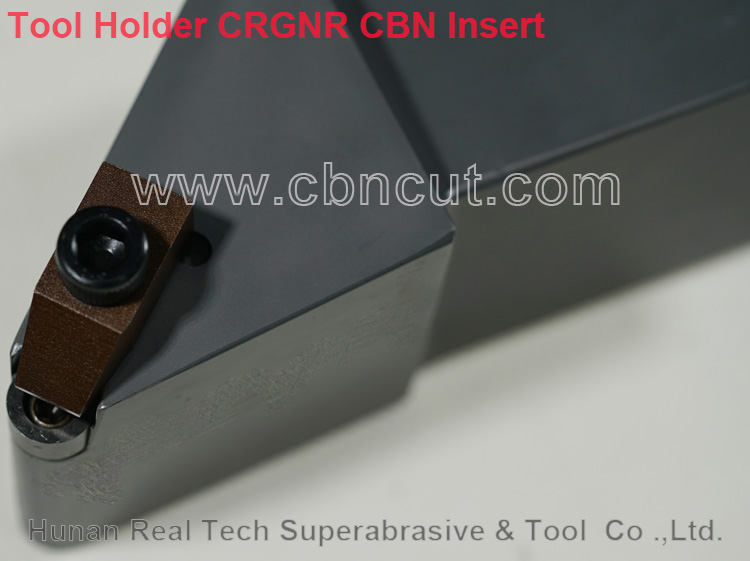

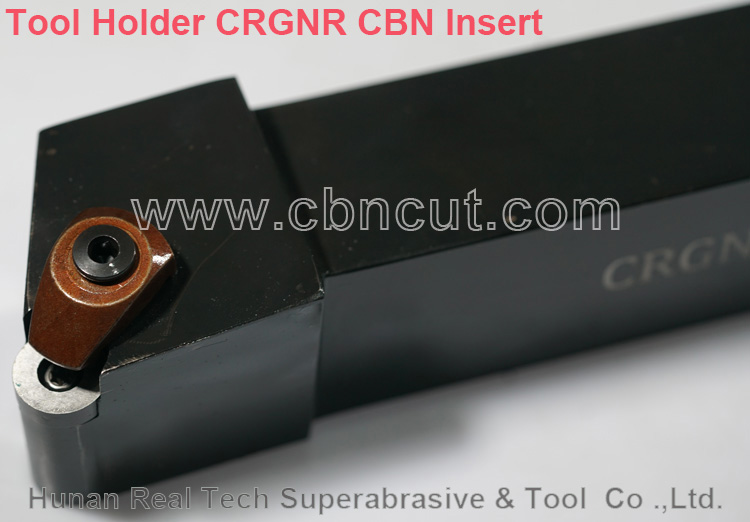

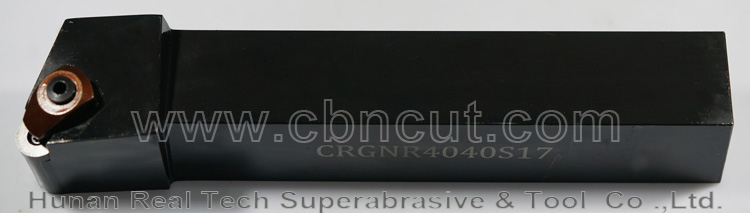

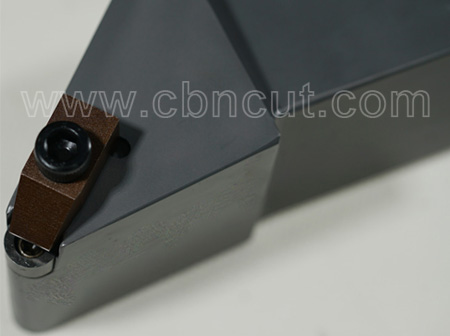

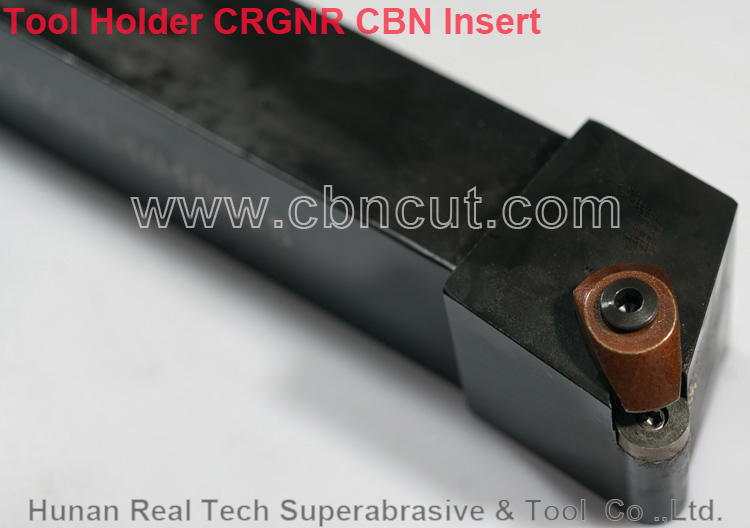

CRGNR Square Shank Right Hand Toolholder

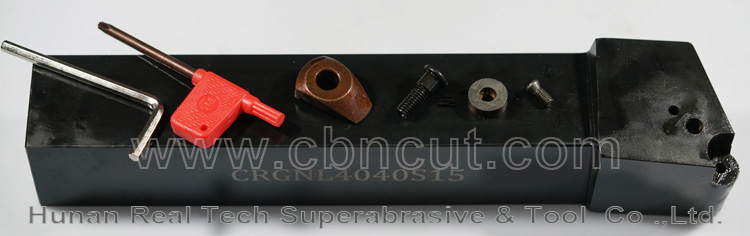

CRGNL Square Shank Left Hand Toolholder

CRNGL2525M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm

CRNGR2525M1204 Right hand for RNGN120400 OAL=150mm

CRNGL2525M1207 Left hand for RNGN120400 OAL=150mm

CRNGR2525M1207 Right hand for RNGN120400 OAL=150mm

CRNGL2525P1204 Left hand for RNGN120400 OAL=170mm

CRNGR2525P1204 Right hand for RNGN120400 OAL=170mm

CRNGL2525P1207 Left hand for RNGN120400 OAL=170mm

CRNGR2525P1207 Right hand for RNGN120400 OAL=170mm

CRNGL2525R1204 Left hand for RNGN120400 OAL=200mm

CRNGR2525R1204 Right hand for RNGN120400 OAL=200mm

CRNGL2525R1207 Left hand for RNGN120400 OAL=200mm

CRNGR2525R1207 Right hand for RNGN120400 OAL=200mm

CRNGL2525S1204 Left hand for RNGN120400 OAL=250mm

CRNGR2525S1204 Right hand for RNGN120400 OAL=250mm

CRNGL2525S1207 Left hand for RNGN120400 OAL=250mm

CRNGR2525S1207 Right hand for RNGN120400 OAL=250mm

CRNGL2525T1207 Left hand for RNGN120400 OAL=300mm

CRNGR2525T1207 Right hand for RNGN120400 OAL=300mm

Other length and size of the holders can be made according to request.

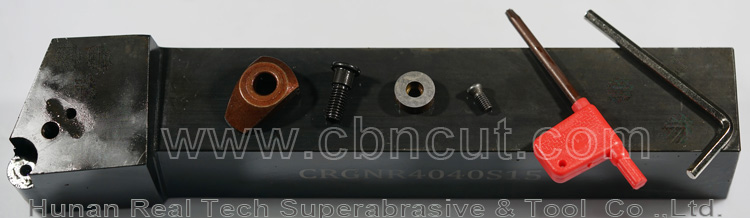

Spare parts of clamp,seat,shim,screw also available.

CRNGL3232M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm

CRNGR3232M1204 Right hand for RNGN120400 OAL=150mm

CRNGL3232M1207 Left hand for RNGN120400 OAL=150mm

CRNGR3232M1207 Right hand for RNGN120400 OAL=150mm

CRNGL3232P1204 Left hand for RNGN120400 OAL=170mm

CRNGR3232P1204 Right hand for RNGN120400 OAL=170mm

CRNGL3232P1207 Left hand for RNGN120400 OAL=170mm

CRNGR3232P1207 Right hand for RNGN120400 OAL=170mm

CRNGL3232R1204 Left hand for RNGN120400 OAL=200mm

CRNGR3232R1204 Right hand for RNGN120400 OAL=200mm

CRNGL3232R1207 Left hand for RNGN120400 OAL=200mm

CRNGR3232R1207 Right hand for RNGN120400 OAL=200mm

CRNGL3232S1204 Left hand for RNGN120400 OAL=250mm

CRNGR3232S1204 Right hand for RNGN120400 OAL=250mm

CRNGL3232S1207 Left hand for RNGN120400 OAL=250mm

CRNGR3232S1207 Right hand for RNGN120400 OAL=250mm

CRNGL3232T1207 Left hand for RNGN120400 OAL=300mm

CRNGR3232T1207 Right hand for RNGN120400 OAL=300mm

CRNGL4040M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm

CRNGR4040M1204 Right hand for RNGN120400 OAL=150mm

CRNGL4040M1207 Left hand for RNGN120400 OAL=150mm

CRNGR4040M1207 Right hand for RNGN120400 OAL=150mm

CRNGL4040P1204 Left hand for RNGN120400 OAL=170mm

CRNGR4040P1204 Right hand for RNGN120400 OAL=170mm

CRNGL4040P1207 Left hand for RNGN120400 OAL=170mm

CRNGR4040P1207 Right hand for RNGN120400 OAL=170mm

CRNGL4040R1204 Left hand for RNGN120400 OAL=200mm

CRNGR4040R1204 Right hand for RNGN120400 OAL=200mm

CRNGL3232R1207 Left hand for RNGN120400 OAL=200mm

CRNGR3232R1207 Right hand for RNGN120400 OAL=200mm

CRNGL3232S1204 Left hand for RNGN120400 OAL=250mm

CRNGR3232S1204 Right hand for RNGN120400 OAL=250mm

CRNGL3232S1207 Left hand for RNGN120400 OAL=250mm

CRNGR3232S1207 Right hand for RNGN120400 OAL=250mm

CRNGL3232T1207 Left hand for RNGN120400 OAL=300mm

CRNGR3232T1207 Right hand for RNGN120400 OAL=300mm

Tool holders and spare parts table
