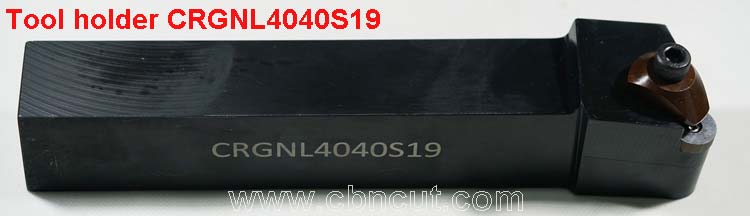

Tool Holder Tool Bar CRGNL4040S1907 left hand

Tool Holder for CBN Insert,Ceramic Insert and Carbide Insert

Tool bar for the turning inserts,external turning tool holders.

Right and and Left hand and Central（non direction）tool holders.

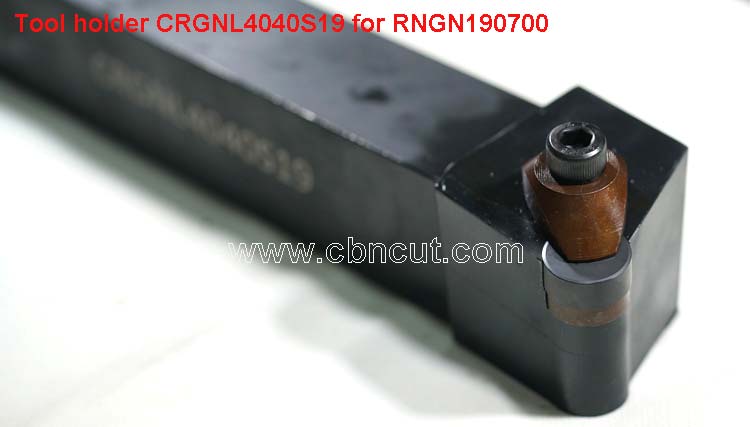

The holder for RNGN190700 and RNGN190400.

CRGNR Square Shank Right Hand Toolholder

CRGNL Square Shank Left Hand Toolholder

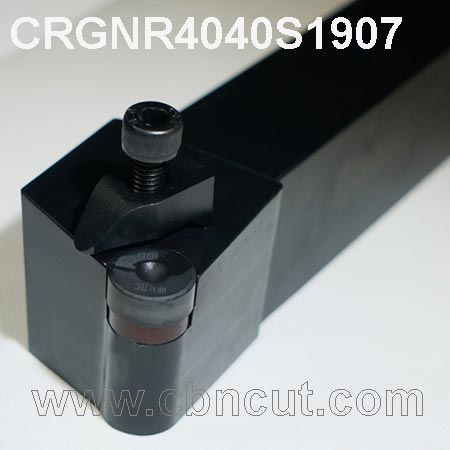

CRGNL4040S1907 CRGNR4040S1907 with length of 250mm,other length can be available.

CRGNL2525M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm

CRGNR2525M1204 Right hand for RNGN120400 OAL=150mm

CRGNL2525M1207 Left hand for RNGN120400 OAL=150mm

CRGNR2525M1207 Right hand for RNGN120400 OAL=150mm

CRGNL2525P1204 Left hand for RNGN120400 OAL=170mm

CRGNR2525P1204 Right hand for RNGN120400 OAL=170mm

CRGNL2525P1207 Left hand for RNGN120400 OAL=170mm

CRGNR2525P1207 Right hand for RNGN120400 OAL=170mm

CRGNL2525R1204 Left hand for RNGN120400 OAL=200mm

CRGNR2525R1204 Right hand for RNGN120400 OAL=200mm

CRGNL2525R1207 Left hand for RNGN120400 OAL=200mm

CRGNR2525R1207 Right hand for RNGN120400 OAL=200mm

CRGNL2525S1204 Left hand for RNGN120400 OAL=250mm

CRGNR2525S1204 Right hand for RNGN120400 OAL=250mm

CRGNL2525S1207 Left hand for RNGN120400 OAL=250mm

CRGNR2525S1207 Right hand for RNGN120400 OAL=250mm

CRGNL2525T1207 Left hand for RNGN120400 OAL=300mm

CRGNR2525T1207 Right hand for RNGN120400 OAL=300mm

Other length and size of the holders can be made according to request.

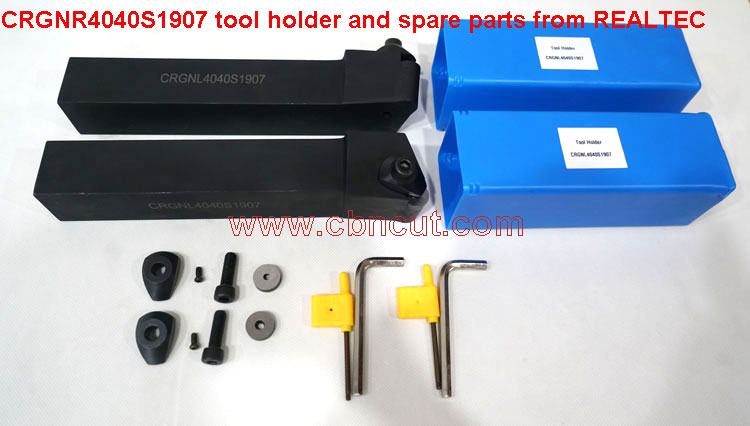

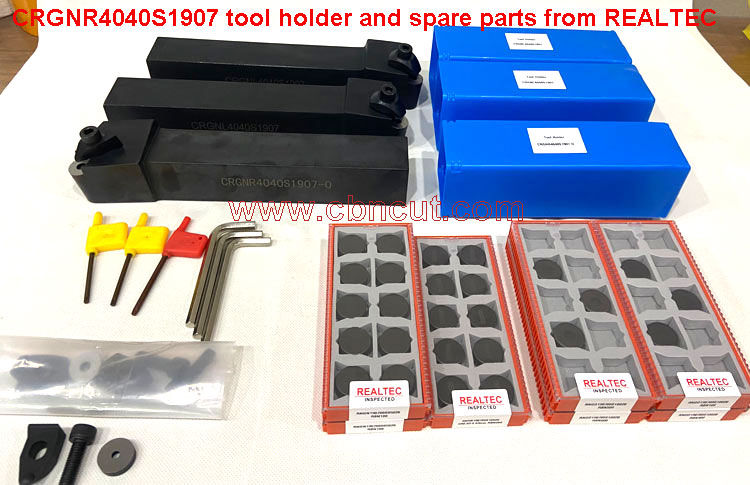

Spare parts of clamp,seat,shim,screw also available.

CRNGL3232M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm

CRNGR3232M1204 Right hand for RNGN120400 OAL=150mm

CRNGL3232M1207 Left hand for RNGN120400 OAL=150mm

CRNGR3232M1207 Right hand for RNGN120400 OAL=150mm

CRNGL3232P1204 Left hand for RNGN120400 OAL=170mm

CRNGR3232P1204 Right hand for RNGN120400 OAL=170mm

CRNGL3232P1207 Left hand for RNGN120400 OAL=170mm

CRNGR3232P1207 Right hand for RNGN120400 OAL=170mm

CRNGL3232R1204 Left hand for RNGN120400 OAL=200mm

CRNGR3232R1204 Right hand for RNGN120400 OAL=200mm

CRNGL3232R1207 Left hand for RNGN120400 OAL=200mm

CRNGR3232R1207 Right hand for RNGN120400 OAL=200mm

CRNGL3232S1204 Left hand for RNGN120400 OAL=250mm

CRNGR3232S1204 Right hand for RNGN120400 OAL=250mm

CRNGL3232S1207 Left hand for RNGN120400 OAL=250mm

CRNGR3232S1207 Right hand for RNGN120400 OAL=250mm

CRNGL3232T1207 Left hand for RNGN120400 OAL=300mm

CRNGR3232T1207 Right hand for RNGN120400 OAL=300mm

CRNGL4040M1204 Left hand for RNGN120400 OAL(Over-all length)=150mm

CRNGR4040M1204 Right hand for RNGN120400 OAL=150mm

CRNGL4040M1207 Left hand for RNGN120400 OAL=150mm

CRNGR4040M1207 Right hand for RNGN120400 OAL=150mm

CRNGL4040P1204 Left hand for RNGN120400 OAL=170mm

CRNGR4040P1204 Right hand for RNGN120400 OAL=170mm

CRNGL4040P1207 Left hand for RNGN120400 OAL=170mm

CRNGR4040P1207 Right hand for RNGN120400 OAL=170mm

CRNGL4040R1204 Left hand for RNGN120400 OAL=200mm

CRNGR4040R1204 Right hand for RNGN120400 OAL=200mm

CRNGL3232R1207 Left hand for RNGN120400 OAL=200mm

CRNGR3232R1207 Right hand for RNGN120400 OAL=200mm

CRNGL3232S1204 Left hand for RNGN120400 OAL=250mm

CRNGR3232S1204 Right hand for RNGN120400 OAL=250mm

CRNGL3232S1207 Left hand for RNGN120400 OAL=250mm

CRNGR3232S1207 Right hand for RNGN120400 OAL=250mm

CRNGL3232T1207 Left hand for RNGN120400 OAL=300mm

CRNGR3232T1207 Right hand for RNGN120400 OAL=300mm

Tool holders and spare parts table
