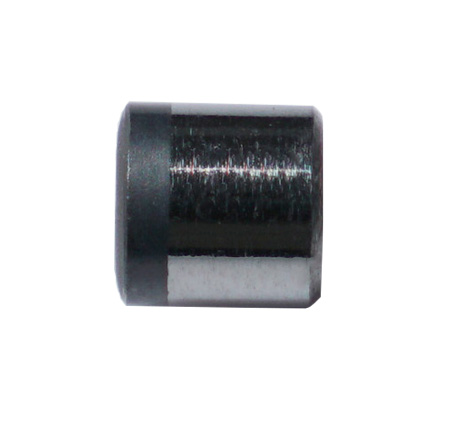

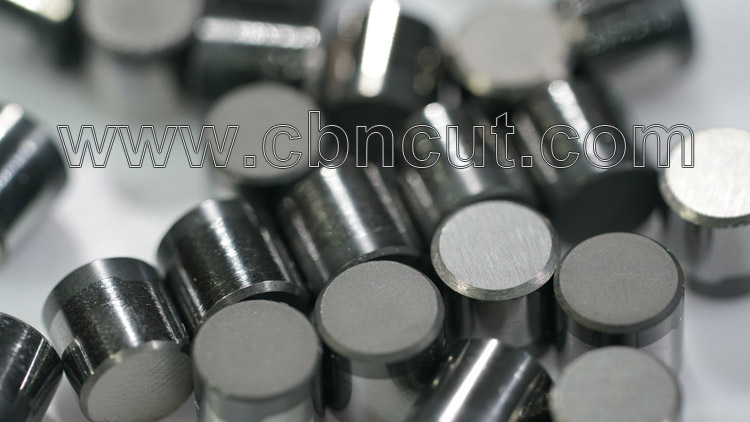

PDC Cutter Ø0808
Diameter 8.0mm±0.05,Thickness 8.0mm±0.1

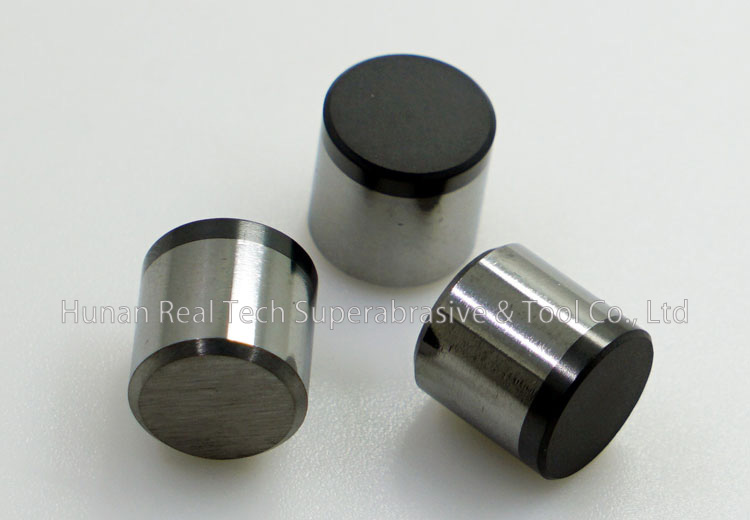

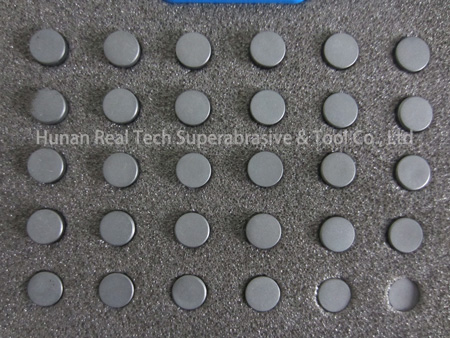

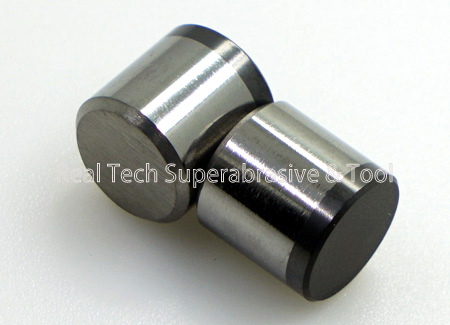

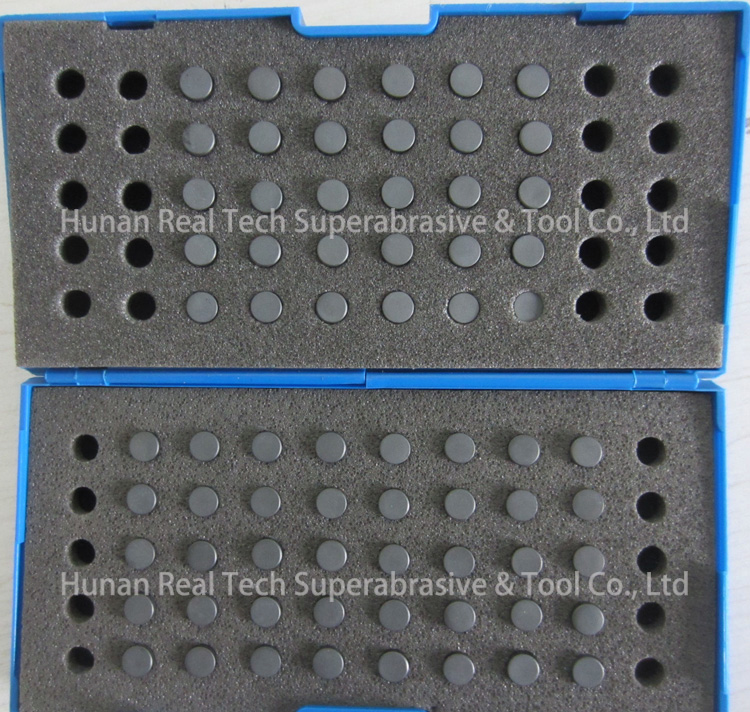

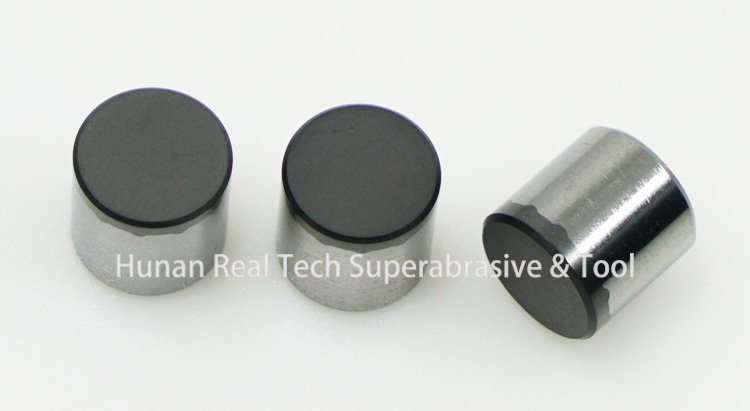

PDC(Polycrystalline Diamond Compact) cutter is consist of PCD（polycrystalline diamond）layer sintered with tungsten carbide substrate under ultra-high temperature and pressure,we can now supply small diameter PDC like 4mm,5mm,6mm to large diameter PDC for drill or grinding applications.
PDC cutters are widely used in petroleum & oil field PDC bit,geological PDC exploration bits, gas exploration bits,PCD/PDC coal mining drill bits,oilfield drilling bits and concrete cutting tips.
We can supply the following sizes PDC cutters and also can do Customs Made according to request.
Commonly used sizes for PDC (Polycrystalline Diamond Compact) Cutters:
| Code | D | T | PCD |
| D04 | 4.00 | 5-10 | 1-2 |
| D05 | 5.00 | 5-10 | 1-2 |
| D06 | 6.00 | 5-10 | 1-2 |
| D0803 | 8.20 | 8.0 | 3.53 |
| D0808 | 8.20 | 8.0 | 2.0 |
| D0811 | 8.20 | 11.0 | 2.0 |
| D1004 | 10.00 | 4.5 | 2.0 |
| D1008 | 10.00 | 8.0 | 2.0 |
| D1010 | 10.00 | 10.0 | 2.0 |
| D1011 | 10.00 | 11.0 | 2.0 |
| D1013 | 10.00 | 13.0 | 2.0 |
| D1303 | 13.30 | 3.53 | 2.0 |
| D1304 | 13.30 | 4.0 | 2.0 |
| D1308 | 13.44 | 8.0 | 2.2 |
| D1310 | 13.44 | 10.0 | 2.2 |
| D1313 | 13.44 | 13.0 | 2.2 |
| D1316 | 13.44 | 16.0 | 2.2 |
| D1608 | 16.00 | 8.0 | 2.2 |
| D1610 | 16.00 | 10.0 | 2.2 |
| D1613 | 16.00 | 13.2 | 2.2 |
| D1616 | 16.00 | 16.0 | 2.2 |
| D1619 | 16.00 | 19.0 | 2.2 |
| D1908 | 19.05 | 8.0 | 2.2 |
| D1913 | 19.05 | 13.2 | 2.2 |
| D1916 | 19.05 | 16.31 | 2.2 |
| D1919 | 19.05 | 19.00 | 2.2 |
| D2508 | 25.40 | 8.0 | 2.4 |
| D2513 | 25.40 | 13.2 | 2.4 |
Commonly ordered and used PDC Cutter sizes as follows:
