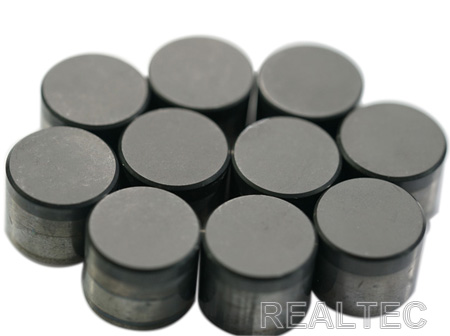

PDC Cutter 1908
Diameter 19.05mm Thickness 8.0mm

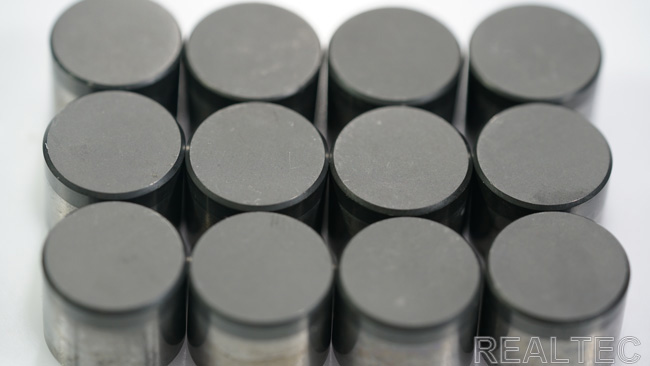

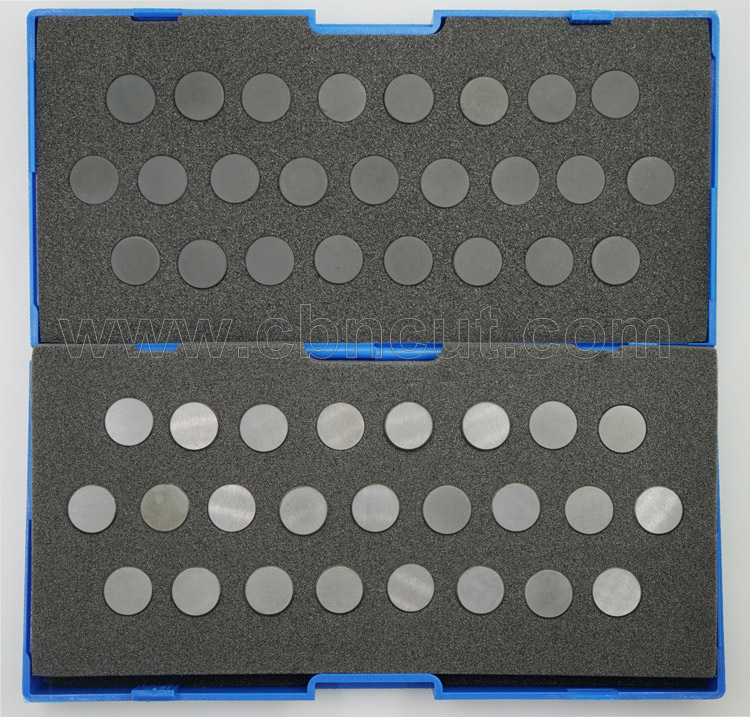

PDC cutter consist of PCD（Polycrystalline Diamond) layer sintered with tungsten carbide substrate under ultra-high temperature and pressure.
PDC cutters are widely used in concrete tools,petroleum & oil field PDC drilling bits,PDC rock drilling bits,geological PDC drilling bits,gas exploration bits,PCD coal mining drill bits.
We can supply the following sizes PDC cutters and also can do Customs Made according to request.
Commonly used sizes:D0808 D1010 D1308 D1313 D0808 D1008 D1613 D1616 D1908 D1913 etc.
Commonly used sizes for PDC (Polycrystalline Diamond Compact) Cutters:
| Code | D | T | PCD |
| D04 | 4.00 | 5-10 | 1-2 |
| D05 | 5.00 | 5-10 | 1-2 |
| D06 | 6.00 | 5-10 | 1-2 |
| D0803 | 8.20 | 8.0 | 3.53 |
| D0808 | 8.20 | 8.0 | 2.0 |
| D0811 | 8.20 | 11.0 | 2.0 |
| D1004 | 10.00 | 4.5 | 2.0 |
| D1008 | 10.00 | 8.0 | 2.0 |
| D1010 | 10.00 | 10.0 | 2.0 |
| D1011 | 10.00 | 11.0 | 2.0 |
| D1013 | 10.00 | 13.0 | 2.0 |
| D1303 | 13.30 | 3.53 | 2.0 |
| D1304 | 13.30 | 4.0 | 2.0 |
| D1308 | 13.44 | 8.0 | 2.2 |
| D1310 | 13.44 | 10.0 | 2.2 |
| D1313 | 13.44 | 13.0 | 2.2 |
| D1316 | 13.44 | 16.0 | 2.2 |
| D1608 | 16.00 | 8.0 | 2.2 |
| D1610 | 16.00 | 10.0 | 2.2 |
| D1613 | 16.00 | 13.2 | 2.2 |
| D1616 | 16.00 | 16.0 | 2.2 |
| D1619 | 16.00 | 19.0 | 2.2 |
| D1908 | 19.05 | 8.0 | 2.2 |
| D1913 | 19.05 | 13.2 | 2.2 |
| D1916 | 19.05 | 16.31 | 2.2 |
| D1919 | 19.05 | 19.00 | 2.2 |
| D2508 | 25.40 | 8.0 | 2.4 |
| D2513 | 25.40 | 13.2 | 2.4 |
Commonly ordered and used PDC Cutter sizes as follows:
