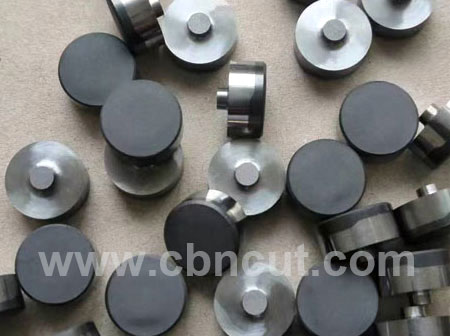

PDC Cutter for Stone Tools
PDC Cutter for granite and marble stone cutting and grinding tools,features excellent anti-shock resistance and good tool life.
PDC cutter for chain saw stone tools also can be used for concrete tools,asphalt tools,floor epoxy tools.

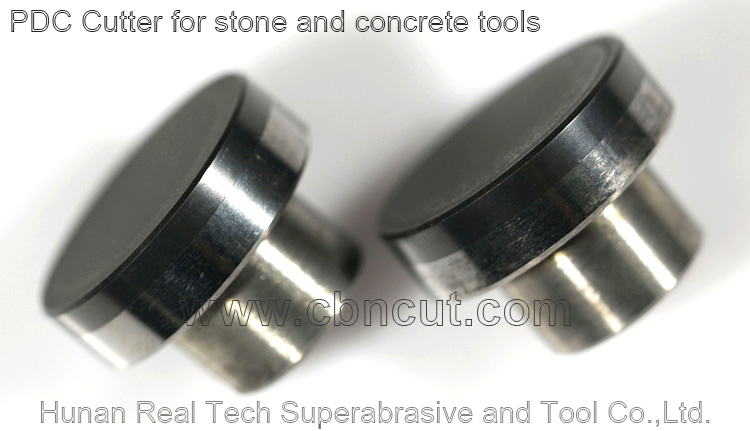

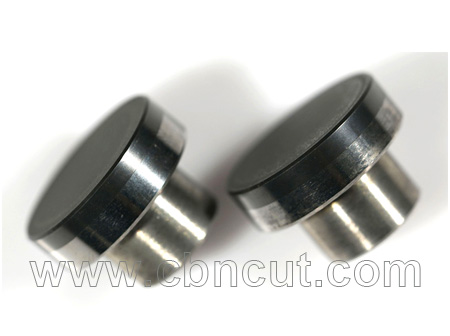

PDC cutter consist of PCD（Polycrystalline Diamond) layer sintered with tungsten carbide substrate under ultra-high temperature and pressure.
Commonly used sizes:D1308 D1313 D0808 D1008 D1613 D1616 D1908 D1913 etc.
Commonly used sizes for PDC (Polycrystalline Diamond Compact) Cutters:
| Code | D | T | PCD |
| D04 | 4.00 | 5-10 | 1-2 |
| D05 | 5.00 | 5-10 | 1-2 |
| D06 | 6.00 | 5-10 | 1-2 |
| D0803 | 8.20 | 8.0 | 3.53 |
| D0808 | 8.20 | 8.0 | 2.0 |
| D0811 | 8.20 | 11.0 | 2.0 |
| D1004 | 10.00 | 4.5 | 2.0 |
| D1008 | 10.00 | 8.0 | 2.0 |
| D1010 | 10.00 | 10.0 | 2.0 |
| D1011 | 10.00 | 11.0 | 2.0 |
| D1013 | 10.00 | 13.0 | 2.0 |
| D1303 | 13.30 | 3.53 | 2.0 |
| D1304 | 13.30 | 4.0 | 2.0 |

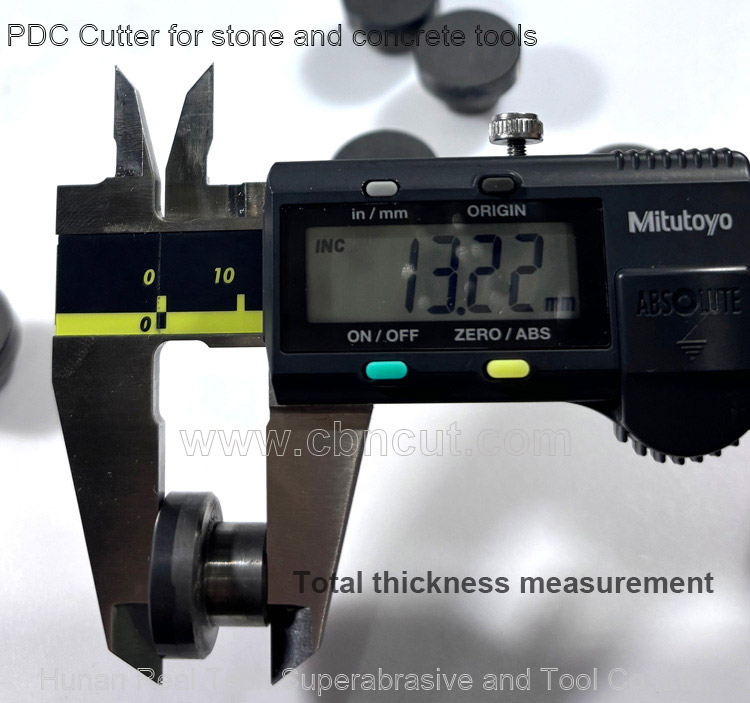

| D1308 | 13.44 | 8.0 | 2.2 |
| D1310 | 13.44 | 10.0 | 2.2 |
| D1313 | 13.44 | 13.0 | 2.2 |
| D1316 | 13.44 | 16.0 | 2.2 |
| D1608 | 16.00 | 8.0 | 2.2 |
| D1610 | 16.00 | 10.0 | 2.2 |
| D1613 | 16.00 | 13.2 | 2.2 |
| D1616 | 16.00 | 16.0 | 2.2 |
| D1619 | 16.00 | 19.0 | 2.2 |

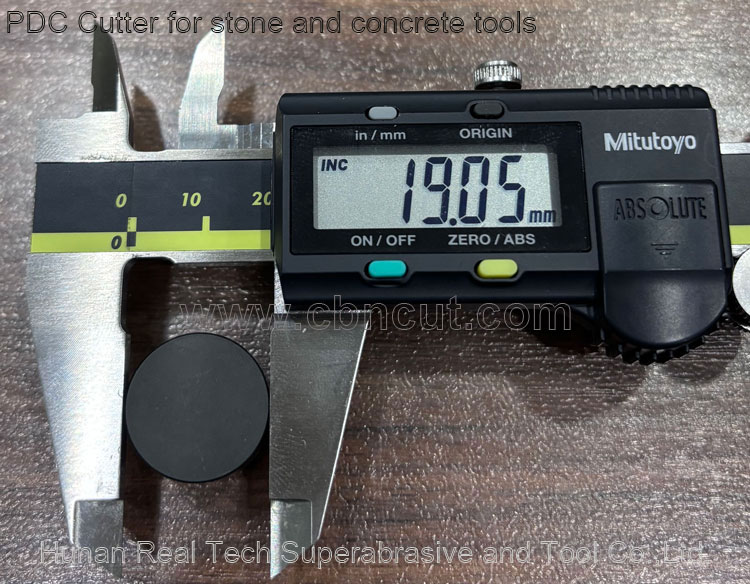

| D1908 | 19.05 | 8.0 | 2.2 |
| D1913 | 19.05 | 13.2 | 2.2 |
| D1916 | 19.05 | 16.31 | 2.2 |
| D1919 | 19.05 | 19.00 | 2.2 |
| D2508 | 25.40 | 8.0 | 2.4 |
| D2513 | 25.40 | 13.2 | 2.4 |
Commonly ordered and used PDC Cutter sizes as follows:
