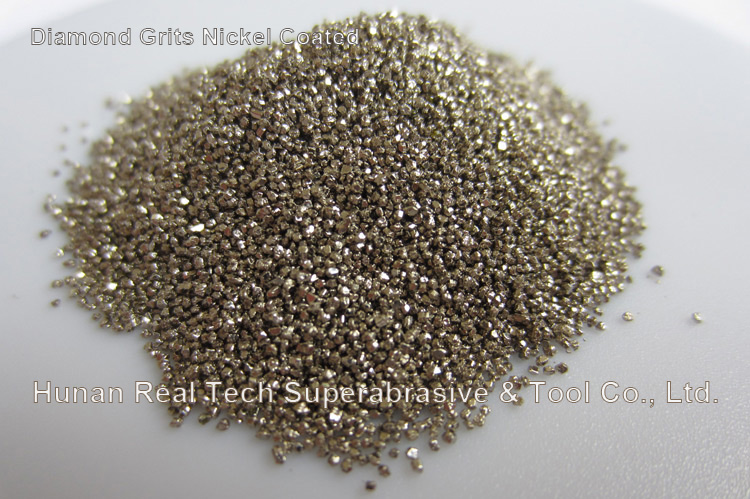

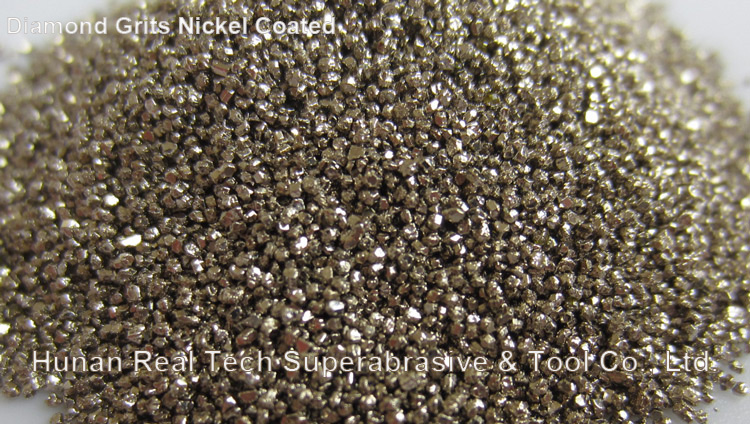

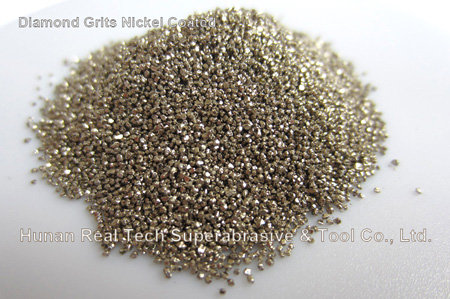

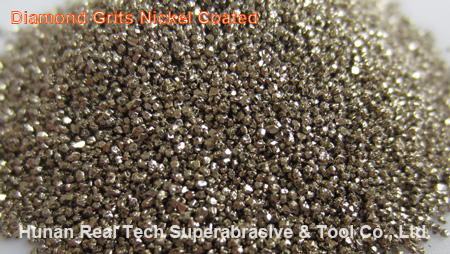

Diamond Grits,Diamond Powder Nickel (Ni) Coating
Diamond Powder Coating Series: Ni Coating (chemical & electroplated),Ti Coating,Cu Coating and other coating are available.
Ni coating can be 30% weight added,35% weight added,50% weight added,56% weight added etc,we can do according to request.
Characteristics: Coated diamond material can improve heat dissipation and reduce heat damage thus protect the diamond (decrease diamond carbonization when sintering at ultrahigh temperature).
Coating makes the diamond particle surface rough to enhance the mechanical retention between diamond and bonds.
Diamond Micron Powder Particle Size Comparison Chart
| Chinese Standard (um) | Product Designation Size (um) | Factory Workshop Standard |
Equivalent US Mesh Size |
| 0-0.25 | 0-0.25 | W0.25 | 60000# |
| 0-0.5 | 0-0.4 | W0.5 | 28000# |
| 0-1 | 0-0.8 | W1 | 15000# |
| 0.5-1 | 0.4-0.8 | — | — |
| 0.5-1.5 | 0.4-1.2 | W1.5 | 13000# |
| 0-2 | 0-1.6 | W2.5 | — |
| 1.5-3 | 1.2-2.3 | W3.5 | 8000# |
| 2-4 | 1.6-3.1 | — | 5000# |
| 2.5-5 | 1.9-3.9 | W5 | 4000# |
| 3-6 | 2.3-4.7 | W7 | 3000# |
| 4-8 | 3.1-6.2 | — | 2500# |
| 5-10 | 3.9-7.8 | W10 | 2000# |
| 6-12 | 4.7-9.3 | — | 1500# |
| 8-12 | 6.2-9.3 | W14 | 1200# |
| 10-20 | 7.8-15.5 | W20 | 800# |
| 12-22 | 9.3-17.1 | — | 700# |
| 20-30 | 15.5-23.3 | — | 600# |
| 22-36 | 17.1-27.9 | W28 | — |
| 36-54 | 27.9-41.9 | W40 | 400# |
Diamond Grits Mesh Sizes Comparison Chart
|
REALTEC |
International Standard |
FEPA (Euro) |
USA |
JAPAN |
Theoretical Basic Size |
RUSSIA |
||||||||
|
GB/T6406-1995 |
ISO |
ANSI B74.16-1971 |
JIS4130-1998 |
9206-80 |
||||||||||
| Mesh | Grain Size | Grain | Mesh | Size | Grain | Mesh | Mesh | Grain Size | Mesh | Grain Size | Inch | Millimeter | Mesh | Grain Size |
| 40/50 | 425/300 | 427 | 40/50 | 425/300 | D427 | 355/300 | 40/50 | 425/300 | 40/50 | 425/300 | 0.015 | 0.378 | 500/400 | 500/400 |
| 50/60 | 300/250 | 301 | 50/60 | 300/250 | D301 | 300/250 | 50/60 | 300/250 | 50/60 | 300/250 | 0.011 | 0.288 | 400/315 | 400/315 |
| 60/80 | 250/180 | 252 | 60/80 | 250/180 | D252 | 250/180 | 60/80 | 250/180 | 60/80 | 250/180 | 0.009 | 0.226 | 250/200 | 250/200 |
| 80/100 | 180/150 | 181 | 80/100 | 180/150 | D181 | 180/150 | 80/100 | 180/150 | 80/100 | 180/150 | 0.0069 | 0.174 | 200/160 | 200/160 |
| 100/120 | 150/125 | 151 | 100/120 | 150/125 | D151 | 150/125 | 100/120 | 150/125 | 100/120 | 150/125 | 0.0058 | 0.148 | 160/125 | 160/125 |
| 120/140 | 125/106 | 126 | 120/140 | 125/106 | D126 | 125/106 | 120/140 | 125/106 | 120/140 | 125/106 | 0.0048 | 0.123 | 125/100 | 125/100 |
| 140/170 | 106/90 | 107 | 140/170 | 106/90 | D107 | 106/90 | 140/170 | 106/90 | 140/170 | 106/90 | 0.0041 | 0.103 | 100/80 | 100/80 |
| 170/200 | 90/75 | 91 | 170/200 | 90/75 | D91 | 90/75 | 170/200 | 90/75 | 170/200 | 90/75 | 0.0034 | 0.866 | 80/63 | 80/63 |
| 200/230 | 75/63 | 76 | 200/230 | 75/63 | D76 | 75/63 | 200/230 | 75/63 | 200/230 | 75/63 | 0.0030 | 0.075 | 63/50 | 63/50 |
| 230/270 | 63/53 | 64 | 230/270 | 63/53 | D64 | 63/53 | 230/270 | 63/53 | 230/270 | 63/53 | 0.0026 | 0.066 | 50/40 | 50/40 |
| 270/325 | 53/45 | 54 | 270/325 | 53/45 | D54 | 53/45 | 270/325 | 53/45 | 270/325 | 53/45 | 0.0022 | 0.057 | ||
| 325/400 | 45/38 | 46 | 325/400 | 45/38 | D46 | 45/38 | 325/400 | 45/38 | 325/400 | 45/38 | 0.0019 | 0.048 | ||
