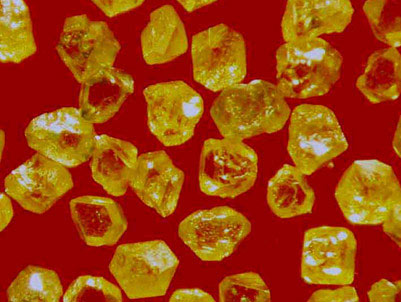

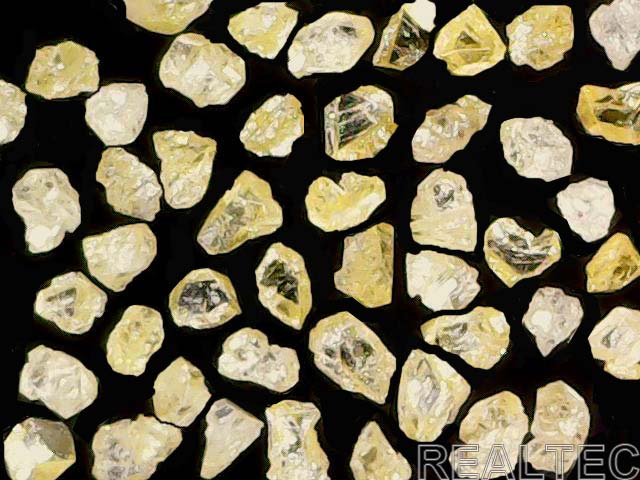

Synthetic Diamond Grit RVD-A
RVD-A diamond powder diamond grit is good self-shapening and strong mechanical retention,RVD synthetic diamond powder widely used for natural diamond bruting,gem stone cutting and synthetic diamond tools ,RVD diamond powder is the ideal diamond for resin bond diamond tool and vitrified bond wheels,also used for a variety of glasses and other hard materials grinding applications .
Features of RVD diamond grit:
- Green color,good self-sharpening
- Low toughness and thermal stability
- Irregular and angular shape
Application:
- Grinding wheel for carbide tool,glass
- Ceramic and stone grinding tools
- Processing hard alloy and non-metal material.
Mesh Size Availability our RVD-A grade diamond grits:35/40, 40/50, 50/60, 60/70, 70/80, 80/100, 100/120, 120/140, 140/170,170/200, 200/230, 230/270, 270/325, 325/400, 400/500, 500/600,600/700,700/800.
Diamond Grits Mesh Sizes Comparison Chart
|
REALTEC |
International Standard |
FEPA (Euro) |
USA |
JAPAN |
Theoretical Basic Size |
RUSSIA |
||||||||
|
GB/T6406-1995 |
ISO |
ANSI B74.16-1971 |
JIS4130-1998 |
9206-80 |
||||||||||
| Mesh | Grain Size | Grain | Mesh | Size | Grain | Mesh | Mesh | Grain Size | Mesh | Grain Size | Inch | Millimeter | Mesh | Grain Size |
| 40/50 | 425/300 | 427 | 40/50 | 425/300 | D427 | 355/300 | 40/50 | 425/300 | 40/50 | 425/300 | 0.015 | 0.378 | 500/400 | 500/400 |
| 50/60 | 300/250 | 301 | 50/60 | 300/250 | D301 | 300/250 | 50/60 | 300/250 | 50/60 | 300/250 | 0.011 | 0.288 | 400/315 | 400/315 |
| 60/80 | 250/180 | 252 | 60/80 | 250/180 | D252 | 250/180 | 60/80 | 250/180 | 60/80 | 250/180 | 0.009 | 0.226 | 250/200 | 250/200 |
| 80/100 | 180/150 | 181 | 80/100 | 180/150 | D181 | 180/150 | 80/100 | 180/150 | 80/100 | 180/150 | 0.0069 | 0.174 | 200/160 | 200/160 |
| 100/120 | 150/125 | 151 | 100/120 | 150/125 | D151 | 150/125 | 100/120 | 150/125 | 100/120 | 150/125 | 0.0058 | 0.148 | 160/125 | 160/125 |
| 120/140 | 125/106 | 126 | 120/140 | 125/106 | D126 | 125/106 | 120/140 | 125/106 | 120/140 | 125/106 | 0.0048 | 0.123 | 125/100 | 125/100 |
| 140/170 | 106/90 | 107 | 140/170 | 106/90 | D107 | 106/90 | 140/170 | 106/90 | 140/170 | 106/90 | 0.0041 | 0.103 | 100/80 | 100/80 |
| 170/200 | 90/75 | 91 | 170/200 | 90/75 | D91 | 90/75 | 170/200 | 90/75 | 170/200 | 90/75 | 0.0034 | 0.866 | 80/63 | 80/63 |
| 200/230 | 75/63 | 76 | 200/230 | 75/63 | D76 | 75/63 | 200/230 | 75/63 | 200/230 | 75/63 | 0.0030 | 0.075 | 63/50 | 63/50 |
| 230/270 | 63/53 | 64 | 230/270 | 63/53 | D64 | 63/53 | 230/270 | 63/53 | 230/270 | 63/53 | 0.0026 | 0.066 | 50/40 | 50/40 |
| 270/325 | 53/45 | 54 | 270/325 | 53/45 | D54 | 53/45 | 270/325 | 53/45 | 270/325 | 53/45 | 0.0022 | 0.057 | ||
| 325/400 | 45/38 | 46 | 325/400 | 45/38 | D46 | 45/38 | 325/400 | 45/38 | 325/400 | 45/38 | 0.0019 | 0.048 | ||
