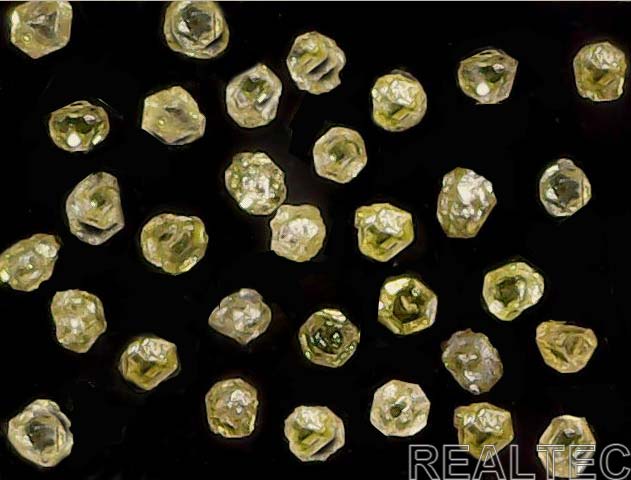

Synthetic Diamond Grit RVD-C
RVD-C grade diamond powder diamond grit is good self-shapening and strong mechanical retention.
RVD synthetic diamond powder widely used for natural diamond bruting,gem stone cutting and synthetic diamond tools ,RVD diamond powder is the ideal diamond for resin bond diamond tool and vitrified bond wheels,also used for a variety of glasses and other hard materials grinding applications .
Features of RVD-C diamond grit:
- Comparative regular shape and surface
- General toughness and thermal stability
Application:
- Low force grinding and cutting of glass,quartz and carbide.
- Grinding less sevre pencil edging
- Polishing ceramic tiles and stone .
- Semi-finishing flat glass,dental burrs.
- Beveling of furniture glass and mirrors.
Mesh Size Availability our RVD-C grade diamond grits:35/40, 40/50, 50/60, 60/70,70/80,80/100,100/120,120/140,140/170,170/200,200/230,230/270,270/325, 325/400,400/500,500/600,600/700,700/800.
Diamond Grits Mesh Sizes Comparison Chart
|
REALTEC |
International Standard |
FEPA (Euro) |
USA |
JAPAN |
Theoretical Basic Size |
RUSSIA |
||||||||
|
GB/T6406-1995 |
ISO |
ANSI B74.16-1971 |
JIS4130-1998 |
9206-80 |
||||||||||
| Mesh | Grain Size | Grain | Mesh | Size | Grain | Mesh | Mesh | Grain Size | Mesh | Grain Size | Inch | Millimeter | Mesh | Grain Size |
| 40/50 | 425/300 | 427 | 40/50 | 425/300 | D427 | 355/300 | 40/50 | 425/300 | 40/50 | 425/300 | 0.015 | 0.378 | 500/400 | 500/400 |
| 50/60 | 300/250 | 301 | 50/60 | 300/250 | D301 | 300/250 | 50/60 | 300/250 | 50/60 | 300/250 | 0.011 | 0.288 | 400/315 | 400/315 |
| 60/80 | 250/180 | 252 | 60/80 | 250/180 | D252 | 250/180 | 60/80 | 250/180 | 60/80 | 250/180 | 0.009 | 0.226 | 250/200 | 250/200 |
| 80/100 | 180/150 | 181 | 80/100 | 180/150 | D181 | 180/150 | 80/100 | 180/150 | 80/100 | 180/150 | 0.0069 | 0.174 | 200/160 | 200/160 |
| 100/120 | 150/125 | 151 | 100/120 | 150/125 | D151 | 150/125 | 100/120 | 150/125 | 100/120 | 150/125 | 0.0058 | 0.148 | 160/125 | 160/125 |
| 120/140 | 125/106 | 126 | 120/140 | 125/106 | D126 | 125/106 | 120/140 | 125/106 | 120/140 | 125/106 | 0.0048 | 0.123 | 125/100 | 125/100 |
| 140/170 | 106/90 | 107 | 140/170 | 106/90 | D107 | 106/90 | 140/170 | 106/90 | 140/170 | 106/90 | 0.0041 | 0.103 | 100/80 | 100/80 |
| 170/200 | 90/75 | 91 | 170/200 | 90/75 | D91 | 90/75 | 170/200 | 90/75 | 170/200 | 90/75 | 0.0034 | 0.866 | 80/63 | 80/63 |
| 200/230 | 75/63 | 76 | 200/230 | 75/63 | D76 | 75/63 | 200/230 | 75/63 | 200/230 | 75/63 | 0.0030 | 0.075 | 63/50 | 63/50 |
| 230/270 | 63/53 | 64 | 230/270 | 63/53 | D64 | 63/53 | 230/270 | 63/53 | 230/270 | 63/53 | 0.0026 | 0.066 | 50/40 | 50/40 |
| 270/325 | 53/45 | 54 | 270/325 | 53/45 | D54 | 53/45 | 270/325 | 53/45 | 270/325 | 53/45 | 0.0022 | 0.057 | ||
| 325/400 | 45/38 | 46 | 325/400 | 45/38 | D46 | 45/38 | 325/400 | 45/38 | 325/400 | 45/38 | 0.0019 | 0.048 | ||
