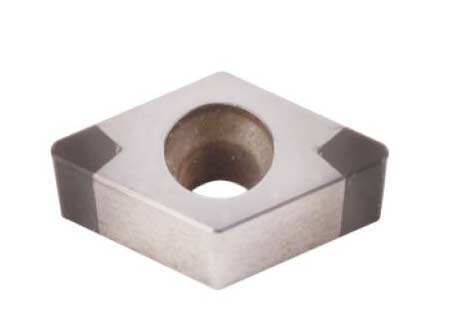

CCGW Heavy Turning CBN Inserts
CCGW throughly welded cbn inserts have 2 tips or CBN edges on each CBN insert,suitable for cutting cast iron,alloy,carbide and hardened steel workpieces.
Common ordered shapes and sizes:
CCGW09T304 CCGW09T308 CCGW09T312 CCGW120404 CCGW120408 CCGW120412
CCMW09T304 CCMW09T308 CCMW09T312 CCMW120404 CCMW120408 CCMW120412
Edge Prep.: T01010 T01020 S01015 S01020 S02020
CCGW Heavy Turning CBN Inserts Availability:

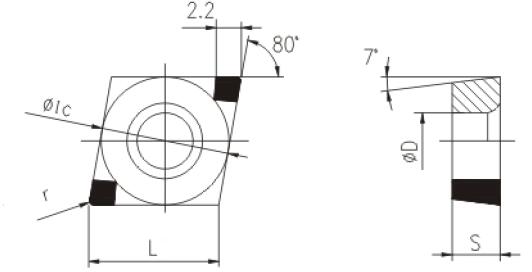

| ISO | L | IC | s | d | r |
| CCGW09T304 | 9 | 9.525 | 3.97 | 4.4 | 0.4 |
| CCGW09T308 | 9 | 9.525 | 3.97 | 4.4 | 0.8 |
| CCGW09T312 | 9 | 9.525 | 3.97 | 4.4 | 1.2 |
| CCGW120404 | 12 | 12.7 | 4.76 | 5.5 | 0.4 |
| CCGW120408 | 12 | 12.7 | 4.76 | 5.5 | 0.8 |
| CCGW120412 | 12 | 12.7 | 4.76 | 5.5 | 1.2 |

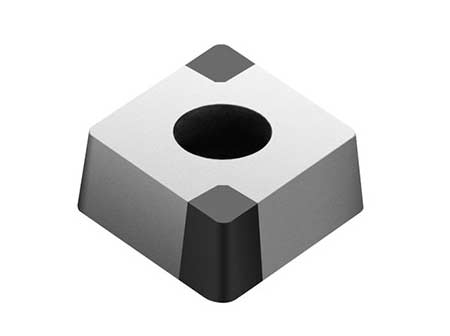

Other related products of heavy turning and strongly welded CBN inserts:
