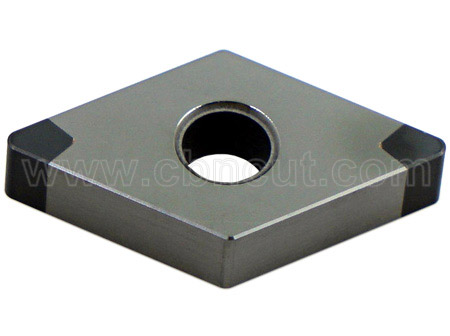

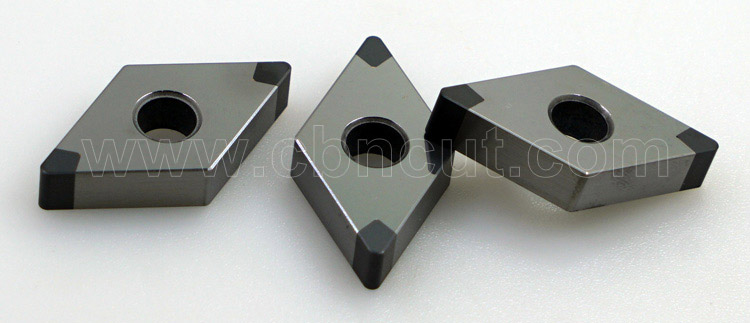

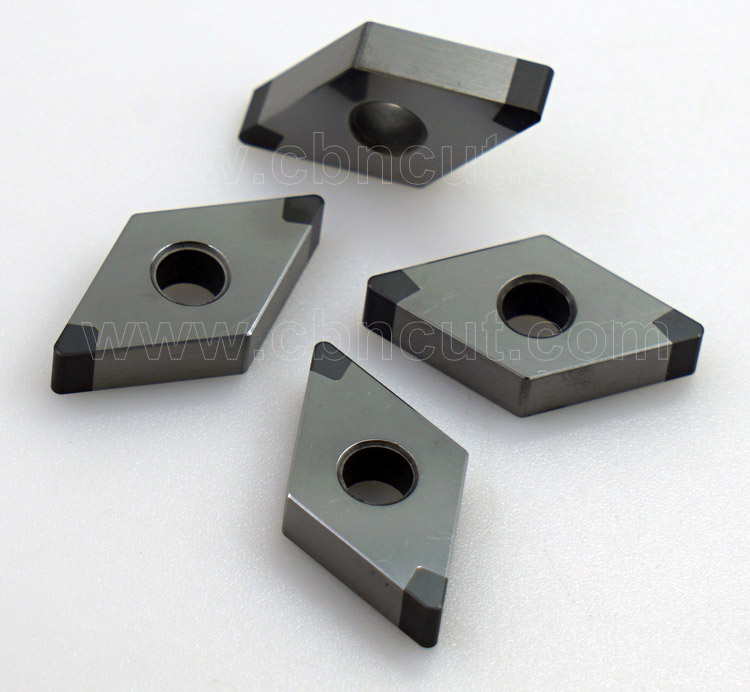

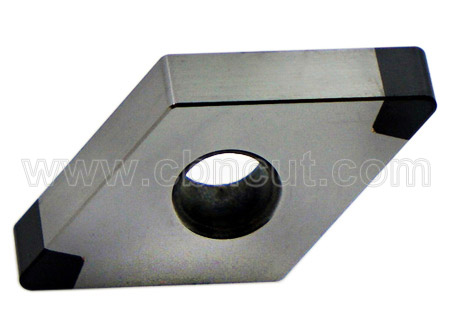

DNGA Heavy Tunring CBN Insert

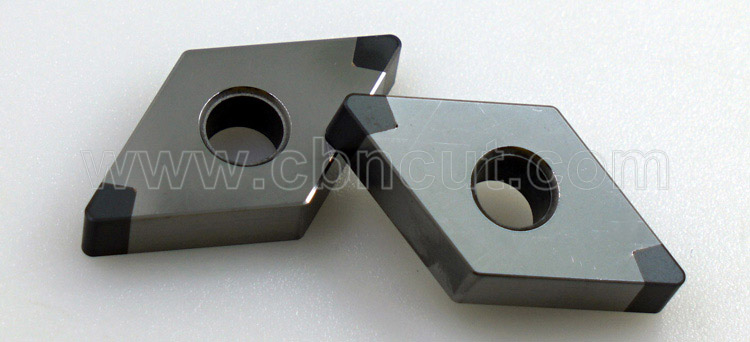

Heavy turning CBN inserts with big CBN tips for turning applications,each insert has 4 CBN tips and the CBN edge are all throughly welded.
Used for bearing steel,alloy steel,cast iron turning and cutting.
DNGA150404 DNGA150408 DNGA150412 DNGA150416 DNGA160404 DNGA160408 DNGA160412 DNGA160416 DNGA110404 DNGA110408 DNGA110412
DNMA150404 DNMA150408 DNMA150412 DNMA150416 DNMA160404 DNMA160408 DNMA160412 DNMA160416 DNMA110404 DNMA110408 DNMA110412

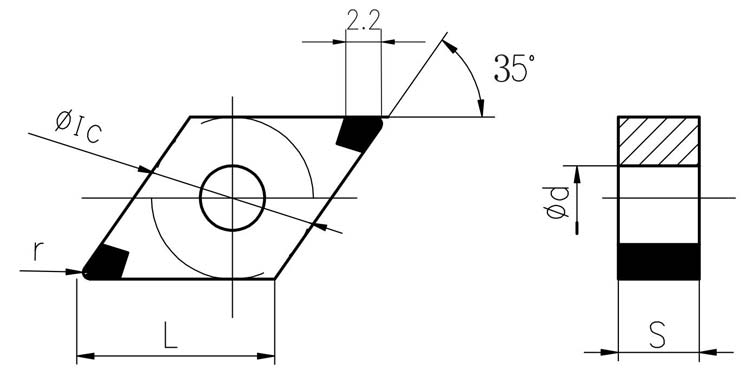

DNGA Throughly Welded Heavy Turning CBN Insert Availability:
| DNGA150404 | 431 | 15.875 | 12.7 | 4.76 | 0.4 |
| DNGA150408 | 432 | 15.875 | 12.7 | 4.76 | 0.8 |
| DNGA150412 | 433 | 15.875 | 12.7 | 4.76 | 1.2 |
| DNGA150416 | 434 | 15.875 | 12.7 | 4.76 | 1.6 |
| DNGA150604 | 431 | 15.875 | 12.7 | 6.35 | 0.4 |
| DNGA150608 | 432 | 15.875 | 12.7 | 6.35 | 0.8 |
| DNGA150612 | 433 | 15.875 | 12.7 | 6.35 | 1.2 |
| DNGA150616 | 434 | 15.875 | 12.7 | 6.35 | 1.6 |
| DNGA160404 | 431 | 15.875 | 12.7 | 4.76 | 0.4 |
| DNGA160408 | 432 | 15.875 | 12.7 | 4.76 | 0.8 |
| DNGA160412 | 433 | 15.875 | 12.7 | 4.76 | 1.2 |
| DNGA160416 | 434 | 15.875 | 12.7 | 4.76 | 1.6 |
