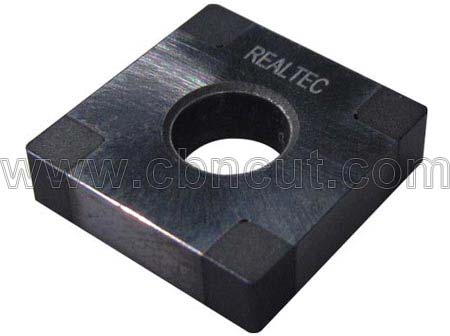

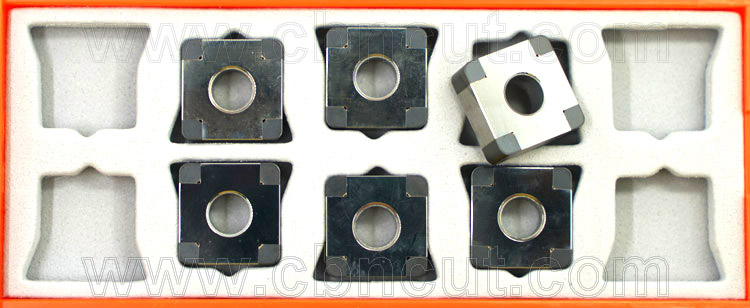

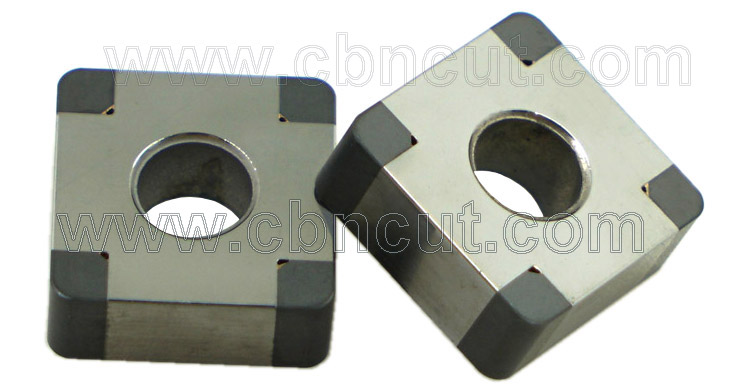

SNGA Heavy Turning CBN Inserts
Throughly welded and strongly welded CBN and PCBN turning inserts with 8 CBN tips on each insert.
SNGA120404 SNGA120408 SNGA120412 SNGA120416
SNMA120404 SNMA120408 SNMA120412 SNMA120416
SNGA Heavy Turning CBN Insert Availability:

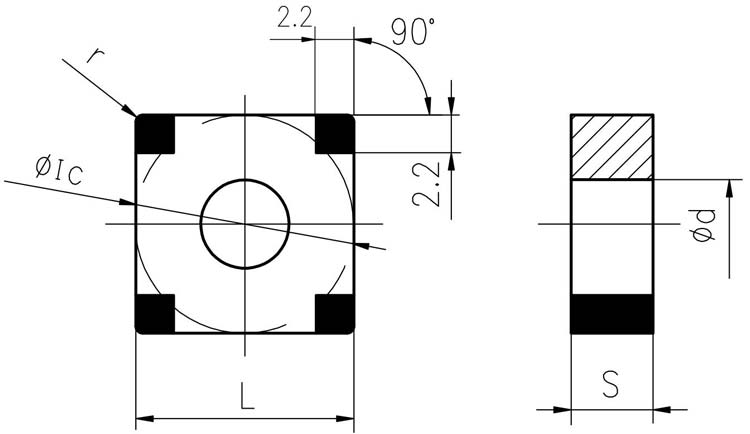

| ISO | L | IC | s | d | r |
| SNGA120404 | 12 | 12.7 | 4.76 | 5.16 | 0.4 |
| SNGA120408 | 12 | 12.7 | 4.76 | 5.16 | 0.8 |
| SNGA120412 | 12 | 12.7 | 4.76 | 5.16 | 1.2 |
CBN Grade Availability:
| RCBN-01 | RCBN-02 | RCBN-03 | RCBN-04 | RCBN-05 | RCBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S01225 | S02020 |
| √ | √ | √ | √ | √ |
