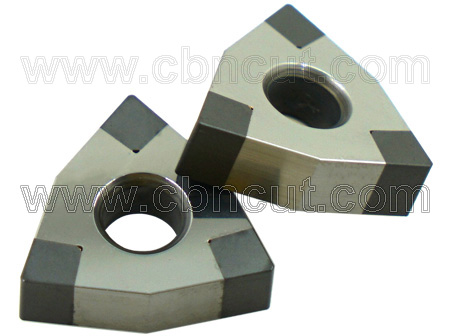

WNGA Heavy Turning CBN Inserts
WNGA throughly welded cbn inserts have 6 tips or CBN edges on each CBN insert,suitable for cutting cast iron,alloy,carbide and hardened steel workpieces.
Common ordered shapes and sizes:
WNGA060404 WNGA060408 WNGA060412 WNGA080404 WNGA080408 WNGA080412
WNMA060404 WNMA060408 WNMA060412 WNMA080404 WNMA080408 WNMA080412
T01020 T02020 S01020 S01225 S02020

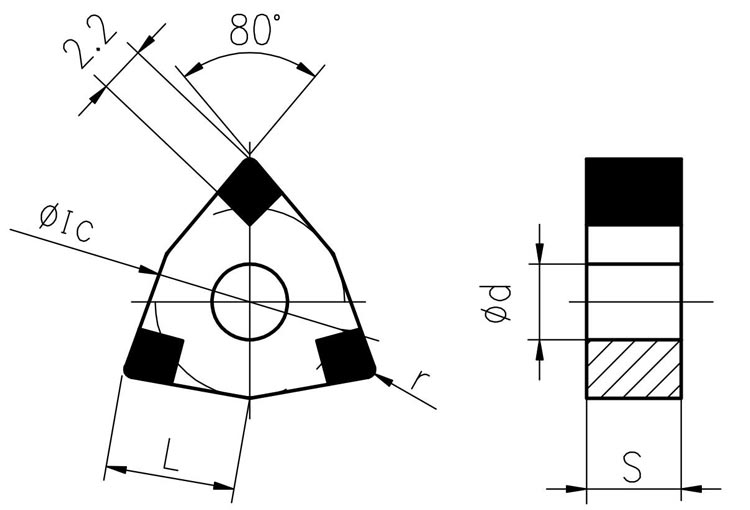

WNGA and WNMA CBN Insert Specification:
| ISO | L | IC | s | d | r |
| WNGA060404 | 6 | 9.525 | 4.76 | 3.81 | 0.4 |
| WNGA060408 | 6 | 9.525 | 4.76 | 3.81 | 0.8 |
| WNGA060412 | 6 | 9.525 | 4.76 | 3.81 | 1.2 |
| WNGA080404 | 8 | 12.7 | 4.76 | 5.5 | 0.4 |
| WNGA080408 | 8 | 12.7 | 4.76 | 5.5 | 0.8 |
| WNGA080412 | 8 | 12.7 | 4.76 | 5.5 | 1.2 |
