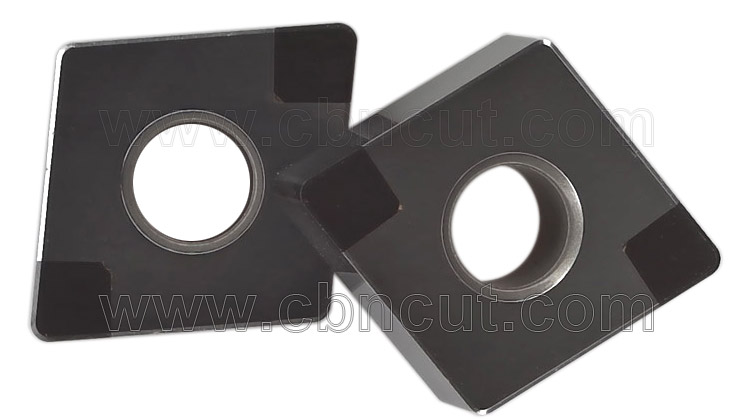

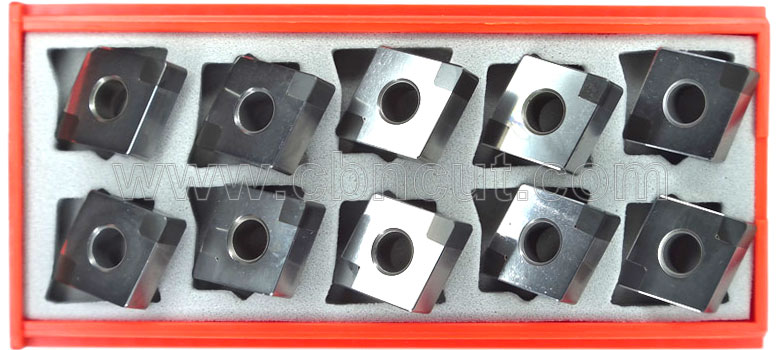

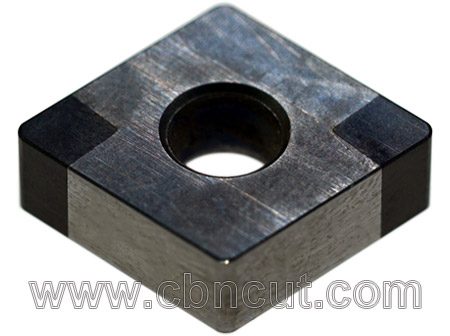

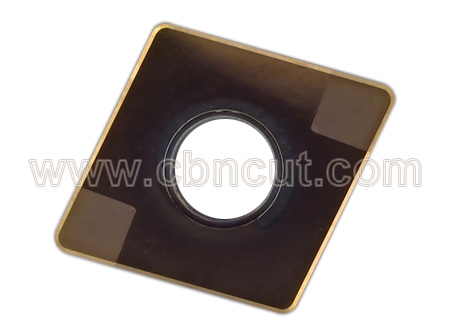

CNGA CBN Inserts
CNGA and CNMA throughly welded cbn inserts used for turning and cutting cast iron,alloy,carbide and steel workpieces.
4 CBN tips on each CBN insert.
CNGA120404 (CNGA431) CNGA120408 (CNGA432) CNGA120412 (CNGA433) CNGA120416 (CNGA434)
CNMA120404 (CNMA431) CNMA120408 (CNMA432) CNMA120412 (CNMA433) CNMA120416 (CNMA434)
Edge Prep.: T01010 T01015 T01020 S01015 S01020 S02020
CNGA Heavy Turning CBN Inserts Availability:

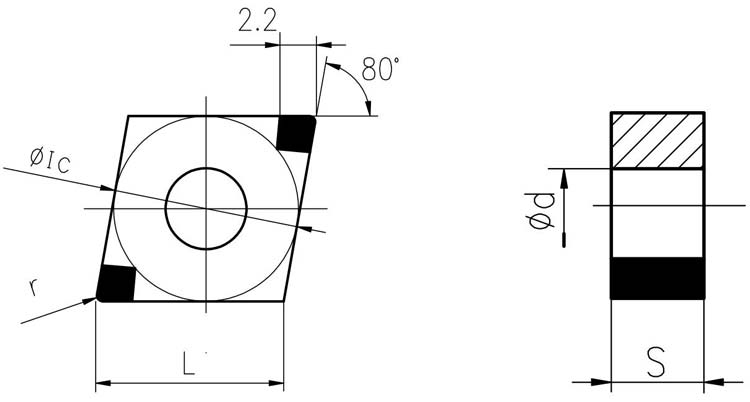

| ISO | Inch | L | Φ IC | S | Φ d | r |
| CNGA120404 | 431 | 12 | 12.7 | 4.76 | 5.16 | 0.4 |
| CNGA120408 | 432 | 12 | 12.7 | 4.76 | 5.16 | 0.8 |
| CNGA120412 | 433 | 12 | 12.7 | 4.76 | 5.16 | 1.2 |
| CNGA160404 | 531 | 16 | 15.875 | 4.76 | 5.16 | 0.4 |
| CNGA160408 | 532 | 16 | 15.875 | 4.76 | 5.16 | 0.8 |
| CNGA160412 | 533 | 16 | 15.875 | 4.76 | 5.16 | 1.2 |
Other related products of heavy turning and strongly welded CBN inserts:
