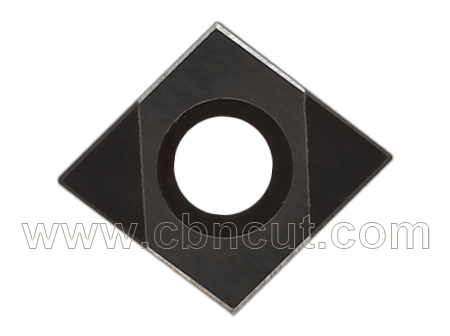

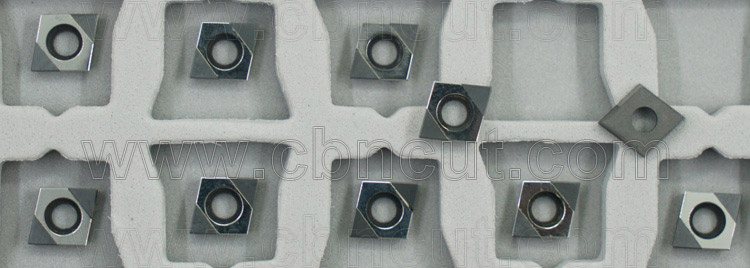

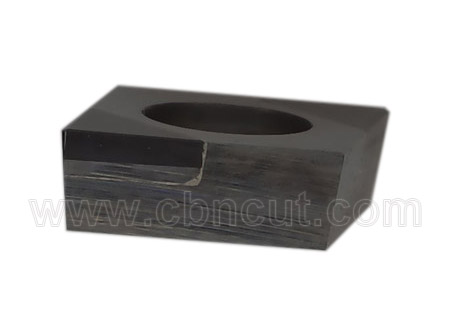

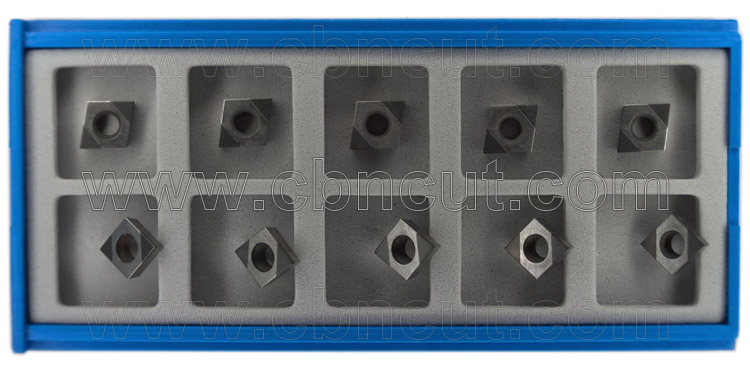

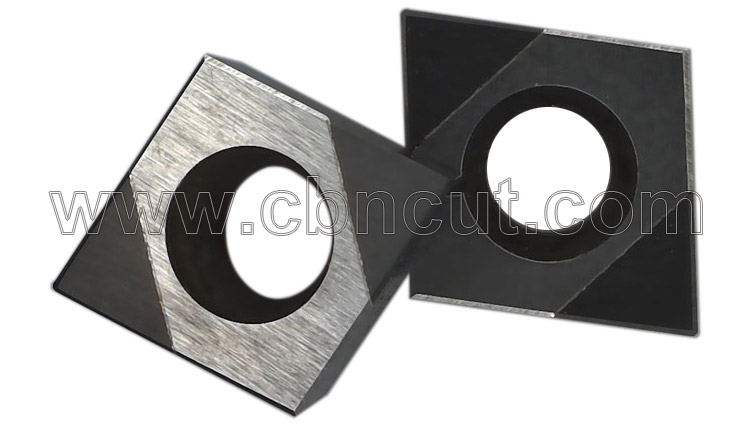

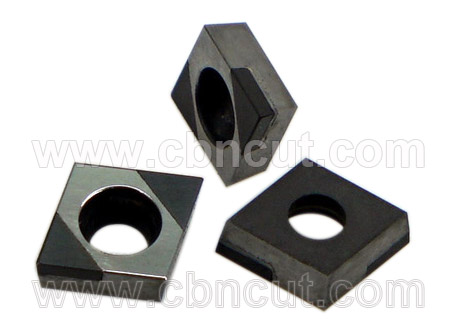

CCGW PCBN Inserts 2 Tips
CCGW CBN inserts used for semi-finish and finish turning cast iron,alloy cast iron and hardened steel materials,2 tips take full used of the carbide blanks and provide double cutting edges.
CCGW060202 CCGW06T302 CCGW09T304 CCGW09T308 CCGW09T302 CCGW11T302 DCGW11T304 DCGW11T308 and other sizes available.
Type and Dimentions:
| ISO | L | IC | s | r |
| CCGW060202 | 6 | 6.35 | 2.38 | 0.2 |
| CCGW060204 | 6 | 6.35 | 2.38 | 0.4 |
| CCGW060208 | 6 | 6.35 | 2.38 | 0.8 |
| CCGW09T302 | 9 | 5.56 | 3.97 | 0.2 |
| CCGW09T304 | 9 | 9.525 | 3.97 | 0.4 |
| CCGW09T308 | 9 | 9.525 | 3.97 | 0.8 |
| CCGW09T312 | 9 | 9.525 | 3.97 | 1.2 |
| CCGW110304 | 11 | 12.7 | 3.97 | 0.4 |
| CCGW11T302 | 11 | 12.7 | 3.97 | 0.2 |
| CPGW11T304 | 11 | 12.7 | 3.97 | 0.4 |
| CPGW11T308 | 11 | 12.7 | 3.97 | 0.8 |
CBN Grade Availability:
| RCBN-01 | RCBN-02 | RCBN-03 | RCBN-04 | RCBN-05 | RCBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S01225 | S02020 |
| √ | √ | √ | √ | √ |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
