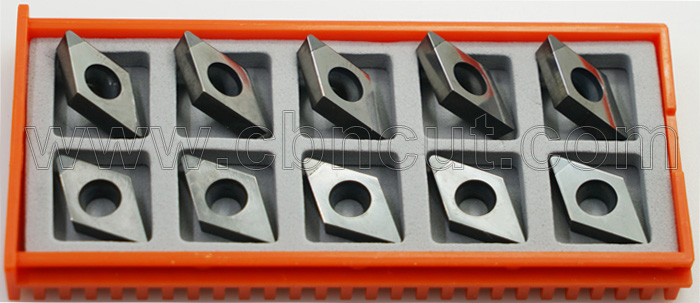

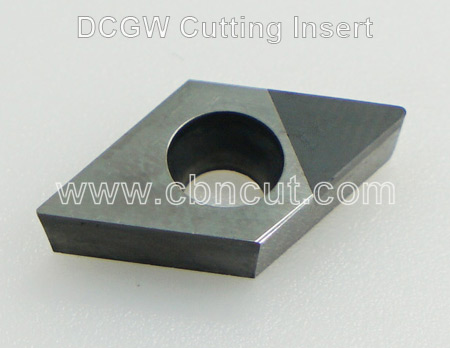

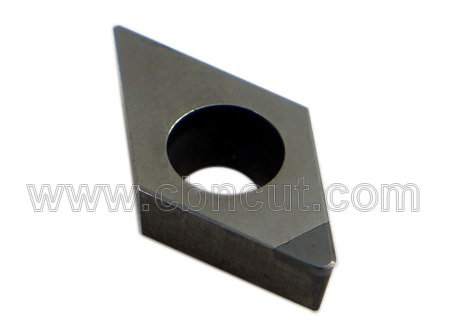

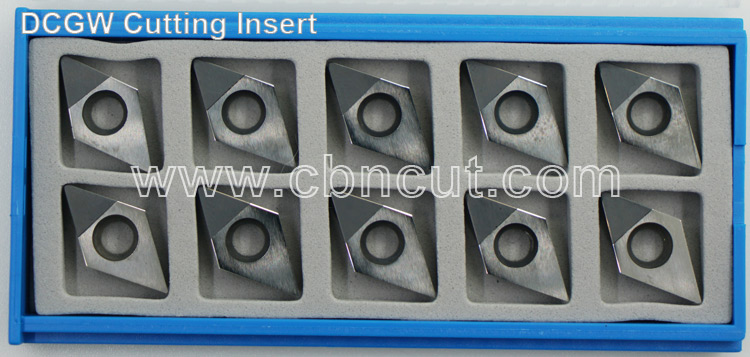

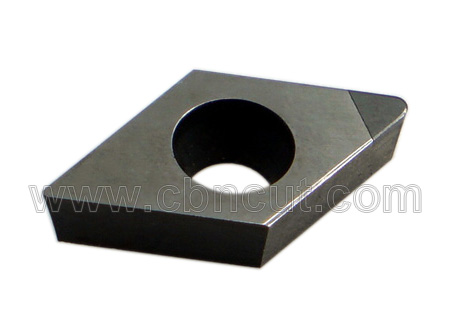

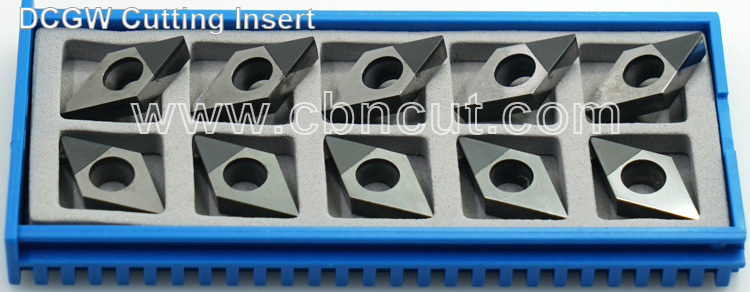

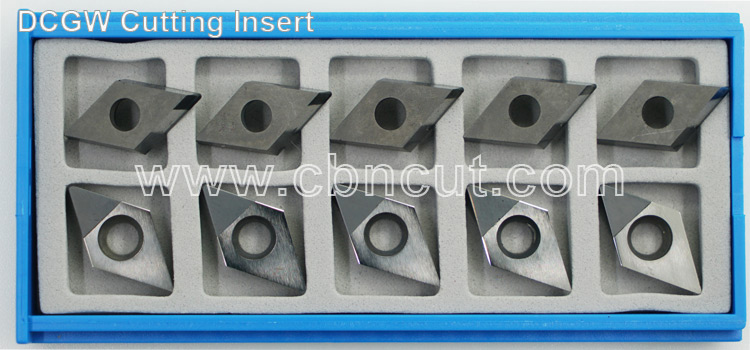

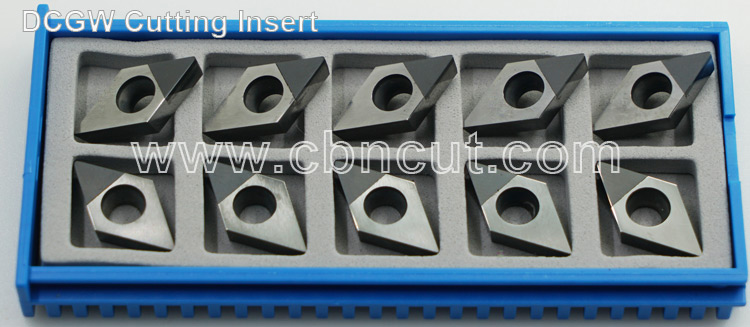

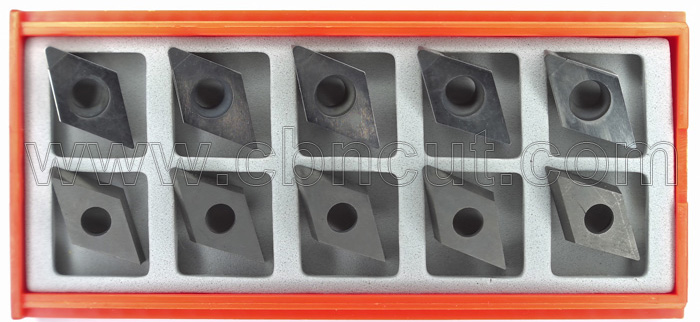

DCGW PCBN Inserts 1 Tip
DCGW CBN inserts used for semi-finish and finish turning cast iron,alloy cast iron and hardened steel materials,the cutting workpiece can be gear,roller,pump parts,auto parts etc.
DCGW11T302 DCGW11T304 DCGW11T308 and other sizes available.
Type and Dimentions:
| ISO | L | IC | s | r |
| DCGW070202 | 7 | 6.35 | 2.38 | 0.2 |
| DCGW070204 | 7 | 6.35 | 2.38 | 0.4 |
| DCGW070208 | 7 | 6.35 | 2.38 | 0.8 |
| DCGW11T302 | 11 | 9.525 | 3.97 | 0.2 |
| DCGW11T304 | 11 | 9.525 | 3.97 | 0.4 |
| DCGW11T308 | 11 | 9.525 | 3.97 | 0.8 |
CBN Grade Availability:
| RCBN-01 | RCBN-02 | RCBN-03 | RCBN-04 | RCBN-05 | RCBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S02020 |
| √ | √ | √ | √ |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
