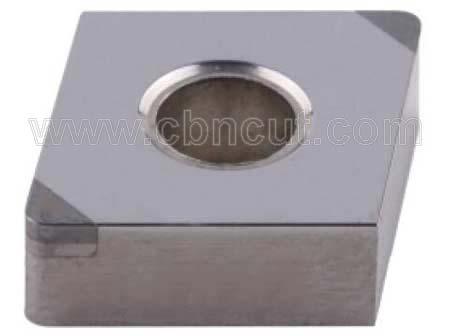

CNGA Finish Turning CBN Insert-2 CBN Tips
Commonly ordered shapes of the CNGA CBN Inserts:
CNGA120404 (CNGA431) CNGA120408 (CNGA432) CNGA120412 (CNGA433) CNGA120416 (CNGA434) etc.
CNMA120404 (CNMA431) CNMA120408 (CNMA432) CNMA120412 (CNMA433) CNMA120416 (CNMA434) etc.
Edge Prep.: T01010 T01015 T01020 S01015 S01020 S02020

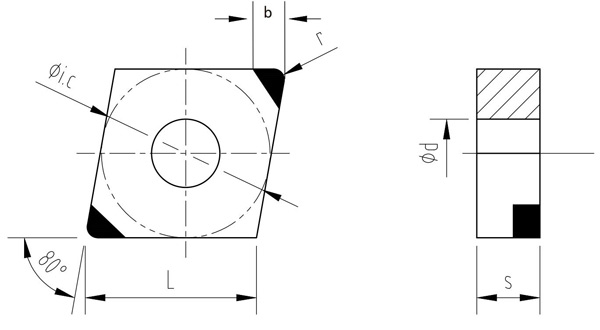

Type and Dimentions:
| ISO | L | IC | s | d | r | b |
| CNGA120402 | 12 | 12.7 | 4.76 | 5.15 | 0.2 | 2.5 |
| CNGA120404 | 12 | 12.7 | 4.76 | 5.15 | 0.4 | 2.5 |
| CNGA120408 | 12 | 12.7 | 4.76 | 5.15 | 0.8 | 2.3 |
| CNGA120412 | 12 | 12.7 | 4.76 | 5.15 | 1.2 | 2.3 |
CBN Grade Availability:
| HBN-01 | HBN-02 | HBN-03 | HBN-04 | HBN-05 | HBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge Treatment:
| T01020 | T02020 | S01020 | S02020 |
| √ | √ | √ | √ |

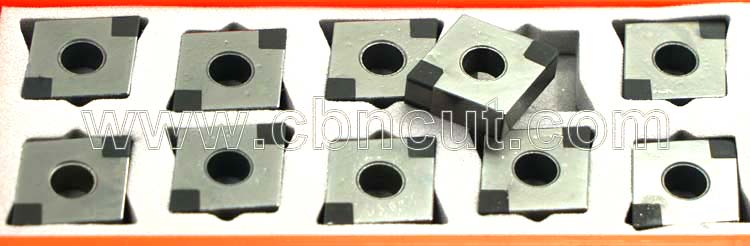

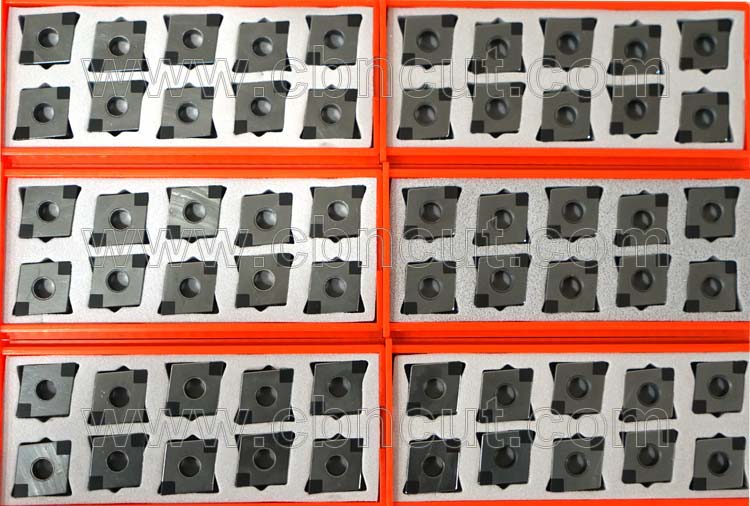

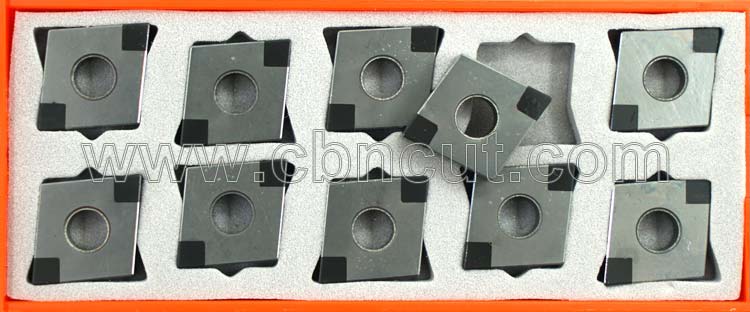

More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
