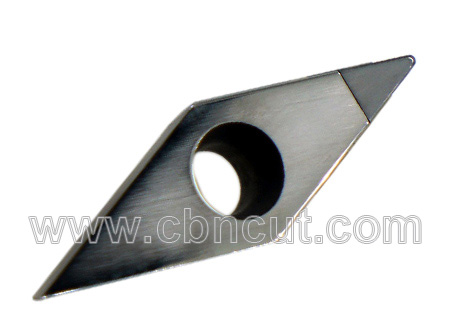

VCGW PCBN Inserts 1 Tip
VCGW CBN inserts used for semi-finish and finish turning cast iron,alloy cast iron and hardened steel materials,the cutting workpiece can be gear,roller,pump parts,auto parts etc.
VCGW110302 VCGW110304 VCGW11T302 VCGW11T304 VCGW11T308 etc
Sizes and Dimentions of VCGW PCBN Inserts:
| ISO | L | IC | s | r |
| VCGW110302 | 11 | 6.35 | 3.18 | 0.2 |
| VCGW110304 | 11 | 6.35 | 3.18 | 0.4 |
| VCGW110308 | 11 | 6.35 | 3.18 | 0.8 |
| VCGW110312 | 11 | 6.35 | 3.18 | 1.2 |
| VCGW11T302 | 11 | 6.35 | 3.97 | 0.2 |
| VCGW11T304 | 11 | 6.35 | 3.97 | 0.4 |
| VCGW11T308 | 11 | 6.35 | 3.97 | 0.8 |
| VCGW11T312 | 11 | 6.35 | 3.97 | 1.2 |
| VCGW160402 | 16 | 9.525 | 4.76 | 0.2 |
| VCGW160404 | 16 | 9.525 | 4.76 | 0.4 |
| VCGW160408 | 16 | 9.525 | 4.76 | 0.8 |
| VCGW160412 | 16 | 9.525 | 4.76 | 1.2 |
CBN Grade Availability:
| HBN01 | HBN-02 | HBN-03 | HBN-04 | HBN-05 | HBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S02020 |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
