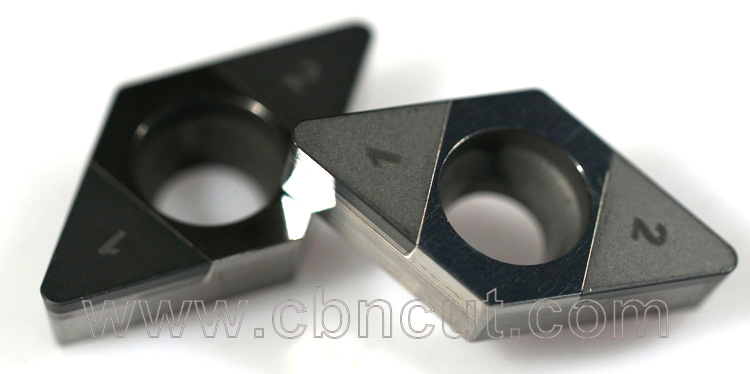

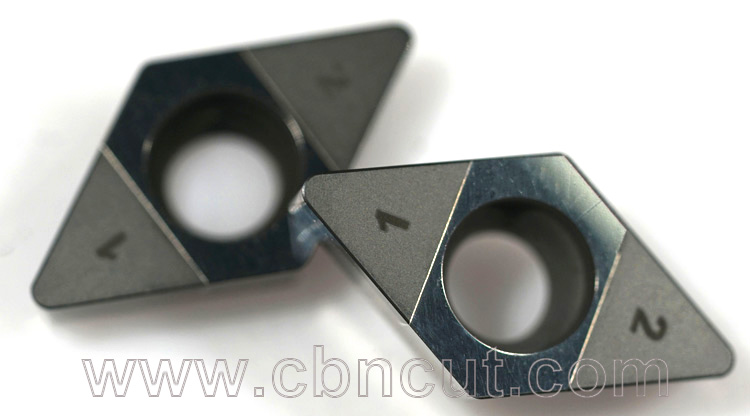

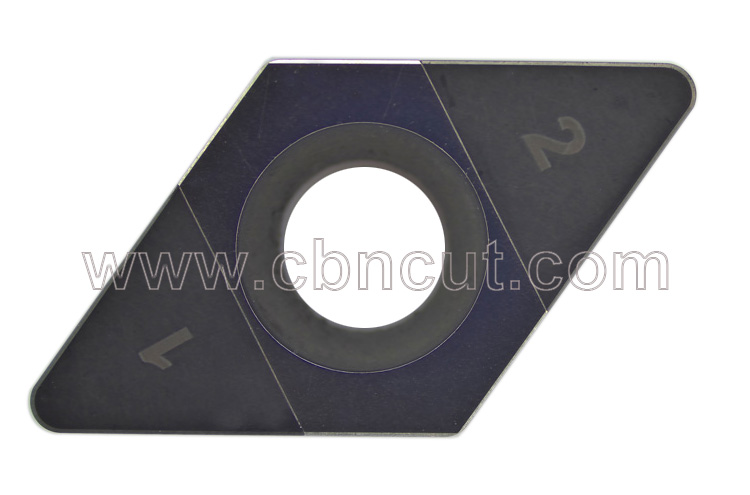

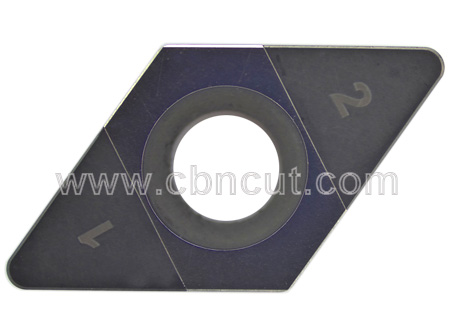

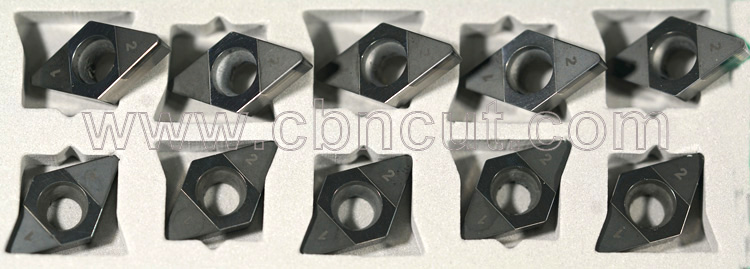

DCGW CBN Inserts
DCGW11T304,DCGW11T308 used for semi-finish and finish turning cast iron,alloy cast iron and hardened steel materials,the cutting workpiece can be gear,roller,pump parts,auto parts etc.
DCGW11T302 DCGW11T304 DCGW11T308 and other sizes available,big CBN cutting edge to ensure bigger cutting depth and removal ratio .
Type and Dimentions:
| ISO | L | IC | s | r |
| DCGW070202 | 7 | 6.35 | 2.38 | 0.2 |
| DCGW070204 | 7 | 6.35 | 2.38 | 0.4 |
| DCGW070208 | 7 | 6.35 | 2.38 | 0.8 |
| DCGW11T302 | 11 | 9.525 | 3.97 | 0.2 |
| DCGW11T304 | 11 | 9.525 | 3.97 | 0.4 |
| DCGW11T308 | 11 | 9.525 | 3.97 | 0.8 |
CBN Grade Availability:
| RCBN-01 | RCBN-02 | RCBN-03 | RCBN-04 | RCBN-05 | RCBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S02020 |
| √ | √ | √ | √ |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
