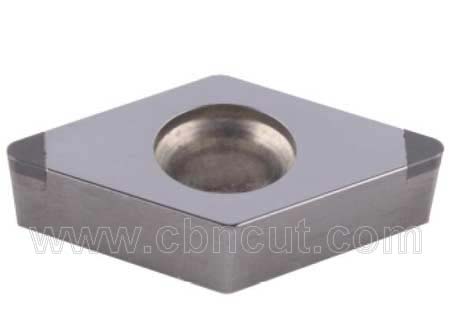

DCGW Finish Turning CBN Insert-2 CBN Tips

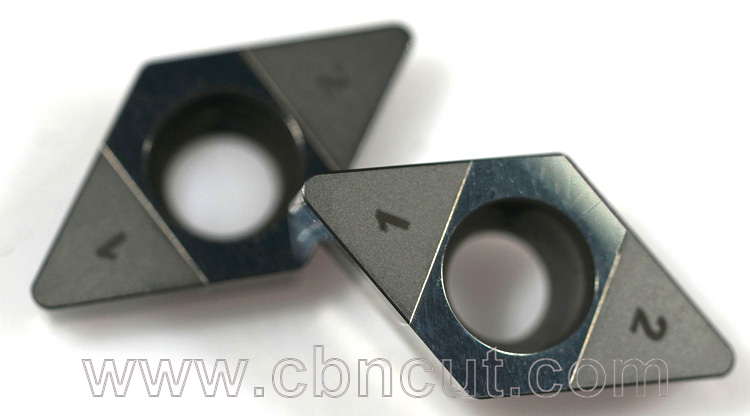

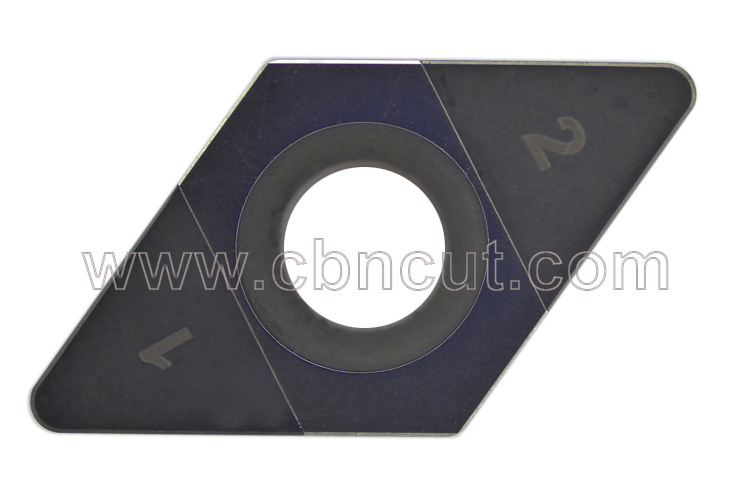

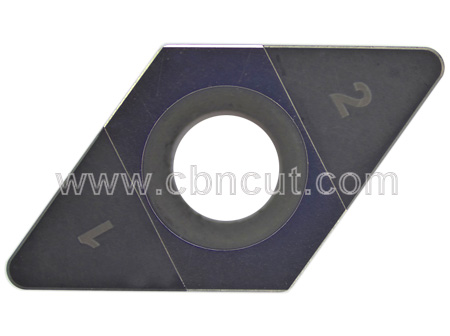

DCGW11T304 DCGW11T308 DCGW11T302 inserts with two edges.

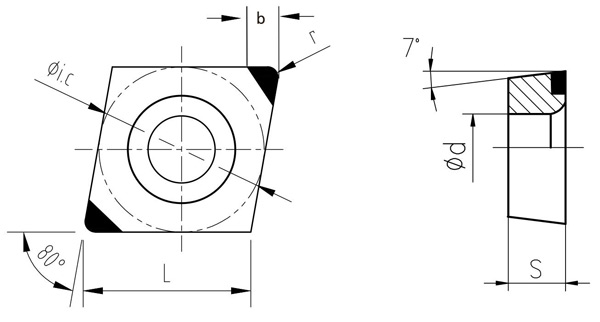

Type and Dimentions:
| ISO | L | IC | s | r |
| DCGW070202 | 7 | 6.35 | 2.38 | 0.2 |
| DCGW070204 | 7 | 6.35 | 2.38 | 0.4 |
| DCGW070208 | 7 | 6.35 | 2.38 | 0.8 |
| DCGW11T302 | 11 | 9.525 | 3.97 | 0.2 |
| DCGW11T304 | 11 | 9.525 | 3.97 | 0.4 |
| DCGW11T308 | 11 | 9.525 | 3.97 | 0.8 |
CBN Grade Availability:
| RCBN-01 | RCBN-02 | RCBN-03 | RCBN-04 | RCBN-05 | RCBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S02020 |
| √ | √ | √ | √ |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
