SNGA CBN inserts used for finish turning hardened steel,bearing steel and other workpiece or cutting conditions that required both cutting efficiency and good surface roughness after machining,we take use imported CBN blank material with fine CBN grain to guarantee the finish surface roughness.Just E-mail us for inquiry : sales@cbncut.com
| Brand: | REALTEC |
| Production: | 12-15 days |
| Application: | For finish turning cast iron,hardened steel,bearing steel workpiece |
| Shipping: | TNT,DHL,Fedex,UPS,etc |
| Keywords: | CBN Insert,Finishing cutting CBN Insert |

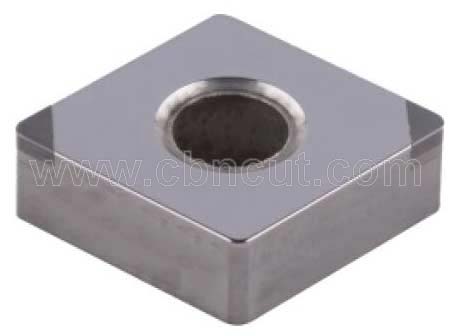

SNGA Finish Turning CBN Insert-2 CBN Tips

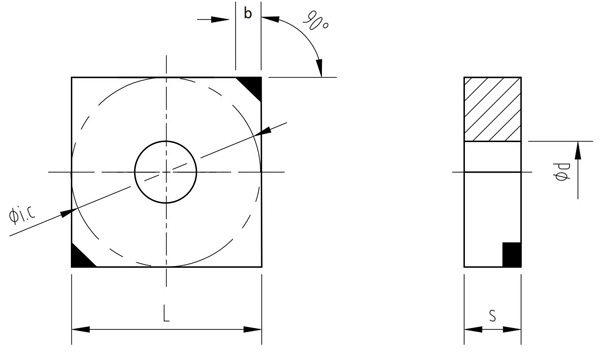

Type and Dimentions:
| ISO | L | IC | s | d | r | b |
| SNGA120402 | 12 | 12.7 | 4.76 | 5.16 | 0.2 | 2.5 |
| SNGA120404 | 12 | 12.7 | 4.76 | 5.16 | 0.4 | 2.5 |
| SNGA120408 | 12 | 12.7 | 4.76 | 5.16 | 0.8 | 2.3 |
| SNGA120412 | 12 | 12.7 | 4.76 | 5.16 | 1.2 | 2.3 |
CBN Grade Availability:
| HBN-01 | HBN-02 | HBN-03 | HBN-04 | HBN-05 | HBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge Treatment:
| T01020 | T02020 | S01020 | S02020 |
| √ | √ | √ | √ |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
