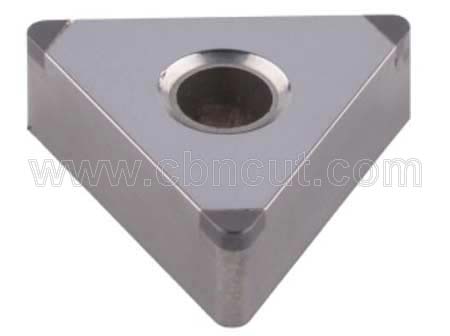

TNGA Finish Turning CBN Insert-3 CBN Tips
TNGA160404 TNGA160408 TNGA160412 TNGA160416
TNMA160404 TNMA160408 TNMA160412 TNMA160416

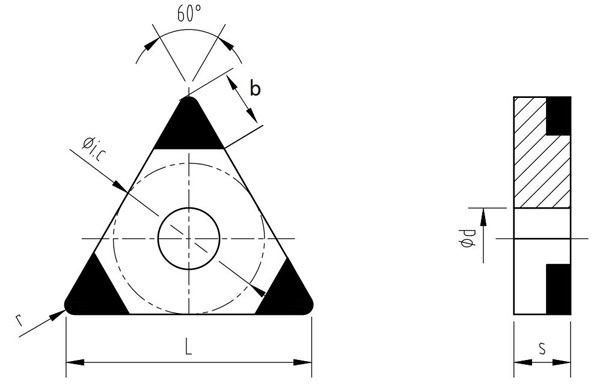

Type and Dimentions:
| ISO | L | IC | s | d | r | b |
| TNGA160402 | 16 | 9.525 | 4.76 | 3.81 | 0.2 | 2.3 |
| TNGA160404 | 16 | 9.525 | 4.76 | 3.81 | 0.4 | 2.3 |
| TNGA160408 | 16 | 9.525 | 4.76 | 3.81 | 0.8 | 2.0 |
| TNGA160412 | 16 | 9.525 | 4.76 | 3.81 | 1.2 | 1.7 |
| TNGA160416 | 16 | 9.525 | 4.76 | 3.81 | 1.6 | 1.5 |
CBN Grade Availability:
| HBN-01 | HBN-02 | HBN-03 | HBN-04 | HBN-05 | HBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge Treatment:
| T01020 | T02020 | S01020 | S02020 |
| √ | √ | √ | √ |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
