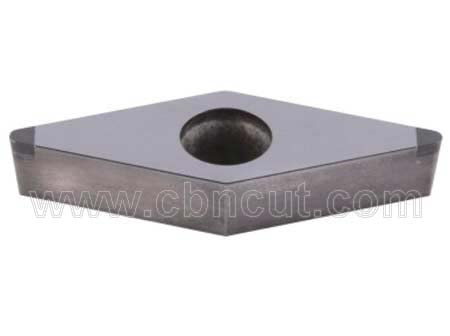

VBGW Finish Turning CBN Insert-2 CBN Tips

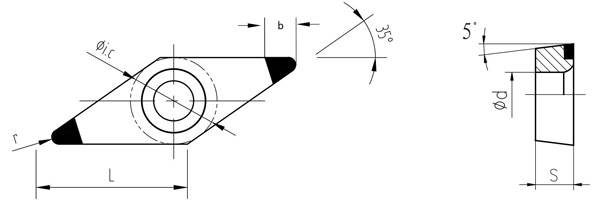

Type and Dimentions:
| ISO | L | IC | s | d | r | b |
| VBGW110302 | 11 | 6.35 | 3.18 | 2.8 | 0.2 | 2.8 |
| VBGW110304 | 11 | 6.35 | 3.18 | 2.8 | 0.4 | 2.8 |
| VBGW110308 | 11 | 6.35 | 3.18 | 2.8 | 0.8 | 2.0 |
| VBGW110312 | 11 | 6.35 | 3.18 | 2.8 | 1.2 | 1.7 |
| VBGW160402 | 16 | 9.525 | 4.76 | 4.4 | 0.2 | 2.8 |
| VBGW160404 | 16 | 9.525 | 4.76 | 4.4 | 0.4 | 2.8 |
| VBGW160408 | 16 | 9.525 | 4.76 | 4.4 | 0.8 | 2.0 |
| VBGW160412 | 16 | 9.525 | 4.76 | 4.4 | 1.2 | 1.7 |
CBN Grade Availability:
| RCBN-01 | RCBN-02 | RCBN-03 | RCBN-04 | RCBN-05 | RCBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S01225 | S02020 |
| √ | √ | √ | √ | √ |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
