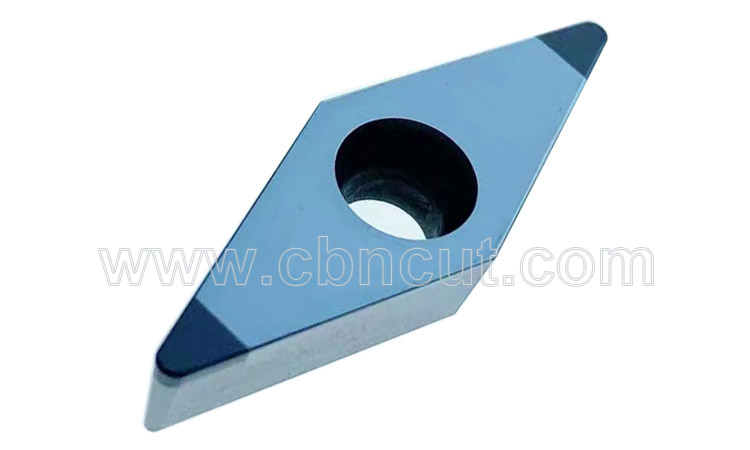

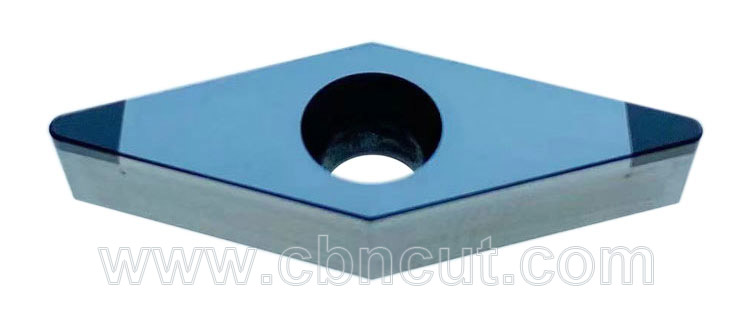

VCGW CBN Insert-2 CBN Tips for finish turning
Sizes and Dimentions of VCGW PCBN Inserts:
| ISO | L | IC | s | r |
| VCGW110302 | 11 | 6.35 | 3.18 | 0.2 |
| VCGW110304 | 11 | 6.35 | 3.18 | 0.4 |
| VCGW110308 | 11 | 6.35 | 3.18 | 0.8 |
| VCGW110312 | 11 | 6.35 | 3.18 | 1.2 |
| VCGW11T302 | 11 | 6.35 | 3.97 | 0.2 |
| VCGW11T304 | 11 | 6.35 | 3.97 | 0.4 |
| VCGW11T308 | 11 | 6.35 | 3.97 | 0.8 |
| VCGW11T312 | 11 | 6.35 | 3.97 | 1.2 |
| VCGW160402 | 16 | 9.525 | 4.76 | 0.2 |
| VCGW160404 | 16 | 9.525 | 4.76 | 0.4 |
| VCGW160408 | 16 | 9.525 | 4.76 | 0.8 |
| VCGW160412 | 16 | 9.525 | 4.76 | 1.2 |
CBN Grade Availability:
| HBN01 | HBN-02 | HBN-03 | HBN-04 | HBN-05 | HBN-06 |
| √ | √ | √ | √ | √ | √ |
Standard CBN Cutting Edge:
| T01020 | T02020 | S01020 | S02020 |
More tipped CBN/PCBN inserts:
Other special type and shapes of CBN and PCBN inserts can be available upon request.
