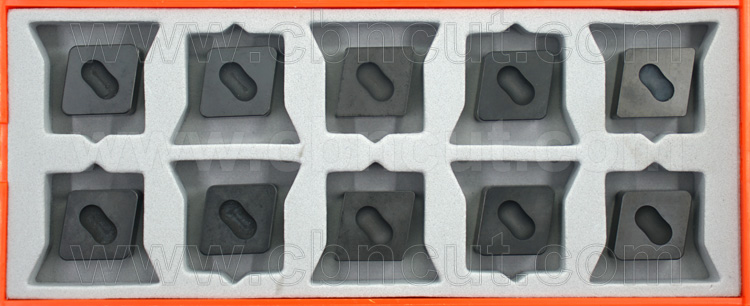

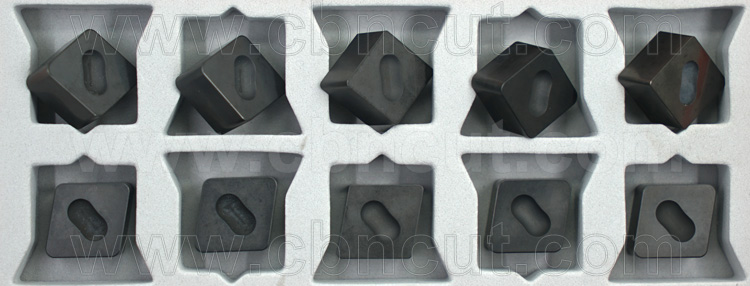

CNGL CNML Dimple Solid CBN Insert
CNGL and CNML dimple solid cbn insert can enhance the clampping strength when fitting on the tool holder.
The dimple CBN inserts can prevent the inserts from moving and dropping off during turning and machining process.
Dimpe size,dimention and shape can be available up on drawing and your request.

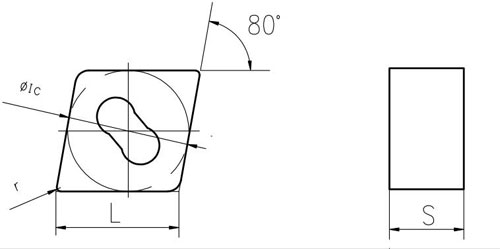

| ISO | L | Φ IC | S | r |
| CNGL 120404 | 12.7 | 12.7 | 4.76 | 0.4 |
| CNGL 120408 | 12.7 | 12.7 | 4.76 | 0.8 |
| CNGL 120412 | 12.7 | 12.7 | 4.76 | 1.2 |
| CNGL 120604 | 12.7 | 12.7 | 6.35 | 0.4 |
| CNGL 120608 | 12.7 | 12.7 | 6.35 | 0.8 |
| CNGL 120612 | 12.7 | 12.7 | 6.35 | 1.2 |
| CNGL 120708 | 12.7 | 12.7 | 7.94 | 0.8 |
| CNGL 120712 | 12.7 | 12.7 | 7.94 | 1.2 |
| CNGL 120804 | 12 | 12.7 | 7.94 | 0.4 |
