RNGS RNMS Solid CBN Inserts

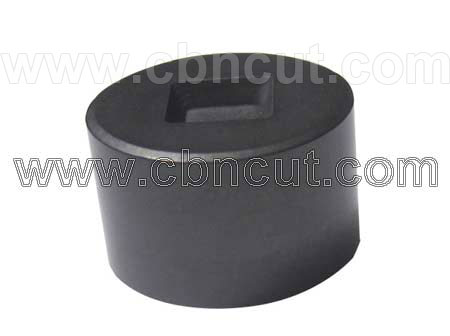

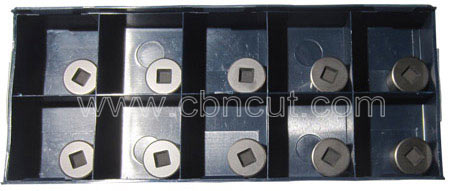

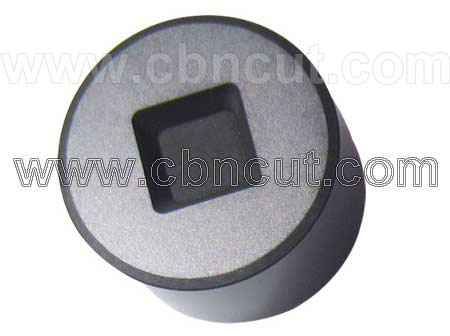

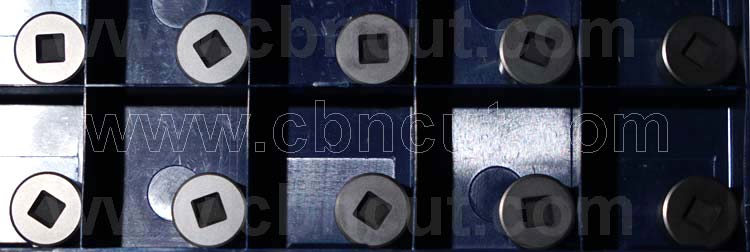

Our RNGS and RNMS dimple solid cbn insert can enhance the clampping strength when fitting on the tool holder,it can prevent insert from moving and dropping off in cutting process,dimpe size and shape can be available up on drawing and your request.
This solid CBN inserts used for roller turning,bearing steel turning and other cast iron,steel workpieces machining.
Commonly used sizes can be RNGN120400 RNGN120700 etc.
| ISO | L | IC | S |
| RNGS 090300 | 9.525 | 9.525 | 3.18 |
| RNGS 090400 | 9.525 | 9.525 | 4.76 |
| RNGS 120400 | 12.7 | 12.7 | 4.76 |
| RNGS 120600 | 12.7 | 12.7 | 6.35 |
| RNGS 120700 | 12.7 | 12.7 | 7.94 |
| RNGS 150700 | 15.875 | 15.875 | 7.94 |
| RNGS 160700 | 16 | 16 | 7.94 |
| RNGS 190700 | 19.05 | 19.05 | 7.94 |
| RNGS 200700 | 20 | 20 | 7.94 |
| RNGS 201000 | 20 | 20 | 10.0 |
| RNGS 250600 | 25.4 | 25.4 | 7.94 |
| RNGS 250700 | 25.4 | 25.4 | 7.94 |
| RNGS 251000 | 25.4 | 25.4 | 10.0 |
| RNGS 251200 | 25.4 | 25.4 | 12.0 |
