Solid CBN Inserts With Dimple DNGO 1504,1506 etc

DNGO Solid CBN Insert

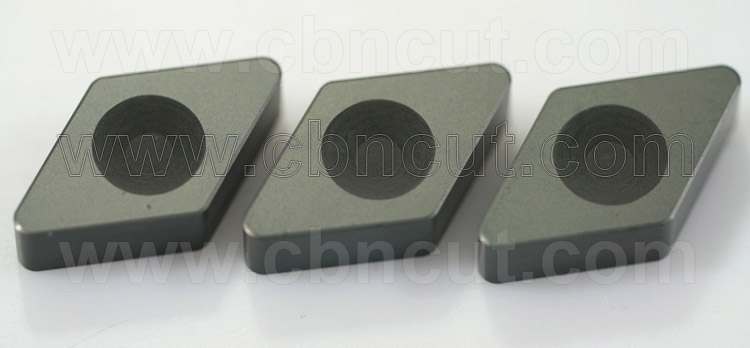

DNGO dimple solid cbn insert also called DNGO notch cbn insert or DNGO CBN insert with mould,the mould can enhance the clamping strength when fitting on the tool holder,it can prevent insert from moving and dropping off in cutting process,it is suitable for heavy tunring.

DNGO120404 DNGO120408 DNGO120412 DNGO150408 DNGO150412 DNGO150416 DNGO150608 DNGO150612

DNGO Dimple Solid CBN Insert

DNGO mould dimple cbn insert

DNGO PCBN Insert

Dimple Solid CBN Insert

ISO	Inch	Φ IC	S	r
DNGO 110404	331	9.525	4.76	0.4
DNGO 110408	332	9.525	4.76	0.8
DNGO 110412	333	9.525	4.76	1.2
DNGO 110604	341	9.525	6.35	0.4
DNGO 110608	342	9.525	6.35	0.8
DNGO 110612	343	9.25	6.35	1.2
DNGO 150404	431	12.70	4.76	0.4
DNGO 150408	432	12.70	4.76	0.8
DNGO 150412	433	12.70	4.76	1.2
DNGO 150604	441	12.70	6.35	0.4
DNGO 150608	442	12.70	6.35	0.8
DNGO 150612	443	12.70	6.35	1.2

Other Solid CBN Inserts you may interest:

RNGN Solid CBN Insert	CNGN Solid CBN Insert
SNGN Solid CBN Insert	TNGN Solid CBN Insert
TPGN Solid CBN Insert	SCGN Solid CBN Insert
RCGX-V Solid CBN Insert	WNGN Solid CBN Insert
RCGX Chip Breaker Insert	RCGX-Y Solid CBN Insert
DNGN Solid CBN Insert	DCGN Solid CBN Insert
RCGN Solid CBN Insert	RPGN Solid CBN Insert
DNGN Solid CBN Insert	CBN Grooving Insert
Falt Nose Grooving CBN Insert-12mm	Flat Nose Grooving CBN Insert-14mm
HNGN Solid CBN Insert	HDGN Solid CBN Insert
Full Nose CBN Grooving Insert	CNGA Solid CBN Insert
SNGA Solid CBN Insert	DNGA Solid CBN Insert
TNGA Solid CBN Insert	WNGA Solid CBN Insert
RNGN060300 CBN Insert	RNGN060400 CBN Insert
RNGN120300 CBN Insert	RNGN151000 CBN Insert
RNGN150700 CBN Insert	RNGN190700 CBN Insert
RNGN120400 CBN Insert	RNGN120700 CBN Insert
RNGN090300 CBN Insert	RNGN090400 CBN Insert
RNGN251000 CBN Insert	RNGN251200 CBN Insert

Related Dimple Solid CBN Inserts:

CNGO CNMO Dimple Solid CBN Insert	DNGO DNMO Dimple Solid CBN Insert
WNGO WNMO Dimple Solid CBN Insert	RNGO RNMO Dimple Solid CBN Insert
SNGO SNMO Dimple Solid CBN Insert	TNGO TNMO Dimple Solid CBN Insert
CNGL CNML Dimple Solid CBN Insert	RNGS RNMS Dimple Solid CBN Insert
CNGX-I CNMX Dimple Solid CBN Insert	CNGX CNMX-Cross Dimple Solid CBN Insert
RCGS RCMS Dimple Solid CBN Insert	DNGL DNML Dimple Solid CBN Insert

Brand:	REALTEC
Production:	15-18 days
Application:	Cast Iron Roller turning,Automotive Brake Drum,Hardened Steel turning
Shipping:	TNT,DHL,Fedex,UPS,etc
Keywords:	DNGO cbn insert,DNGO dimple cbn insert,DNMO solid CBN insert

Brand:	REALTEC
Production:	15-18 days
Application:	Cast Iron Roller turning,Automotive Brake Drum,Hardened Steel turning
Shipping:	TNT,DHL,Fedex,UPS,etc
Keywords:	DNGO cbn insert,DNGO dimple cbn insert,DNMO solid CBN insert
