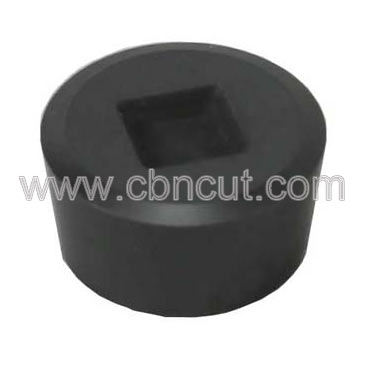

RCGS RCMS Solid CBN Inserts
RCGS and RCMS dimple solid cbn insert can enhance the clampping strength when fitting on the tool holder,it can prevent insert from moving and dropping off in cutting process,dimpe size and shape can be available up on drawing and your request.

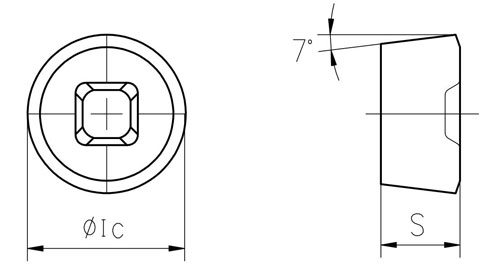

| ISO | L | IC | S |
| RCGS 120400 | 12.7 | 12.7 | 4.76 |
| RCGS 120600 | 12.7 | 12.7 | 6.35 |
| RCGS 120700 | 12.7 | 12.7 | 7.94 |
| RCGS 150700 | 15.875 | 15.875 | 7.94 |
| RCGS 160700 | 16.0 | 16.0 | 7.94 |
| RCGS 190700 | 19.05 | 19.05 | 7.94 |
| RCGS 200700 | 20.0 | 20.0 | 7.94 |
| RCGS 201000 | 20.0 | 20.0 | 10.0 |
| RCGS 250600 | 25.4 | 25.4 | 7.94 |
| RCGS 250700 | 25.4 | 25.4 | 7.94 |
| RCGS 251000 | 25.4 | 25.4 | 10.0 |
| RCGS 251200 | 25.4 | 25.4 | 12.0 |
