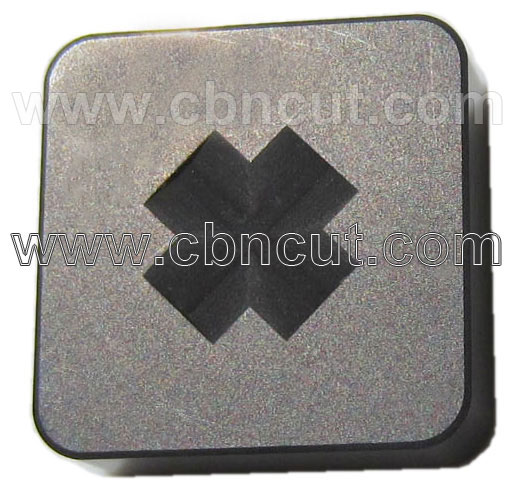

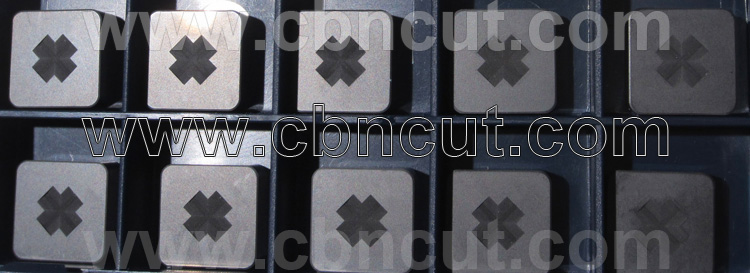

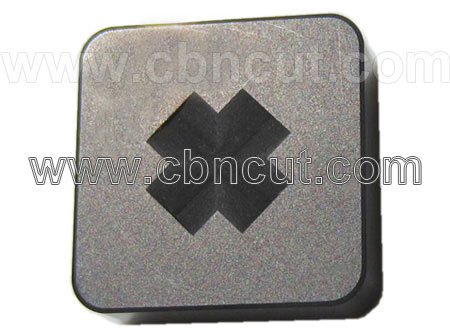

CNGX CNMX-Cross Solid CBN Insert
CNGX and CNMX solid cbn insert can enhance the clampping strength when fitting on the tool holder,it can prevent insert from moving and dropping off in cutting process,dimpe size and shape can be available up on drawing and your request.
Our CNGX and CNMX solid CBN inserts used for cast iron and steel workpiece turning with very good result.
CNGX Dimple Solid CBN Inserts Availability
| ISO | L | Φ IC | S | r |
| CNGX 120404 | 12.7 | 12.7 | 4.76 | 0.4 |
| CNGX 120408 | 12.7 | 12.7 | 4.76 | 0.8 |
| CNGX 120412 | 12.7 | 12.7 | 4.76 | 1.2 |
| CNGX 120604 | 12.7 | 12.7 | 6.35 | 0.4 |
| CNGX 120608 | 12.7 | 12.7 | 6.35 | 0.8 |
| CNGX 120612 | 12.7 | 12.7 | 6.35 | 1.2 |
| CNGX 120708 | 12.7 | 12.7 | 7.94 | 0.8 |
| CNGX 120712 | 12.7 | 12.7 | 7.94 | 1.2 |
| CNGX 120716 | 12.7 | 12.7 | 7.94 | 1.2 |
| CNGX 120804 | 12 | 12.7 | 7.94 | 0.4 |
| CNGX 120806 | 12 | 12.7 | 7.94 | 0.4 |
