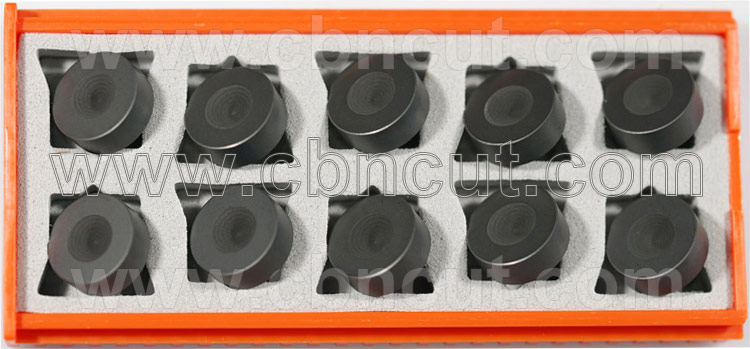

RNGO Solid CBN Insert
RNGO notch solid cbn insert can enhance the clampping strength when fitting on the tool holder,it can prevent insert from moving and dropping off during cutting process,dimpe size and shape can be available up on drawing and your request.
They used in heavy and interrupted cutting,turning high chromium high nickel cast iron and alloy,the workpiece been cut can be roller,pump parts etc.
RNGO120400 RNGO120700 RNGO090400 RNGO150700 RNGO190400 RNGO190700 RNGO201000
RNMO120400 RNMO120700 RNMO090400 RNMO150700 RNMO190400 RNMO190700 RNMO201000

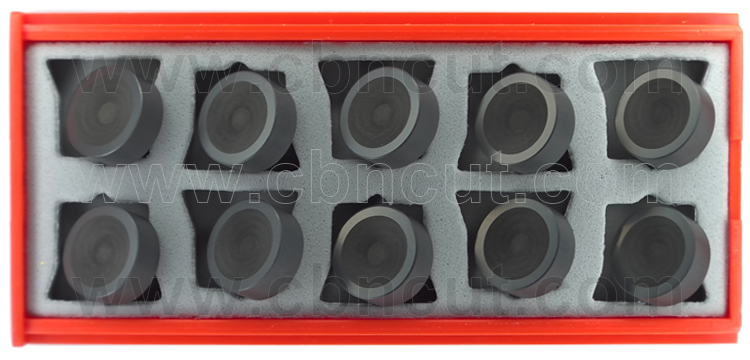

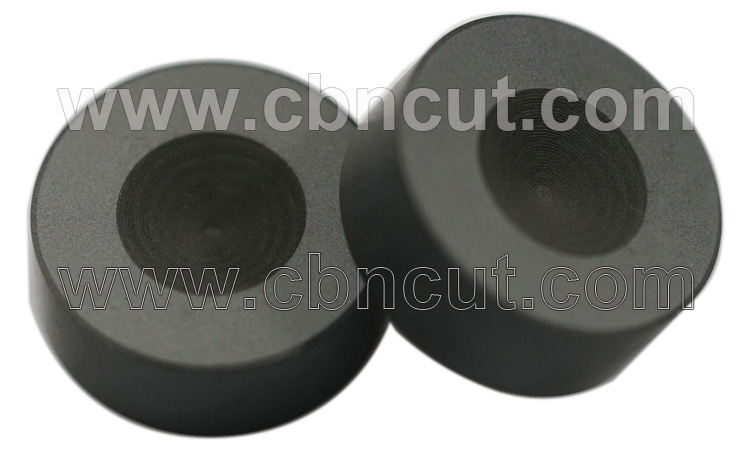

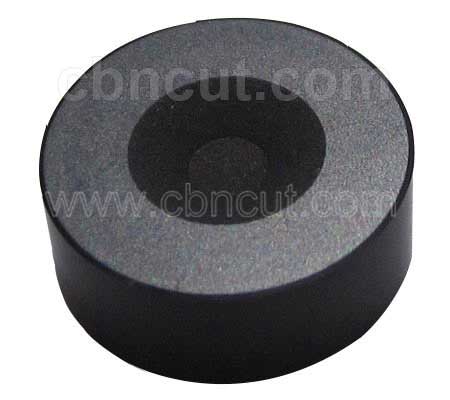

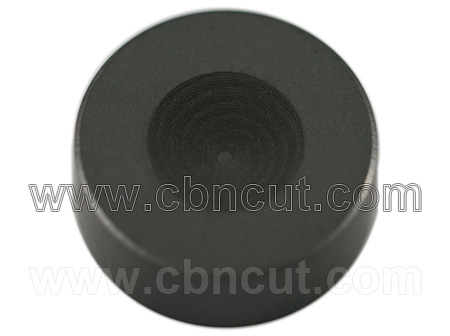

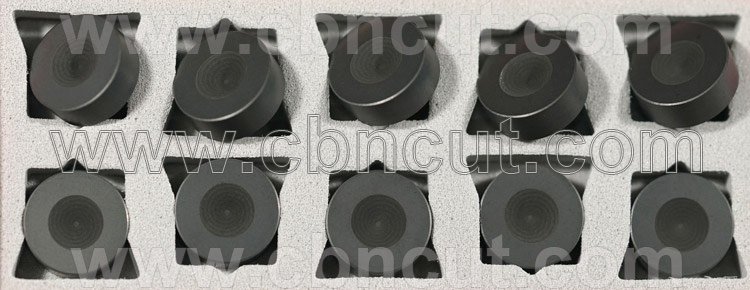

RNGO Dimple Solid CBN Inserts
| ISO | L | IC | S |
| RNGO120400 | 12.7 | 12.7 | 4.76 |
| RNGO120600 | 12.7 | 12.7 | 6.35 |

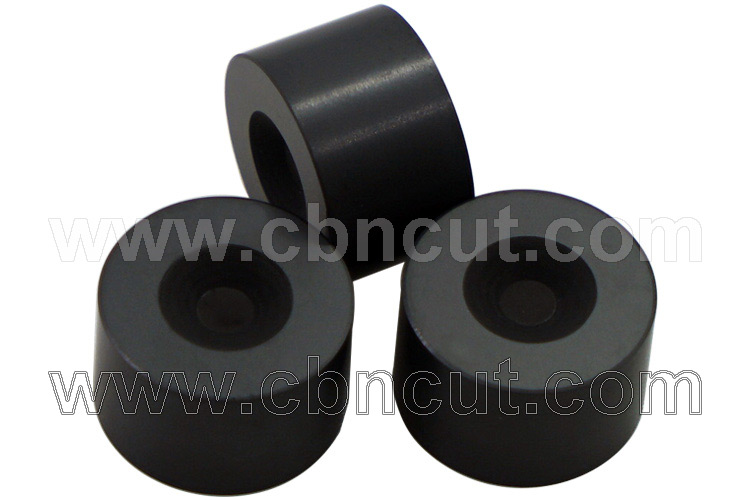

| RNGO120700 | 12.7 | 12.7 | 7.94 |
| RNGO150700 | 15.875 | 15.875 | 7.94 |
| RNGO160700 | 16.0 | 16.0 | 7.94 |
| RNGO190400 | 19.05 | 19.05 | 4.76 |
| RNGO190700 | 19.05 | 19.05 | 7.94 |
| RNGO200700 | 20.0 | 20.0 | 7.94 |
| RNGO200800 | 20.0 | 20.0 | 8.00 |
| RNGO201000 | 20.0 | 20.0 | 10.00 |
| RNGO250600 | 25.4 | 25.4 | 6.35 |
| RNGO250700 | 25.4 | 25.4 | 7.94 |
| RNGO250800 | 25.4 | 25.4 | 8.00 |
| RNGO251000 | 25.4 | 25.4 | 10.00 |
| RNGO251200 | 25.4 | 25.4 | 12.00 |
