Solid CBN Inserts With Dimple SNGO,120408,120412,120416,1207XX etc

SNGO Solid CBN Insert

Our SNGO dimple solid cbn insert can enhance the clampping strength when fitting on the tool holder,it can prevent insert from moving and dropping off in the cutting process,the dimpe dimention and shape can be available up on drawing and your request.

Dimple solid CBN inserts used for cutting turning rollers,automotive brake disk,brake drum and other applications.

SNGO120408 SNGO120412 SNGO120416 SNGO120708 SNGO120712 SNGO120716 SNGO1507 SNGO2010 SNGO2512

SNMO120408 SNMO120412 SNMO120416 SNMO120708 SNMO120712 SNMO120716 SNMO1507 SNMO2010 SNMO2512

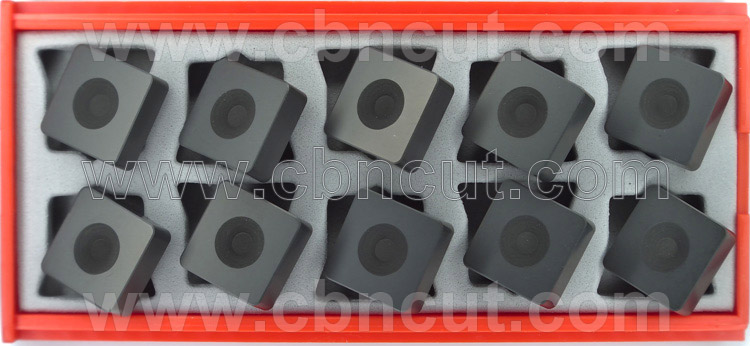

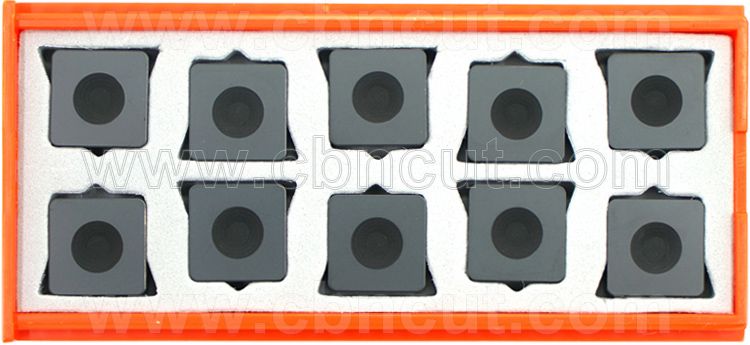

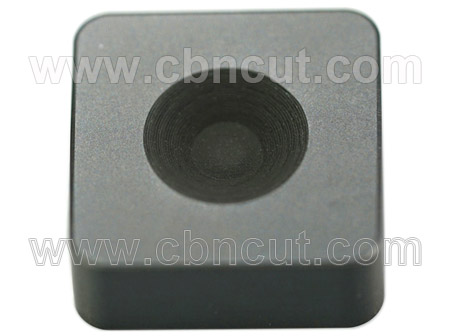

SNGO SNGX solid CBN Insert

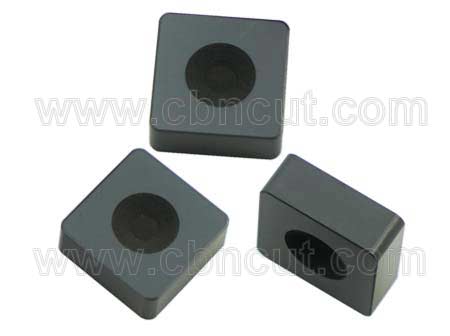

SNGO Solid CBN Insert

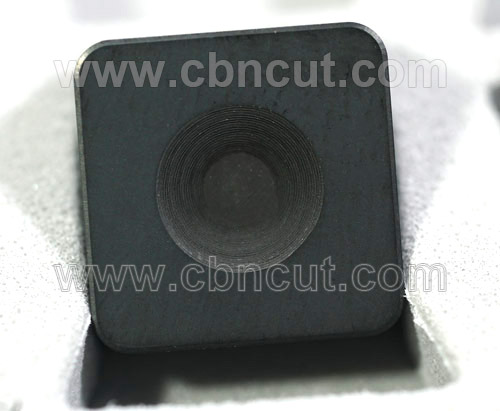

SNGN Dimple Solid CBN Insert

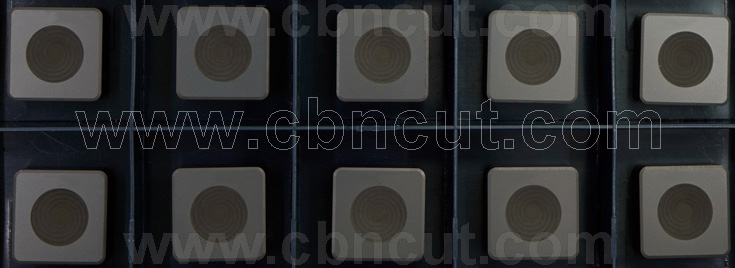

Solid CBN Insert

ISO	Inch	L	S	r
SNGO 090304	321	9.525	3.18	0.4
SNGO 090306	321.5	9.525	3.18	0.6
SNGO 090308	322	9.525	3.18	0.8
SNGO 090312	323	9.525	3.18	1.2
SNGO 090404	341	9.525	4.76	0.4
SNGO 090408	342	9.525	4.76	0.8
SNGO 090412	323	9.525	4.76	1.2
SNGO 120404	431	12.7	4.76	0.4
SNGO 120408	432	12.7	4.76	0.8
SNGO 120412	433	12.7	4.76	1.2
SNGO 120416	434	12.7	4.76	1.6
SNGO 120712	453	12.7	7.94	1.2
SNGO 150608	542	15.875	7.94	0.8
SNGO 150612	543	15.875	7.94	1.2
SNGO 150616	544	15.875	7.94	1.6
SNGO 150712	553	15.875	7.94	0.4
SNGO 201020		20	10	2.0
SNGO 201024		20	10	2.4
