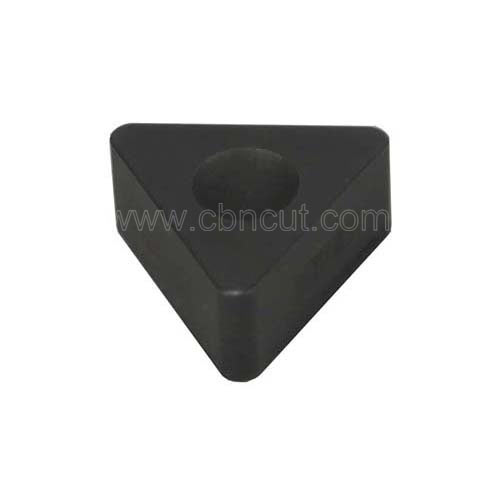

TNGO TNMO Solid CBN Insert
Our TNGO and TNMO dimple solid cbn inserts / dimple PCBN solid cbn inserts can enhance the clampping strength when fitting on the tool holder,the dimple can prevent cbn insert from moving and dropping off during cutting process,dimpe size and dimention can be available up on drawing and your request.

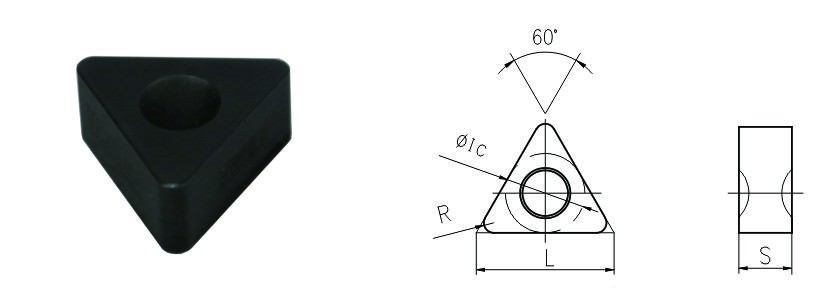

| ISO | L | Φ IC | S | r |
| TNGO 110304 | 11 | 6.35 | 3.18 | 0.4 |
| TNGO 110306 | 11 | 6.35 | 3.18 | 0.6 |
| TNGO 110312 | 11 | 6.35 | 3.18 | 1.2 |
| TNGO 160404 | 16.5 | 9.525 | 4.76 | 0.4 |
| TNGO 160406 | 16.5 | 9.525 | 4.76 | 0.8 |
| TNGO 160412 | 16.5 | 9.525 | 4.76 | 1.2 |
