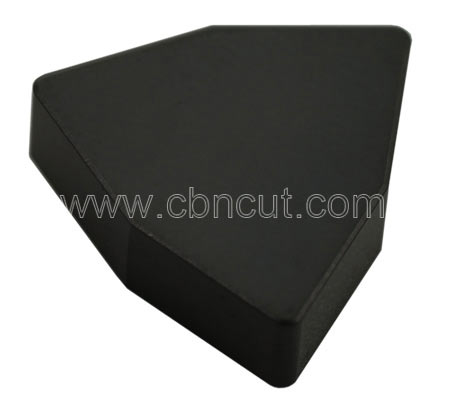

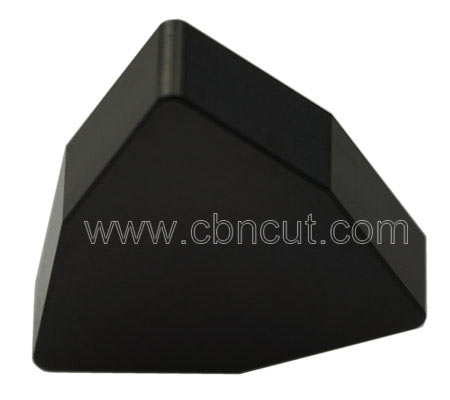

WNGN WNMN Solid CBN Insert
WNGN and WNMN solid CBN inserts suitbale for turning and machining cast iron,alloy and hardened steel workpieces.
WNGN060404 WNGN060408 WNGN080404 WNGN080408 WNGN080412 WNGN080416 WNGN080604 WNGN080608 WNGN080612
WNMN060404 WNMN060408 WNMN080404 WNMN080408 WNMN080412 WNMN080416 WNMN080604 WNMN080608 WNMN080612
CBN edge preparation: T01010 S01220 S01225 S02020 S05020 etc.

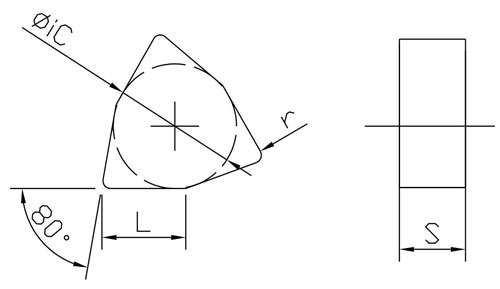

ISO | Inch | L | Φ IC | S | r |
WNGN060404 | 331 | 6.6 | 9.525 | 4.76 | 0.4 |
WNGN060408 | 332 | 6.6 | 9.525 | 4.76 | 0.8 |
WNGN080412 | 431 | 8.72 | 12.7 | 4.76 | 0.4 |
WNGN080408 | 432 | 8.72 | 12.7 | 4.76 | 0.8 |
WNGN080412 | 433 | 8.72 | 12.7 | 4.76 | 1.2 |
WNGN080416 | 434 | 8.72 | 12.7 | 4.76 | 1.6 |
