Solid CBN Inserts,SNGN1204,SNMN0903,SNMN0904,SNMN1204,SNGN1207,SNGN190720,SNGN2010 PCBN Inserts

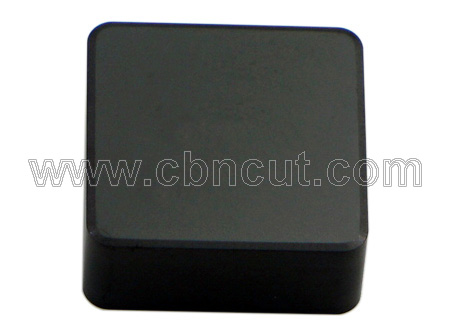

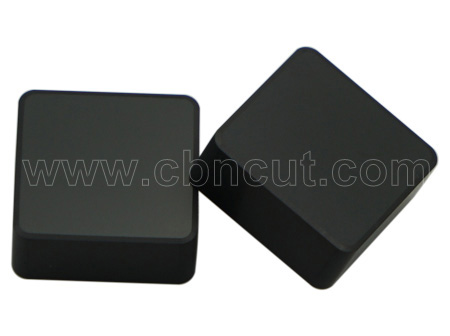

SNGN Solid CBN Insert SNMN Solid CBN Insert

SNGN SNMN solid CBN inserts mostly used for turning and milling applications,suitable for cast iron,alloy and hardened steel,bearing steel workpieces turning and milling,for rough and semi-finish and finish cutting,we have different CBN grades to fit for the cutting job.

SNGN120408 SNGN120412 SNGN120416 SNGN090304 SNGN090308 SNGN090312 SNGN090316 SNGN090408 SNGN090412 SNGN090416 SNGN120612 SNGN120616 SNGN120712 SNGN150612 SNGN150616 SNGN150712 SNGN150816 SNGN2007 SNGN2008 SNGN2010 SNGN2510 SNGN2512

SNMN120408 SNMN120412 SNMN120416 SNMN090304 SNMN090408 SNMN090312 SNMN090316 SNMN090408 SNMN090412 SNMN090416 SNMN120612 SNMN120616 SNMN120712 SNMN150612 SNMN150616 SNMN150712 SNMN150816 SNMN2007 SNMN2008 SNMN2010 SNMN2510 SNMN2512

CBN edge radius/ CBN Nose Radius can be 0.8mm,1.2mm,1.6mm and 2.0mm

CBN edge preparation can be T01010 S01020 S02020 S05020 S07015 S10015 S10020 S20010 S20015 etc.

Double chamfer also available.

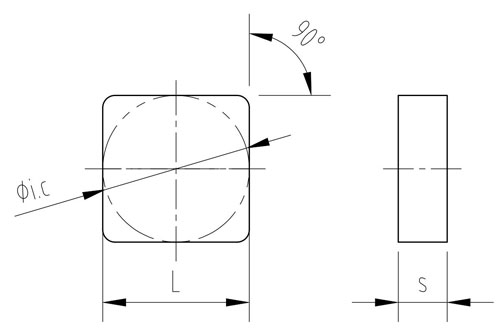

ISO	Inch	L	S	r
SNGN 090304	321	9.525	3.18	0.4
SNGN 090306	321.5	9.525	3.18	0.6
SNGN 090308	322	9.525	3.18	0.8
SNGN 090312	323	9.525	3.18	1.2
SNGN 090316	324	9.525	3.18	1.6
SNGN 090404	331	9.525	4.76	0.4
SNGN 090408	332	9.525	4.76	0.8
SNGN 090412	333	9.525	4.76	1.2
SNGN 090416	334	9.525	4.76	1.6
SNGN 120404	431	12.7	4.76	0.4
SNGN 120408	432	12.7	4.76	0.8
SNGN 120412	433	12.7	4.76	1.2
SNGN 120416	434	12.7	4.76	1.6
SNGN 120706	451.5	12.7	7.94	0.6
SNGN 120708	452	12.7	7.94	0.8
SNGN 120712	453	12.7	7.94	1.2
SNGN 120716	454	12.7	7.94	1.6
SNGN 150608	542	15.875	6.35	0.8
SNGN 150612	543	15.875	6.35	1.2
SNGN 150616	544	15.875	6.35	1.6
SNGN 150712	553	15.875	7.94	1.2
SNGN 150716	554	15.875	7.94	1.6
SNGN 201020		20	10	2.0
SNGN 201024		20	10	2.4
