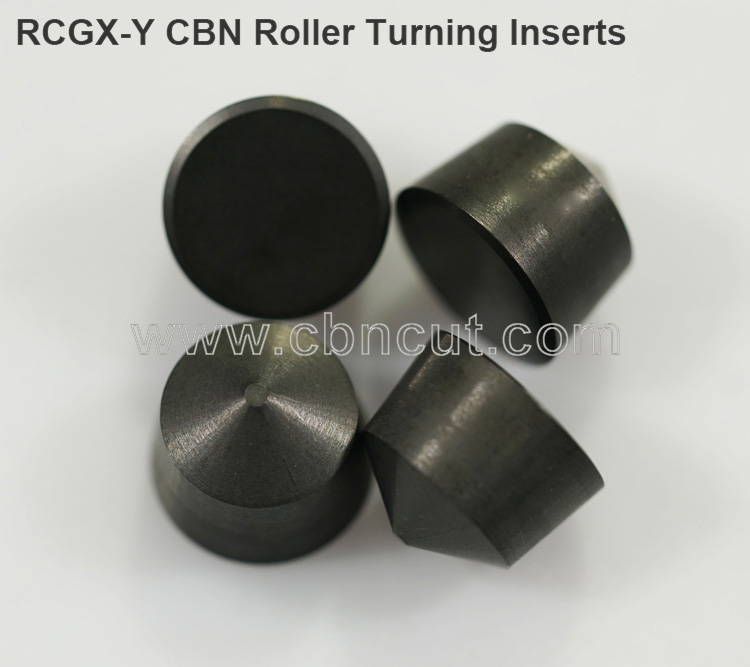

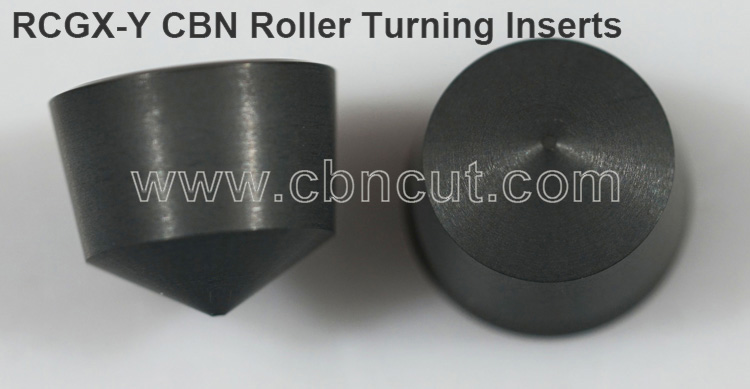

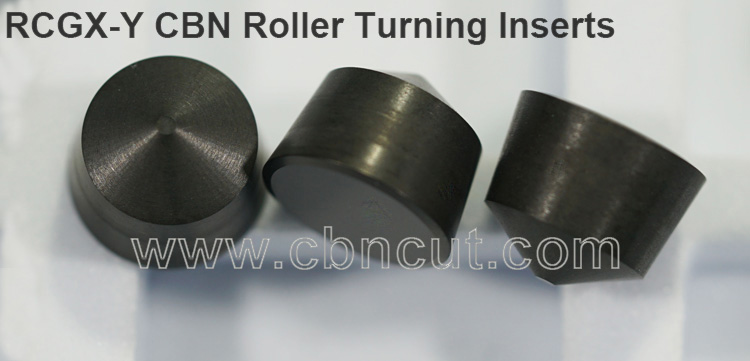

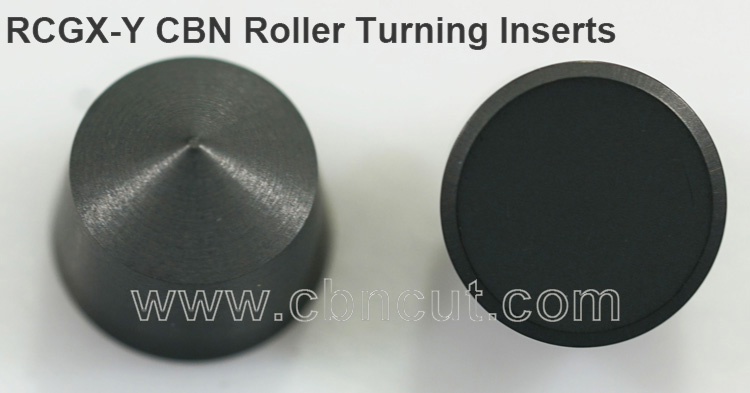

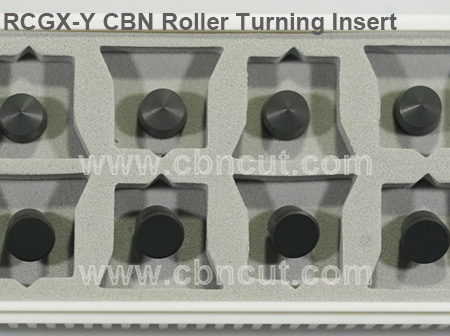

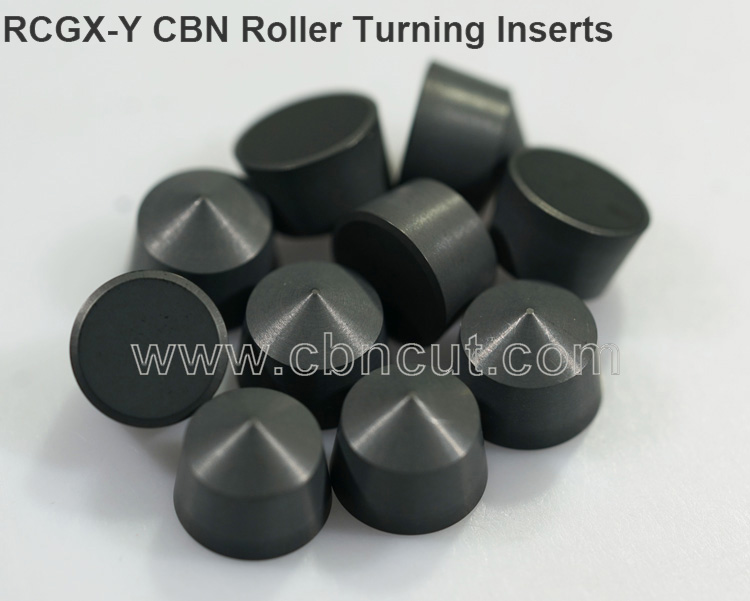

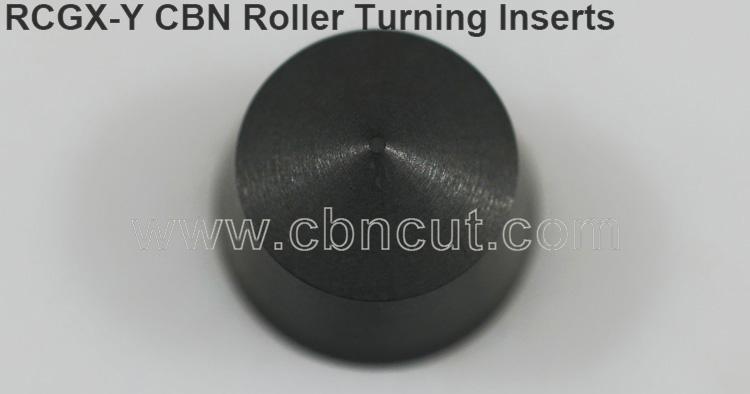

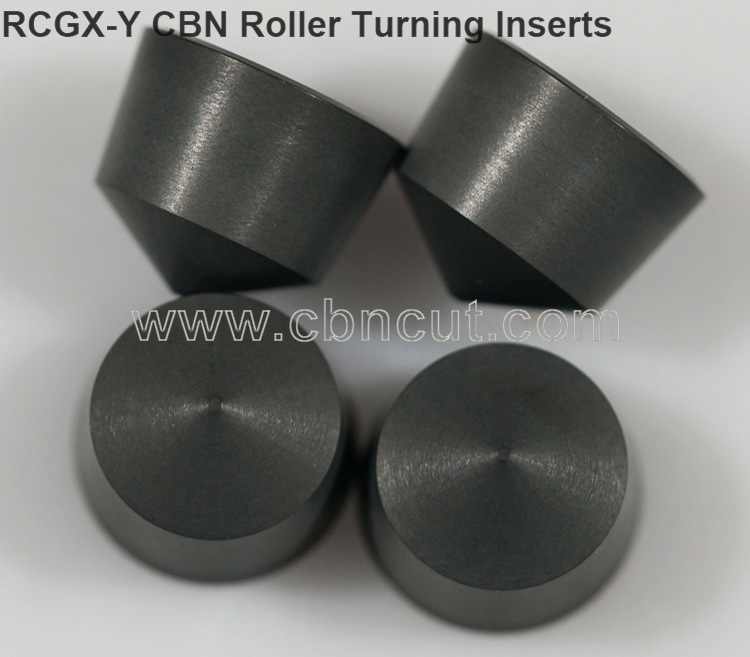

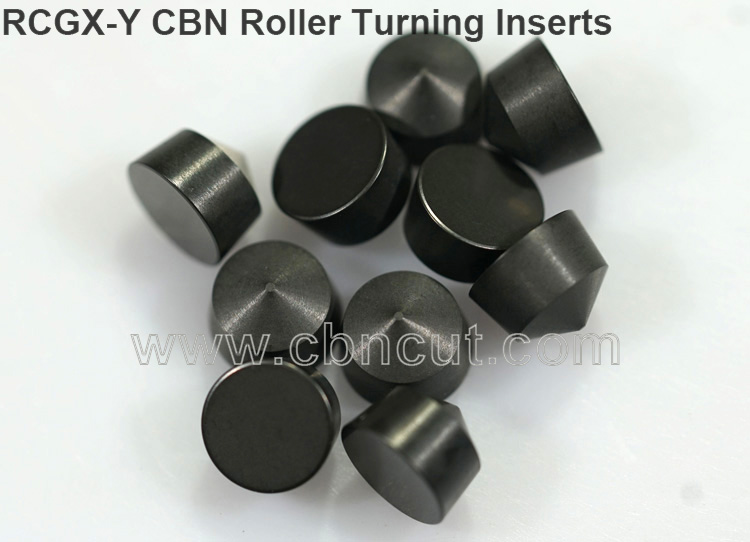

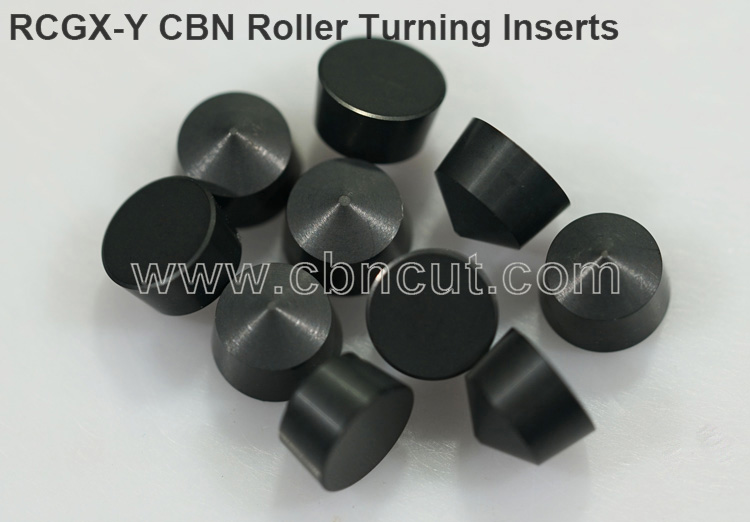

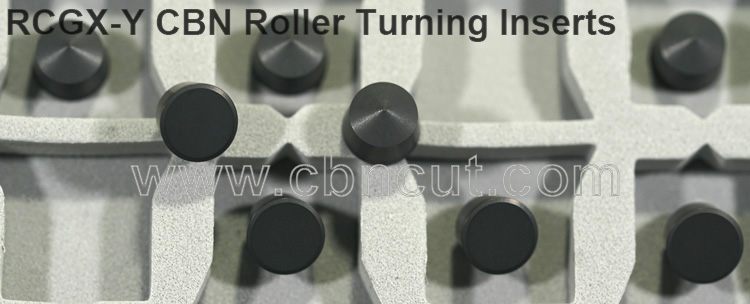

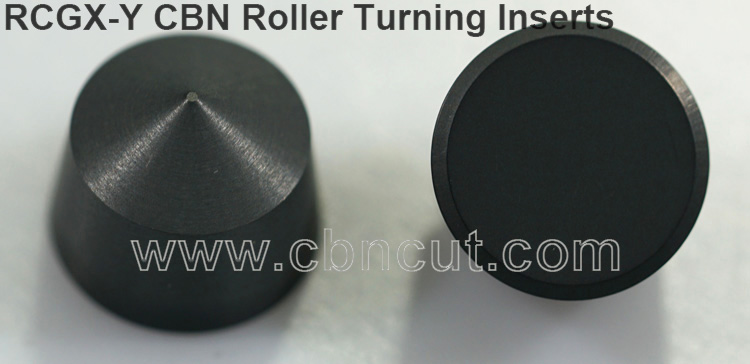

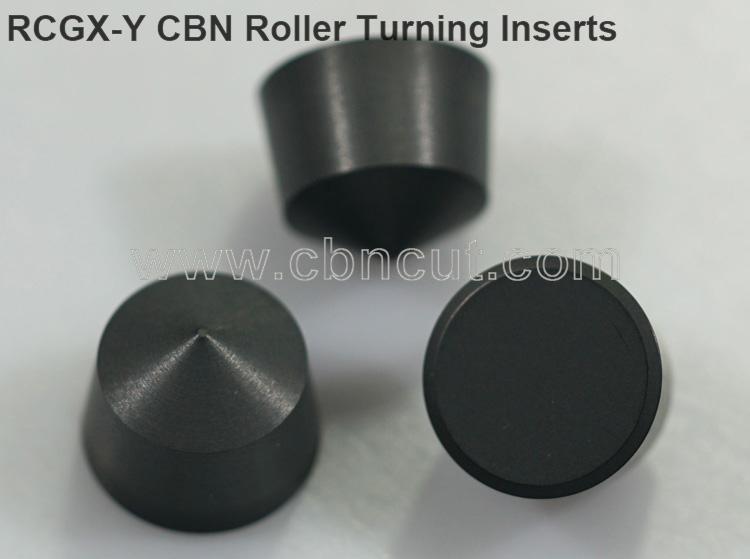

RCGX-Y RCMX-Y Solid CBN Insert,CBN Roller Turning Insert
RCGX and RCMX solid CBN inserts,PCBN inserts used for roller slot turning and machinng,like cast iron roller turning,carbide roller turning,alloy steel roller turning,hardened steel roller turning and bearing steel rings turning applications.
RCGX RCMX solid CBN inserts also used for other cast iron and steel workpieces for both rough and finish turning applications.
The following RCGX or MCMX CBN PCBN Inserts available and also can do Custom Made according to request.
RCGX060500 RCGX060600 RCGX090700 RCGX120700 RCGX150700 RCGX151000 RCGX201000 RCGX251200
RCMX060500 RCMX060600 RCMX090700 RCMX120700 RCMX150700 RCMX151000 RCMX201000 RCMX251200
Our RCMX and RCGX CBN insert edge preparation can be S01020 S02020 S05020 S10020 S10015 S20010 S20015 among them the S05020 and S10020 use mostly since generally the RCGX or RCGX solid CBN inserts use bigger chamfer for roller slot turning the chamfer width of 0.5mm and 1.0mm most commonly used.
We also supply RCGX-V CBN inserts for high chrome and high nickel cast iron roller cutting,HSS roller cutting,steel roller turning.

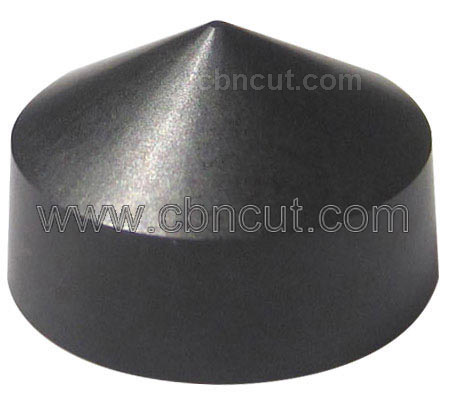

RCGX and RCMX Solid CBN Insert
RCGX090700 RCGX120700 RCGX150700 RCGX201000 solid cbn turning inserts

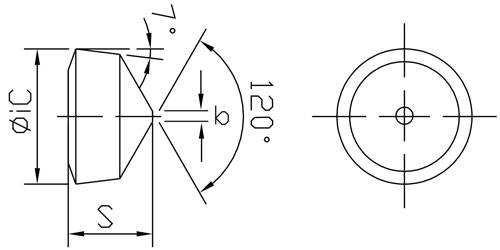

| ISO | IC | S | b |
| RCGX060400 | 6.35 | 4.76 | 0.8 |
| RCGX060600 | 6.35 | 6.35 | 0.8 |
| RCGX090700 | 9.525 | 7.94 | 1 |
| RCGX120700 | 12.7 | 7.94 | 2 |
| RCGX151000 | 15.875 | 10.0 | 2 |
| RCGX191000 | 19.05 | 10.0 | 2 |
| RCGX201200 | 20.0 | 12.0 | 2 |
| RCGX251200 | 25.4 | 12.0 | 2 |
