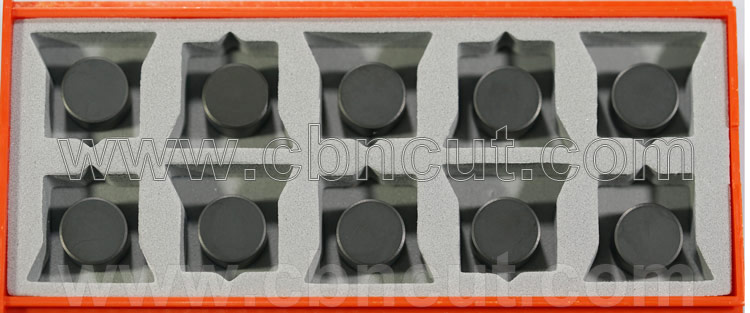

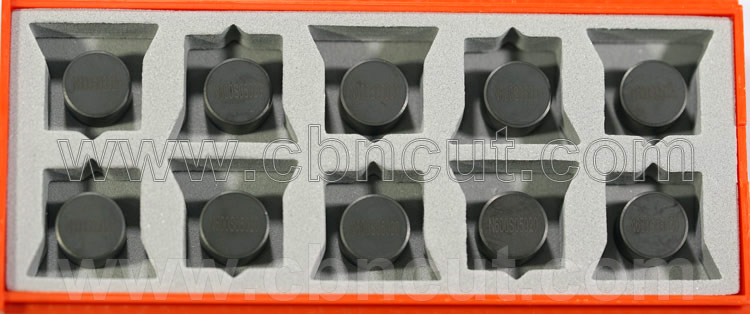

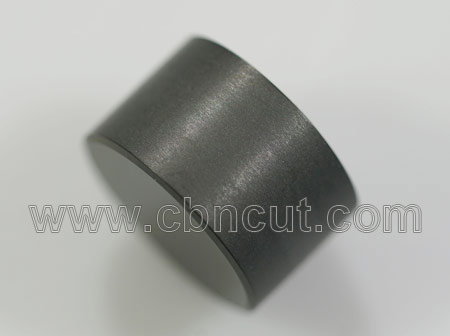

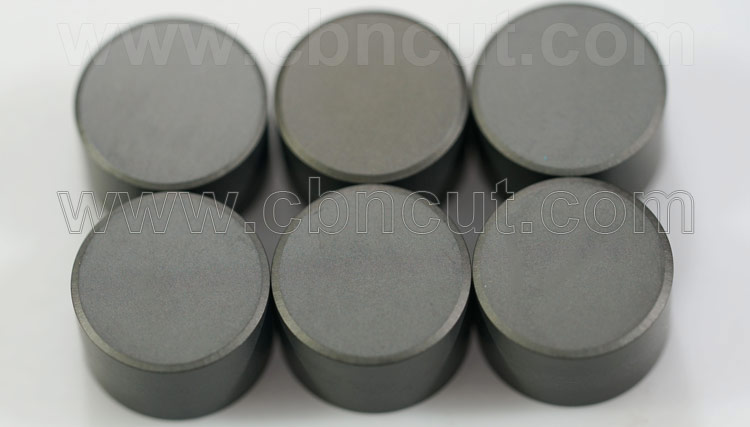

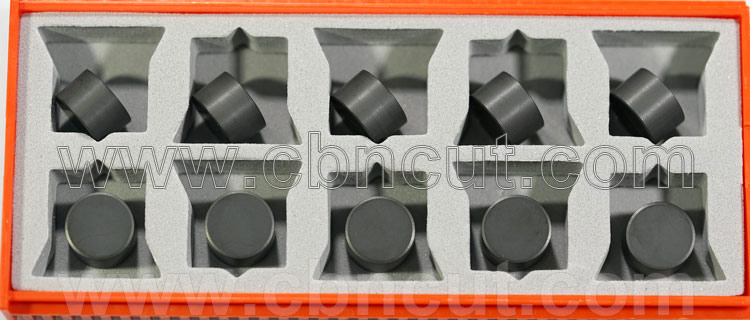

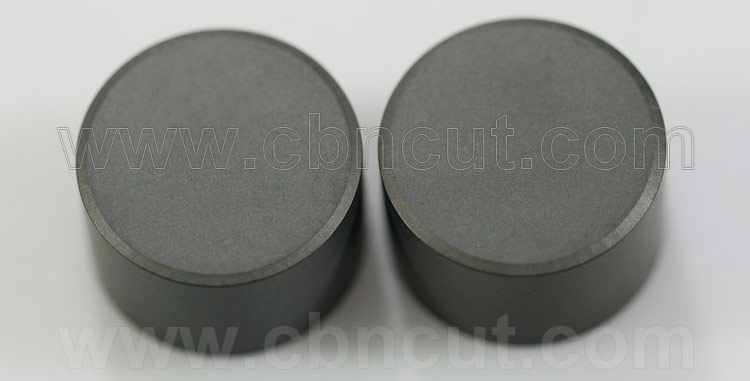

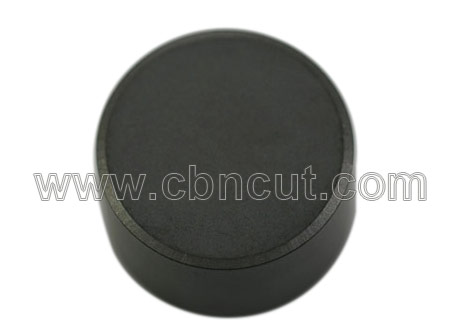

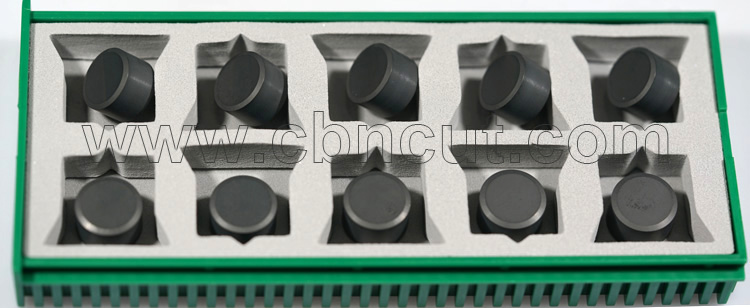

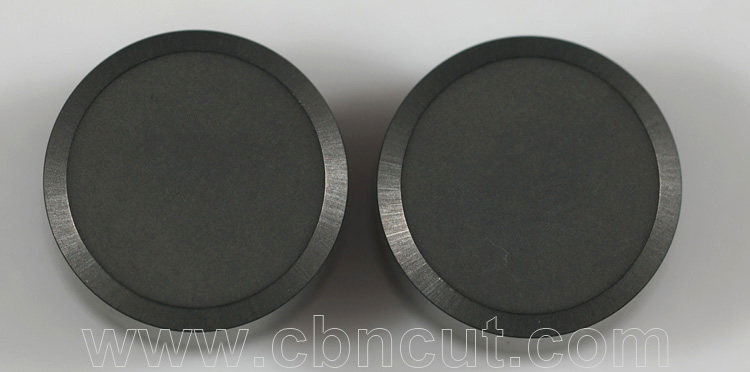

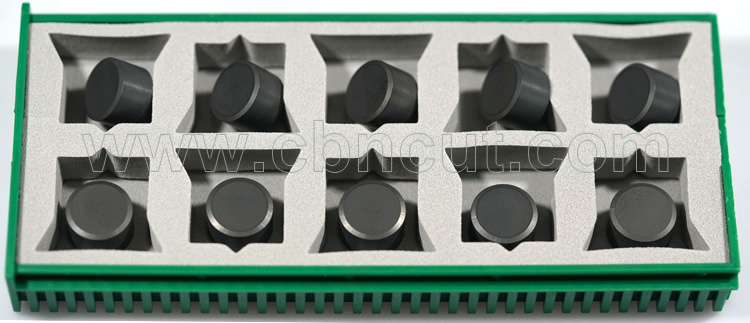

RNGN120700 Solid CBN Insert
RNGN120700 solid CBN inserts used in turning and milling and other machining process,solid CBN inserts suitable for high chrome cast iron roller,HSS roller,alloy steel,pump parts,hardened steel,bearing steel rings,automotive engine,automotice brake disk,brake drum,slurry pump and water pump,alloy machining.
Mainly used CBN inserts code :
RNGN120700S02020 with 0.2mm width chamfer ×20°
RNGN120700S05020 with 0.5mm width chamfer ×20°
RNGN120700S10015 with 0.5mm width chamfer ×15°

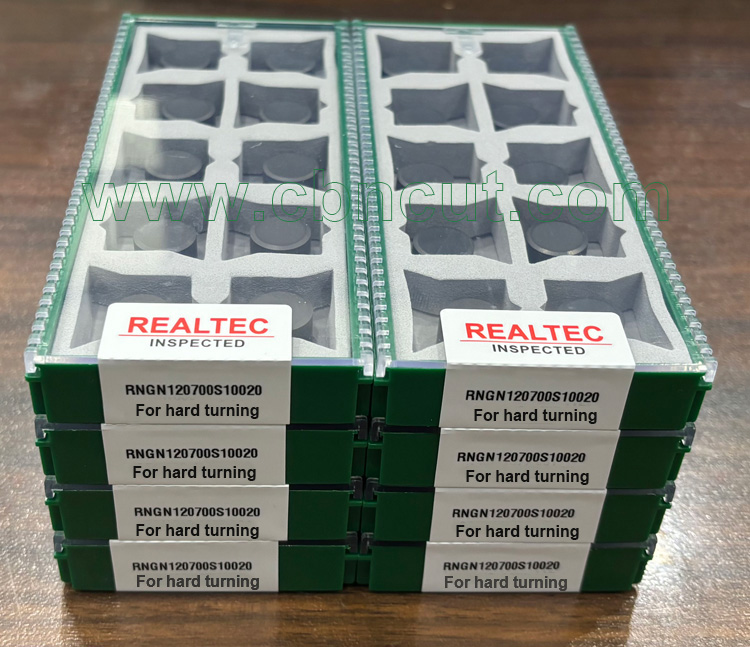

RNGN120700S10020 with 1.0mm width chamfer ×20°
RNGN120700S20010 with 2.0mm width chamfer ×10°
RNGN120700S20015 with 2.0mm width chamfer ×15°
RNMN120700S02020 with 0.2mm width chamfer ×20°
RNMN120700S05020 with 0.5mm width chamfer ×20°
RNMN120700S10015 with 0.5mm width chamfer ×15°
RNMN120700S10020 with 1.0mm width chamfer ×20°
RNMN120700S20010 with 2.0mm width chamfer ×10°
RNMN120700S20015 with 2.0mm width chamfer ×15°
The "G" is a higher tolerance than "M",now we all supply the CBN inserts with "G" tolerance.
CBN edge preparation can be S02020, S05020, S10015, S10020, S15015, S20010 etc.
Double chamfered CBN edge also available to prevent the CBN edge from cracking and breaking.
Other related sizes of RNGN Solid CBN Insert:
RNGN090300 RNGN090400 RNGN120300 RNGN120400 RNGN120700 RNGN150700 RNGN190400 RNGN191000 RNGN200700 RNGN251000
Mainly sizes of solid CBN insert,solid PCBN inserts chart as follows,the other sizes and shapes also available upon request,please feel free to send E-mail to us or chat with us through WhatsApp +86-13875858570,we will send you reply immediately with our solutions,we will also send you free samples for testing if you can send us the insert size you are using or tell us your cutting condition.
Our E-mail address is : sales@cbncut.com
The main RNGN or RNMN solid CBN inserts sizes are as follows,we can make new sizes according to your request like RCGN,RPGN etc.
| ISO | L | IC | S |
| RNGN 060300 | 6.35 | 6.35 | 3.18 |
| RNGN 060400 | 6.35 | 6.35 | 4.76 |
| RNGN 090300 | 9.525 | 9.525 | 3.18 |
| RCGN 090300 | 9.525 | 9.525 | 3.18 |
| RPGN 090300 | 9.525 | 9.525 | 3.18 |
| RNGN 090400 | 9.525 | 9.525 | 4.76 |
| RNGN 120400 | 12.7 | 12.7 | 4.76 |
| RNGN 120600 | 12.7 | 12.7 | 6.35 |
| RNGN 120700 | 12.7 | 12.7 | 7.94 |
| RNGN 150700 | 15.875 | 15.875 | 7.94 |
| RNGN 160700 | 16.0 | 16.0 | 7.94 |
| RNGN 190400 | 19.05 | 19.05 | 4.76 |
| RNGN 190700 | 19.05 | 19.05 | 7.94 |
| RNGN 200700 | 20.0 | 20.0 | 7.94 |
| RNGN 200800 | 20.0 | 20.0 | 8.00 |
| RNGN 201000 | 20.0 | 20.0 | 10.00 |
| RNGN 250600 | 25.4 | 25.4 | 6.35 |
| RNGN 250700 | 25.4 | 25.4 | 7.94 |
| RNGN 250800 | 25.4 | 25.4 | 8.00 |
| RNGN 251000 | 25.4 | 25.4 | 10.00 |
| RNGN 251200 | 25.4 | 25.4 | 12.00 |
| RNGN 301000 | 30.0 | 30.0 | 10.0 |
