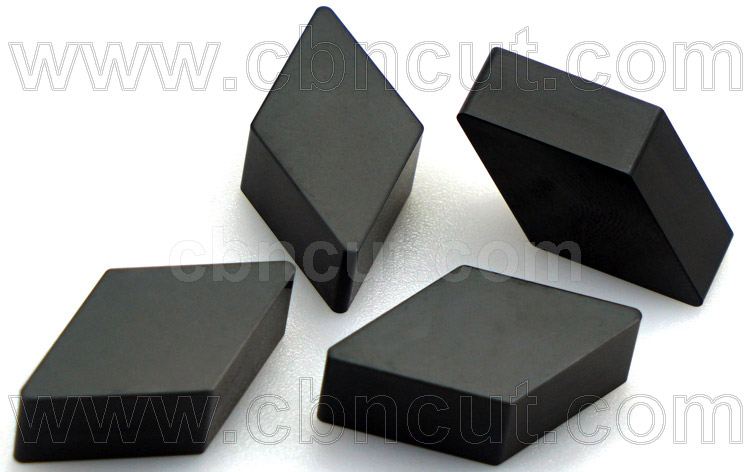

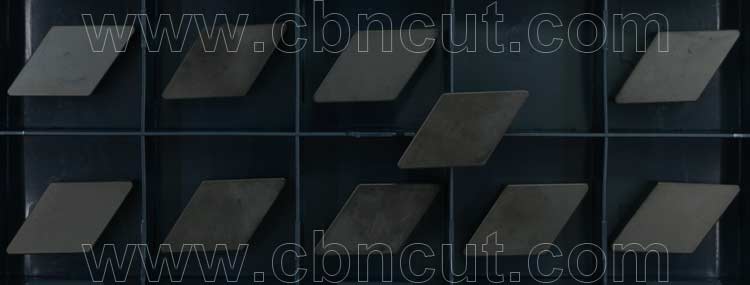

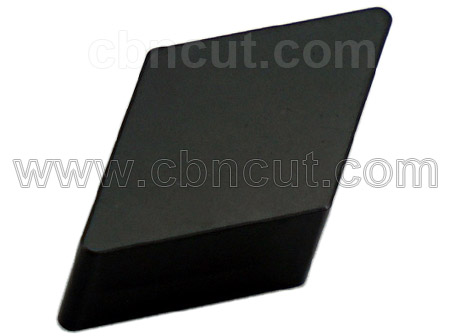

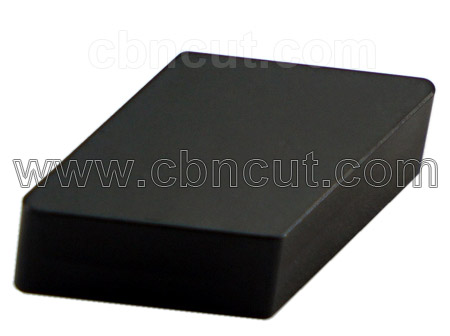

DNGN DNMN Solid CBN Insert
DNGN and DNMN solid cbn inserts for turning cast iron,alloy and steel workpieces,we can supply the following DNGN or DNMN cbn inserts,
G and M are for different tolerance.All inserts grinded and machined from Germany imported CNC machine.
DNGN110406 DNGN110408 DNGN110608 DNGN110612
DNGN150404 DNGN150408 DNGN150708 DNGN150712
DNMN110406 DNMN110408 DNMN110608 DNMN110612
DNMN150404 DNMN150408 DNMN150708 DNMN150712
Other sizes of DNGN and DNMN cbn and pcbn inserts available upon request.

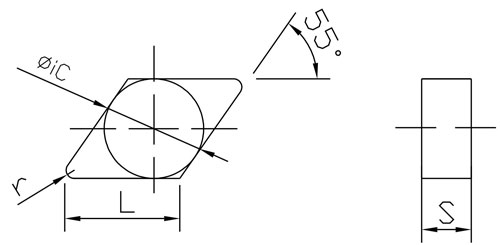

| ISO | L |
Φ IC |
S |
r |
| DNGN110404 | 11.0 | 9.525 | 4.76 | 0.4 |
| DNGN110408 | 11.0 | 9.525 | 4.76 | 0.8 |
| DNGN110412 | 11.0 | 9.525 | 4.76 | 1.2 |
| DNGN110604 | 11.0 | 9.525 | 6.35 | 0.4 |
| DNGN110608 | 11.0 | 9.525 | 6.35 | 0.8 |
| DNGN110612 | 11.0 | 9.525 | 6.35 | 1.2 |
| DNGN150404 | 15.5 | 12.70 | 4.76 | 0.4 |
| DNGN150408 | 15.5 | 12.70 | 4.76 | 0.8 |
| DNGN150412 | 15.5 | 12.70 | 4.76 | 1.2 |
| DNGN150604 | 15.5 | 12.70 | 6.35 | 0.4 |
| DNGN150608 | 15.5 | 12.70 | 6.35 | 0.8 |
| DNGN150612 | 15.5 | 12.70 | 6.35 | 1.2 |
| DNGN150704 | 15.5 | 12.70 | 7.94 | 0.4 |
| DNGN150708 | 15.5 | 12.70 | 7.94 | 0.8 |
| DNGN150712 | 15.5 | 12.70 | 7.94 | 1.2 |
| DNGN | DNMN | Inch |
| DNGN110404 | DNMN110404 | 331 |
| DNGN110408 | DNMN110408 | 332 |
| DNGN110412 | DNMN110412 | 333 |
| DNGN110604 | DNMN110604 | 341 |
| DNGN110608 | DNMN110608 | 342 |
| DNGN110612 | DNMN110612 | 343 |
| DNGN150404 | DNMN150404 | 431 |
| DNGN150408 | DNMN150408 | 432 |
| DNGN150412 | DNMN150412 | 433 |
| DNGN150604 | DNMN150604 | 441 |
| DNGN150608 | DNMN150608 | 442 |
| DNGN150612 | DNMN150612 | 443 |
| DNGN150704 | DNMN150704 | 451 |
| DNGN150708 | DNMN150708 | 452 |
| DNGN150712 | DNMN150712 | 453 |
